Toshiba Part #/MPN: KPM5XRUG3T84
DiscTech Item #: KIO-KPM5XRUG3T84-C9-OE-DEL
- Certified 95Condition Levels Explained
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 3.84TB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2100/2100
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 14th Gen High Density ME4084/ME484, Dell 13th Gen. R730/T630, Dell 13th Gen. MD3x60 High Density Arrays, Dell 13th Gen. FD332, Dell 12th Gen M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620

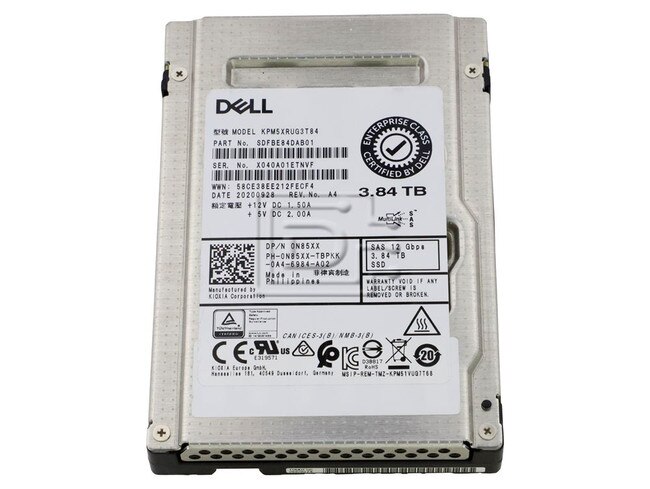

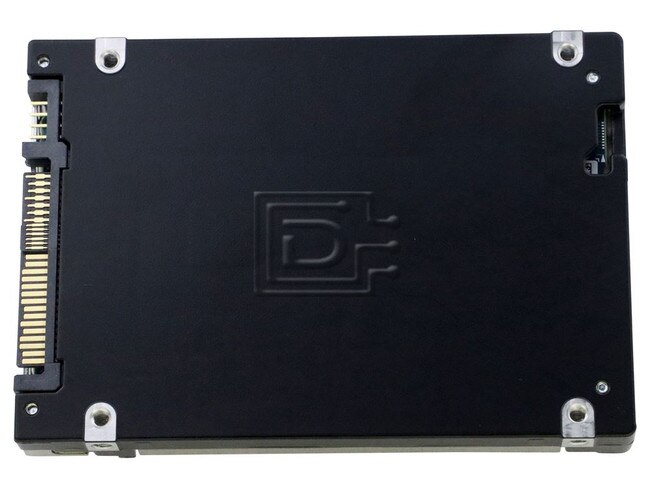

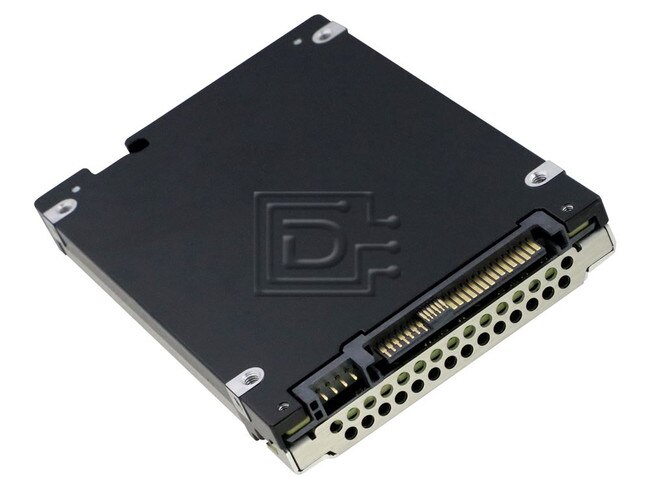

Dell N85XX / KIOXIA Toshiba KPM5XRUG3T84 3.84TB 2.5" 12Gbps Read Intensive 1-DWPD MLC SIE SAS eSSD - Certified 95
PM5-R Series - Enterprise Read Intensive SSD
PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 15.36 TB.
Key Features
- 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
- Capacities from 480 GB to 15.36 TB
- T10 Multi-Stream Write support
- Up to 385 K random read IOPS (4 KiB) in dual port mode
- 2.5 inch form factor, 15 mm Z-height
- 1 DWPD with 100 % Random Write Workload
- Power loss protection and end-to-end data protection, including T10 DIF
- Pin-3 power disable support
- Sanitize Instant Erase (SIE) option
- Self-Encrypting (SED) option
- Self-Encrypting (SED), FIPS 140-2 validated option
- 5-year limited warranty
Key Applications
- Media streaming
- Data warehousing
- Web servers
- Video on demand (VOD)
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Enterprise Read Intensive SSD | |
---|---|
Model Number | KPM5XRUG3T84 |
Basic Specifications | |
Interface | SAS-3.0 |
Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Memory Type | BiCS FLASH TLC |
Formatted Capacity | 3.84TB / 3,840GB |
Sustained 64KiB Sequential Read | 2,100 MiB/s |
Sustained 64KiB Sequential Write | 2,100 MiB/s |
Sustained 4KiB Random Read | 370,000 IOPS |
Sustained 4KiB Random Write | 55,000 IOPS |
Reliability | |
MTTF | 2,500,000 hours |
DWPD | 1 |
Power Requirements | |
Supply Voltage | 5 V ±7 % , 12 V ±7 % |
Power Consumption (Operating) | 3.2W Typ. |
Dimensions | |
Height | 15.0 mm +0 , -0.5 mm |
Width | 69.85 ±0.25 mm |
Length | 100.45 mm Max. |
Weight | 130 g Max. |
Enviromental | |
Temperature (Operating) | 0 to 55 °C |
Relative Humidity ( Operating ) | 5 to 95 % R.H. |
Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: N85XX 0N85XX SDFBE84DAB01
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Certified 95
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
