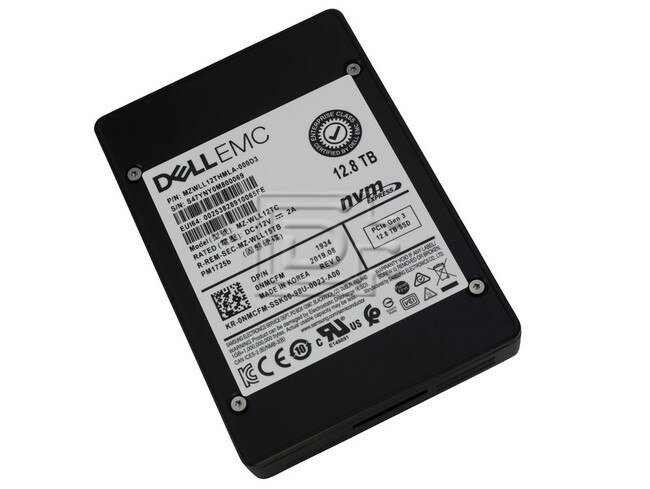

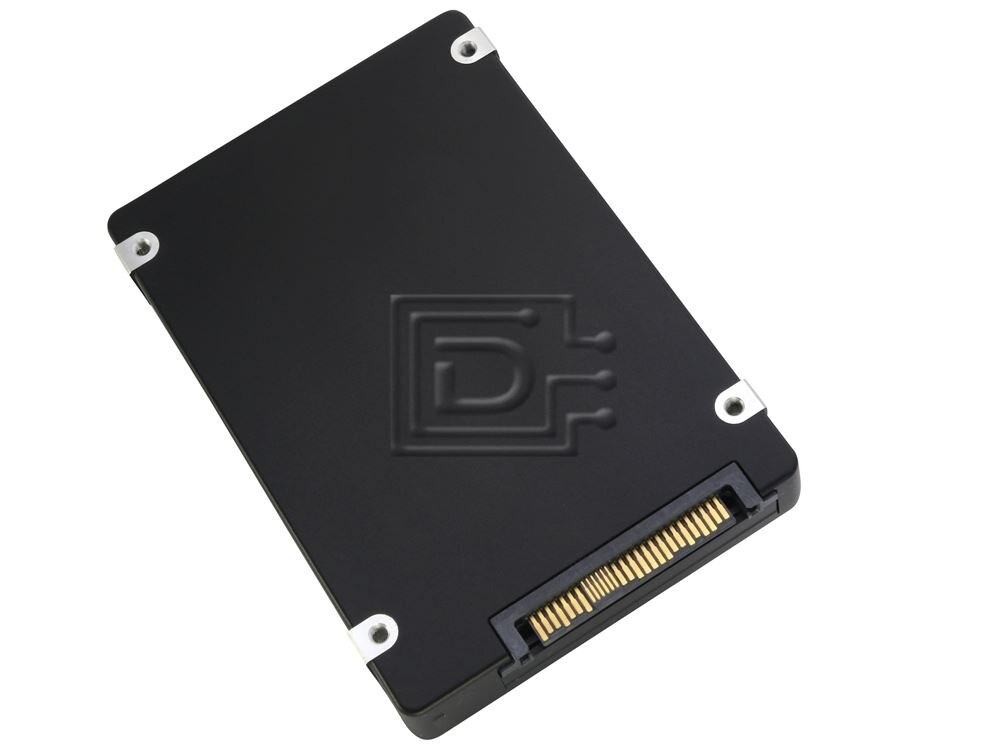

Dell 12.8TB NVME U.2 SSD NMCFM / Samsung PM1725B MZWLL12THMLA-000D3 / MZ-WLL12TC

SAMSUNG Part #/MPN: MZWLL12THMLA-000D3

DiscTech Item #: SAM-MZWLL12THMLA-000D3-BN-OE-DEL


$2,279.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$2,279.00

Enterprise Grade

Capacity: 12.8TB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 3500 / 3100

Average Seek Time: 120 µs / 20 µs

Electrical Interface: PCIe - v3.1 -16GBps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Mixed Use

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell NMCFM  / Samsung PM1725B MZWLL12THMLA-000D3 / MZ-WLL12TC 12.8TB PCIe U.2 SFF 2.5 inch NVME Enterprise Solid State Drive - Brand New OEM Dell NMCFM  / Samsung PM1725B MZWLL12THMLA-000D3 / MZ-WLL12TC 12.8TB PCIe U.2 SFF 2.5 inch NVME Enterprise Solid State Drive

Alt PN: 0NMCFM NMCFM MZ-WLL12TC


Extreme performance from an SSD technology leader

Maximize data transfer with the high-performance, reliable PM1725b
Enterprise environments have unique requirements to ensure that they operate optimally 24/7, 365 days a year. A varied level of performance with low latency is essential. It is also critical that these environments remain stable when processing various read and write workloads. And the most crucial criteria of all are protection from data corruption or loss due to unexpected power outages. Considering each of these factors, IT and data center managers are tasked with finding high performing, dependable memory solutions. Samsung is well-equipped to offer superb enterprise environment SSDs. The drives deliver exceptional performance in multithread applications, such as compute and virtualization, relational databases, and storage. These high performing SSDs also provide outstanding reliability for continual operation regardless of unanticipated power loss. Their reliability also extends to non-interrupt service in case a failure occurs on one of the paths to a port. Using its proven expertise and wealth of experience in cutting-edge SSD technology, Samsung memory solutions helps data centers operate continually at the highest performance levels. Samsung has the added advantage of being the sole manufacturer of all of its SSD components. This advantage helps ensure end-to-end integration, quality assurance and the utmost compatibility.

Samsung PM1725b NVMe SSD delivers:
  • Exceptional value: The PM1725b utilizes Samsung V-NAND flash memory, which features a unique design that stacks 48 layers on top of another. It also employs cost-effective TLC (triple-level cell) flash memory, which delivers higher reliability than MLC (multi-level cell) planar NAND flash memory SSDs. With this architecture, the PM1725b can deliver enterprise-level performance economically.
  • Consistently high performance: The PM1725b HHHL (half-height, half-length) card delivers a wide bandwidth of up to 6,200/2,600 MB/s sequential R/W speeds respectively, using under 23 W of power. It delivers up to 1,000K and 180K IOPS for random 4KB read and write, respectively. The PM1725b 2.5-inch SSD delivers a bandwidth of up to 3,300/3,000 MB/s for sequential R/W and up to 800K/160K IOPS for random 4KB R/W, respectively. The PM1725a delivers QoS (quality of service, 99%) of 160μs and 100μs for random 4KB writes. Outstanding reliability: Even though the PM1725b employs a TLC V-NAND flash memory, it boasts 5 DWPD (drive writes per day) for 5 years. This rate translates to writing a total of 32 TB each day during that time, which means users can write 6,400 files of 5 GB-equivalent data every day. This level of reliability is more than sufficient for enterprise storage systems that have to perform ultrafast transmissions of large amounts of data.
  • High density: By fitting more memory into a V-NAND chip, it provides significantly more capacities of up to 6.4 TB in both the PM1725b 2.5-inch and HHHL card SSDs. Depending on your storage requirements and applications, 800 GB, 1.6TB, 3.2 TB and 6.4 TB capacities are available.
Optimized for enterprise environments
The Samsung PM1725b SSD is optimized to excel in virtually any data center scenario. This enterprise-level, ultra-high performance SSD provides unsurpassed random read performance and is particularly suitable for read-intensive data center applications. When compared with other standardized Samsung SSDs, the PM1725b SSD provides the highest random read IOPS performance. The PM1725b is equipped with Samsung 3rd-generation TLC V-NAND technology. This technology eliminates performance and reliability issues that result from capacity limitations found in planar NAND technologies. The Samsung V-NAND technology delivers reliable and consistent performance at lower costs for today's demanding data-centric world.

Compatibility:

This drive is compatible with servers and arrays that accept 2.5” 15mm U.2 SFF PCIe NVMe drives

Samsung® SSD PM1725B Series
Model Number MZWLL12THMLA-000D3
Essentials
Product CollectionSamsung® SSD PM1725B Series
Physical dimensionsSFF 2.5 15mm
Capacity12.8TB
StatusMass Production
Launch DateQ2'18
Lithography TypeSamsung TLC 3D V-NAND
Use ConditionsServer/Enterprise
PERFORMANCE
Sequential Read(up to) 3500 MB/s
Sequential Write(up to) 3100 MB/s
Random Read(100% Span) 800k IOPS
Random Write(100% Span) 110k IOPS
LatencyRead 120 µs
LatencyWrite 20 µs
Power - Active21W
Power - Idle7.5W
RELIABILITY
Vibration - Operating2.17GRMS
Vibration - Non-Operating3.13GRMS
Shock (Operating and Non-Operating1000G
Operating Temperature Range0°C to 55°C
Endurance Rating (Lifetime Writes)12.25 PBW / 12,250 TBW
Mean Time Between Failures (MTBF) 2 million hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10-17 bits read
PACKAGE SPECIFICATIONS
Weight310g
Form FactorU.2 15mm
InterfacePCIe 3.0 x 4, NVMe


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0NMCFM NMCFM MZ-WLL12TC

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
