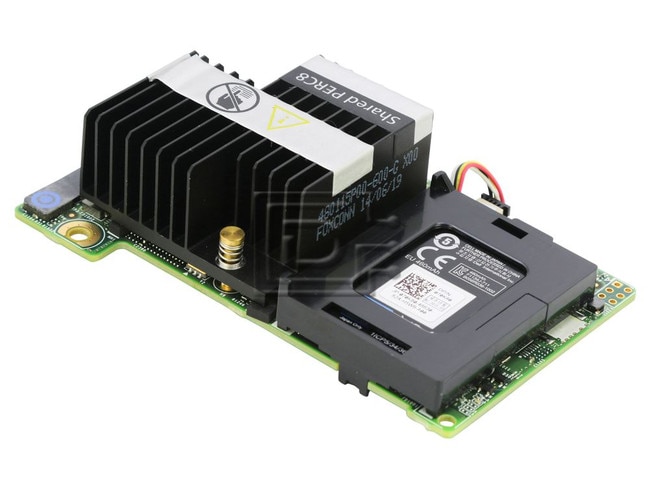

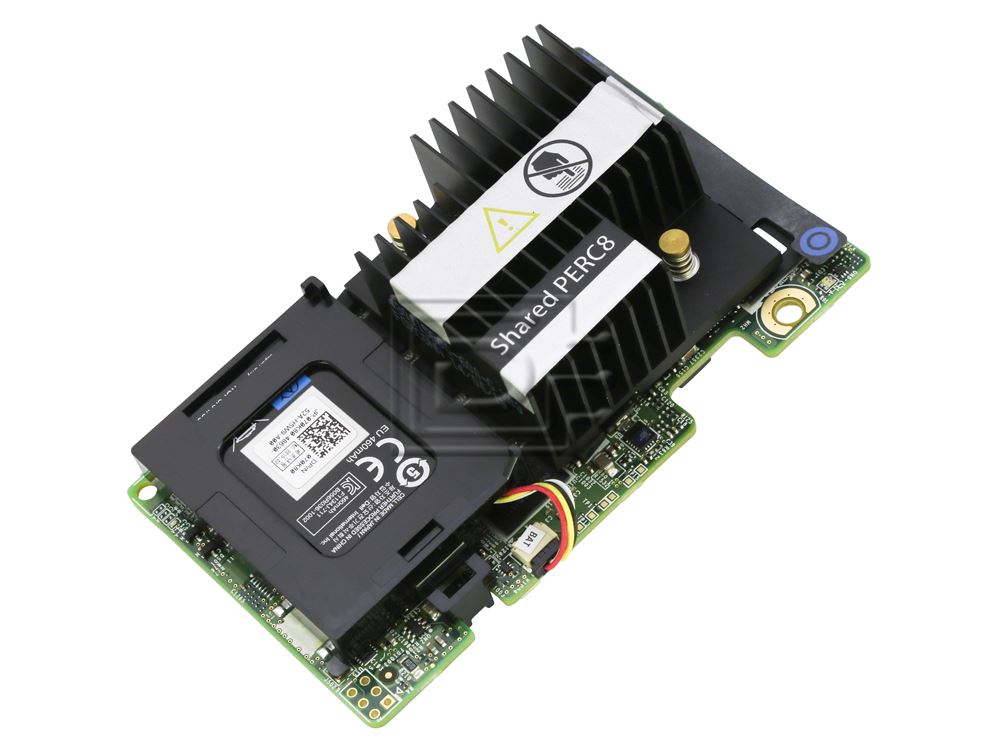

Dell P3WV4 PERC8 H710P Mini Mono 1GB NV Cache Integrated SAS RAID Controller for VRTX Systems

Dell Part #/MPN: P3WV4

DiscTech Item #: DEL-P3WV4-NP-OE

$114.99
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$114.99

Interface Types: SAS Serial Attached SCSI

On-Board Cache: 1GB

Compatible Systems: Dell VRTX

Dell P3WV4 PERC8 H710P Mini Mono 1GB NV Cache Integrated SAS RAID Controller for VRTX Systems - New Pull

Dell P3WV4 PERC8 H710P Mini Mono 1GB NV Cache Integrated SAS RAID Controller for VRTX Systems - New Pull

Alt DPNs: 0P3WV4

Highlights

  • Offers dual PPC 800 MHz cores
  • Supports RAID Levels 0/1/10/5/50/6/60

Overview
The PERC H710P a mid-range Integrated RAID solution based on LSI´s Thunderbolt (2208) ROC from Dell™ , which offers dual PPC 800 MHz cores , along with 6Gb/s SAS. The PERC H710P adapter comes with 1 GB of integrated 1333 MHz DDR3 cache for quick storage. The PERC H710P operates on PERC 8.0 FW Stack and supports RAID Levels 0/1/10/5/50/6/60.

Specifications
Device Type Storage controller (RAID)
Interface SAS 6Gb/s
Data Transfer Rate 600 MBps
Buffer Size 1 GB
Supported Devices Hard drive, disk array (RAID), solid state drive
Channel Qty 8
Max Storage Devices Qty 32
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
System Requirements Microsoft Windows Server 2008 R2 SP2
Red Hat Enterprise Linux 6.1
VMware ESX 4.1
VMware ESXi 4.1
Red Hat Enterprise Linux 5.7
SuSE Linux Enterprise Server 10 SP4
SuSE Linux Enterprise Server 11 SP2
Dimensions (WxDxH) 6.6 in x 2.5 in

Alternate MPNs: 0P3WV4

Weight: 2 lb

Warranty: 1 Year DiscTech
