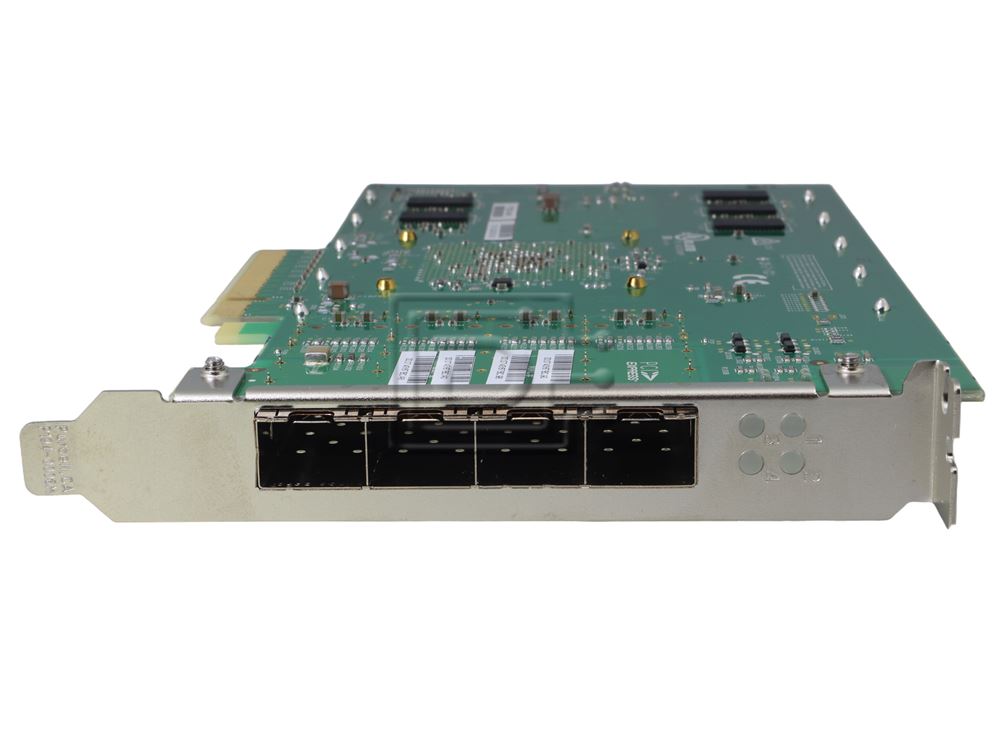

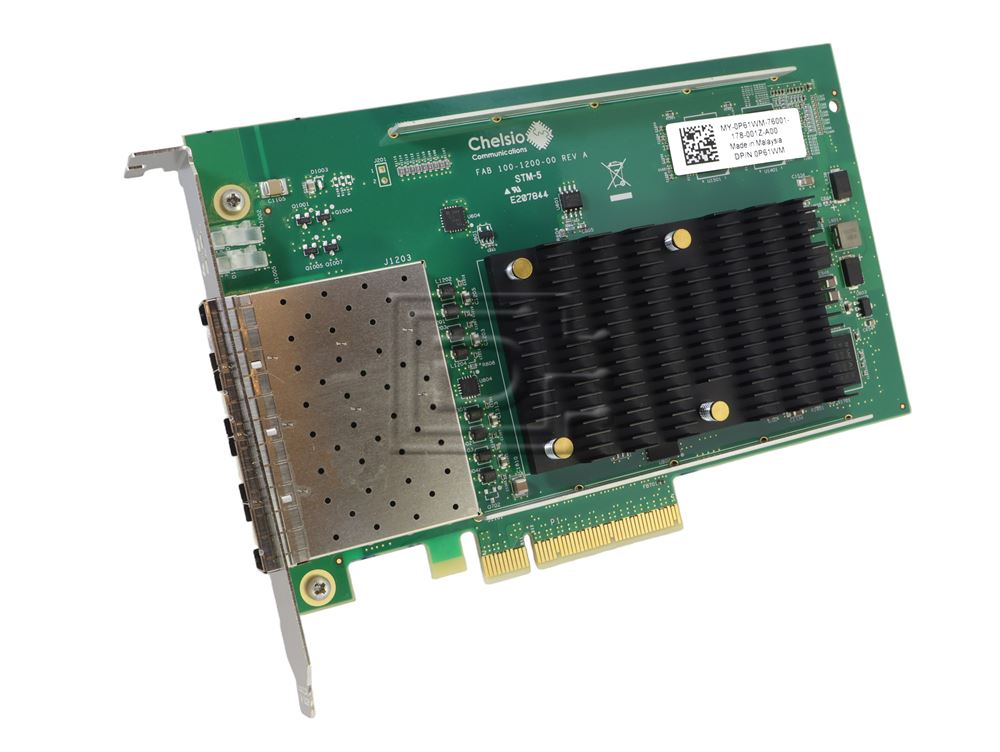

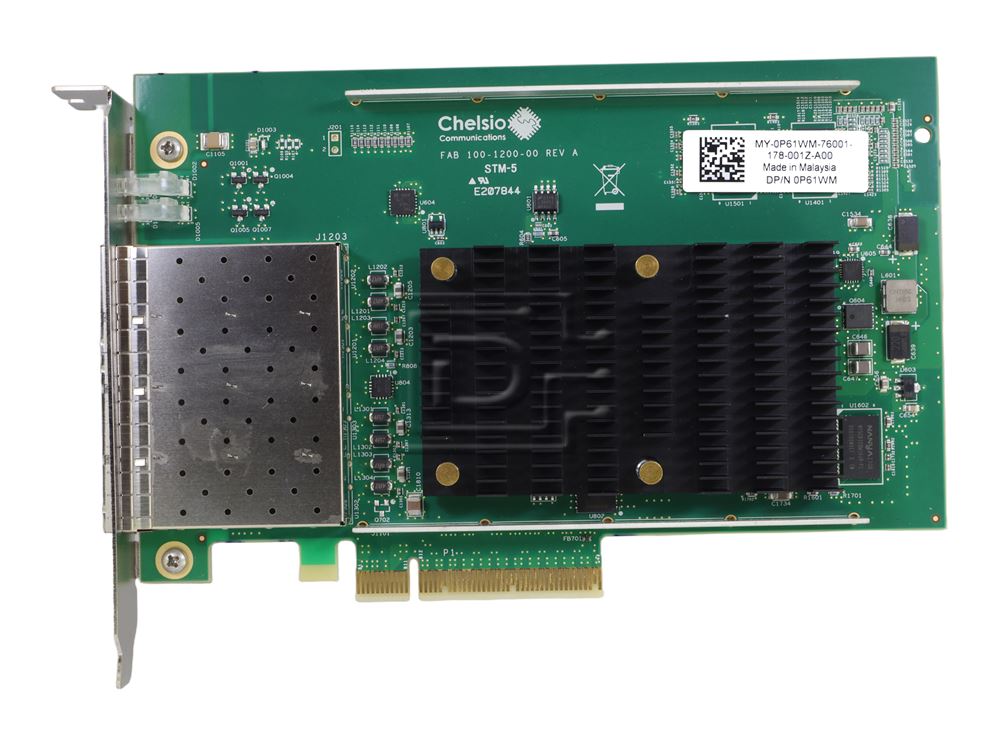

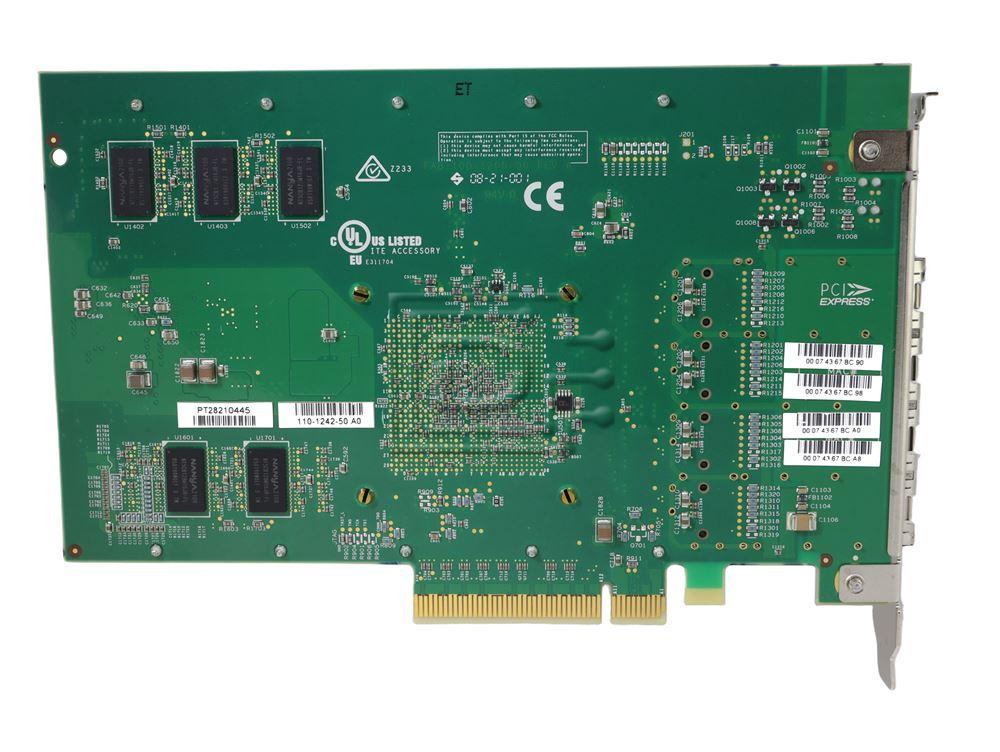

Dell P61WM Chelsio T540-CR 100-1200-00 Quad-Port 10Gb SFP+ Converged Network Adapter Card

Generic T540-CR P61WM 0P61WM 100-1200-00 PCIe Express 10GbE Intel Server Adapter Image 1 image

In Stock:29
Need more?
1 Year DiscTechWarranty

$199.00

Interface Types:	PCIe
Electrical Interface:	Ethernet 10Gigabit - 10Gbps

Description

Dell P61WM Chelsio T540-CR Quad-Port 10Gb SFP+ PCIe Converged Network Adapter Card - Brand New OEM

Dell P61WM Quad-Port 10Gb SFP+ Network Card Chelsio T540-CR 100-1200-00 - Brand New OEM

The Dell P61WM features the Chelsio T540-CR controller and is a high-performance Quad-Port 10Gb SFP+ Converged Network Adapter (CNA) designed for enterprise-class servers. Optimized for use in virtualized, cloud, and storage environments, it offers robust offload capabilities including TCP/IP, iSCSI, and FCoE, significantly reducing CPU overhead and improving network efficiency.

This adapter is ideal for network functions virtualization (NFV) and software-defined networking (SDN) deployments, delivering exceptional performance across diverse workloads such as virtualization, SAN/NAS access, and high-throughput data center applications.

Chelsio is a recognized leader in high-speed Ethernet solutions, trusted by data center, cloud, and telecom providers worldwide.

Key Features

Quad-Port 10Gb SFP+ network interface

Low-profile PCIe Gen3 x8 form factor

Full TCP/IP, iSCSI, FCoE, and TOE offload engine

Compatible with a wide range of Dell PowerEdge servers

Ideal for virtualization, storage networking, and cloud infrastructure

DPN: P61WM / 0P61WM
Manufacturer PN: 100-1200-00

Compatibility

This adapter is compatible with any server having a vacant PCIe x8 or larger slot. Low‑profile bracket included (full‑height optional).

This product is compatible with the following systems:

PowerEdge C4130, C4140, C6320, C6420, C6525
PowerEdge FC430, FC630, FC640, FC830
PowerEdge R330, R340, R440, R540, R630, R730, R730xd, R730xd XL, R830, R840, R930, R940xa
PowerEdge R6415, R6515, R6525, R7415, R7425, R7515
PowerEdge R740, R740xd, R740xd 2, R830, XR2
PowerVault NX440

Specifications

Dell P61WM Quad-Port 10GbE SFP+ CNA Network Card (Chelsio T540-CR)
Model Number	P61WM / Chelsio T540-CR / P/N 100-1200-00
Form Factor	Low Profile PCIe Bracket: Low-profile installed (full-height optional)
Bus Interface	PCI Express Gen3 x8 Backward-compatible with Gen1
Ports	2x SFP+ 10GbE
Connector Type	SFP+ cages (requires SFP+ modules or DAC cables)
Data Rate	10Gbps per port Full duplex
Controller	Chelsio T540-CR ASIC
Supported Protocols	TCP/IP, UDP iSCSI, FCoE IPv4, IPv6
Offload Features	TOE (TCP Offload Engine) iSCSI Offload FCoE Offload RDMA over Ethernet
Virtualization Support	SR-IOV (Single Root I/O Virtualization) NPAR (NIC Partitioning) VMware NetQueue
Operating Systems	Windows Server Linux (RHEL, CentOS, Ubuntu) VMware ESXi
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Typical Power Consumption	~9W
Dimensions	167.6 mm x 68.9 mm (6.6 in x 2.7 in)
Compliance	RoHS, FCC, CE, UL PCI-SIG
EMI Standards	EN55022 Class A EN55024
Cabling Options	SFP+ SR / LR optical modules Direct Attach Copper (DAC) Active Optical Cables (AOC)
Max Cable Distance	SR: up to 300m on OM3 MMF LR: up to 10km on SMF DAC: up to 7m (passive)
Use Cases	Data Center Networking Server-to-SAN Connectivity Virtualized Environments iSCSI Storage Networking

Click here to view the manufacturer's item description/brochure

Alternate MPNs: P61WM 0P61WM 100-1200-00

Weight: 0.5 lb

Warranty: 1 Year DiscTech
