ADAPTEC Part #/MPN: 2200S
DiscTech Item #: ADP-2200S-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: SCSI 68pin HD68, SCSI VHDCI, PCI-X
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 64MB
Bays/Ports/Slots: 1

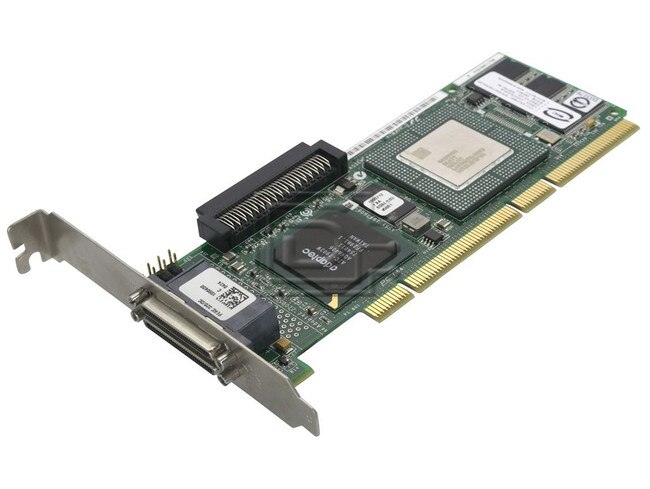

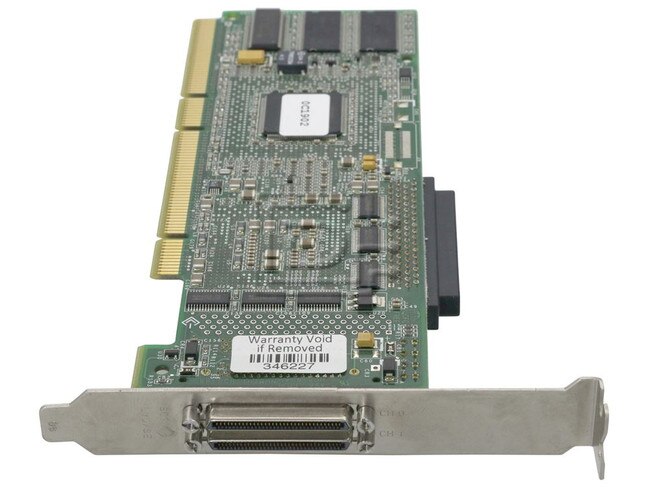

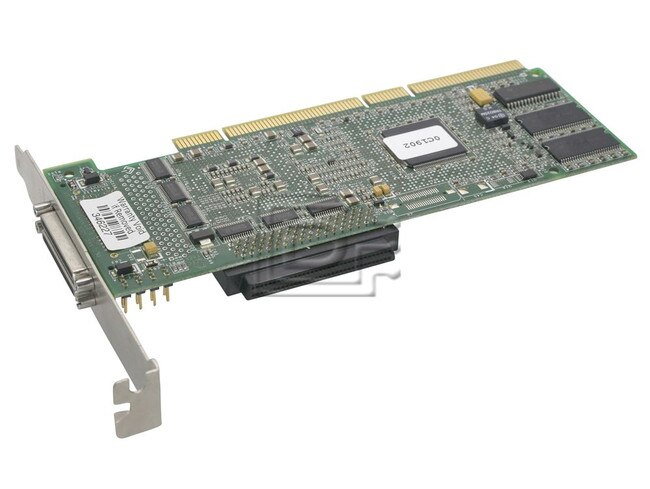

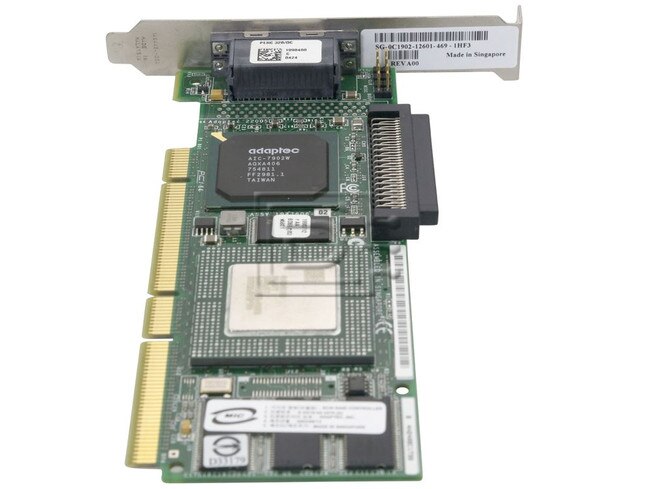

Dell PERC 320/DC / Adaptec 2200S U320 LVD Dual Channel PCI-X SCSI RAID Controller - Refurbished
Dell PERC 320/DC / Adaptec 2200S U320 LVD Dual Channel PCI-X SCSI RAID Controller - Refurbished
Dell OEM PERC/320 Version with 1x Internal 68pin SCSI connector and 2x VHDCI external connectors.
Low-profile dual-channel Adaptec SCSI RAID 2200S is a 64-bit/66MHz Ultra320 RAID controller designed for mid-range and high-density servers. Advanced features include Adaptec's optimized disk utilization, Online Capacity Expansion, RAID Level Migration and full OS support. Adaptec Storage Manager provides password-protected, remotely managed software management. The card supports RAID 0, 1, 10, 5, 50, JBOD and accommodates an optionally available battery backup module (ABM-300) for 72-hour cache memory protection.
Alternate Part#: N5694 / 0N5694 / C1902 / 0C1902 / 00X511 / 0X511 / AIC-7902W
Compatibility: This Adaptec RAID controller will operate in any PC system with available PCI-X slot. (64bit PCI)
| Supported Operating Systems | |
| Microsoft Windows Novell NetWare Red Hat Linux SuSE Linux SCO Openserver SCO UnixWare Caldera Open Unix | |
| Dell PERC 320/DC - Adaptec 2200S Supported Operating Systems | |
| Microsoft Windows Novell NetWare Red Hat Linux SuSE Linux SCO Openserver SCO UnixWare Caldera Open Unix | |
| Benefits | |
| Low-profile MD2 design ideal high-density server & workstation solution, 64-bit/66 MHz PCI | |
| Key Differentiators | |
| Customer Needs | |
| Ideal for entry-level to mid-range and high-density servers and workstations requiring up to 30 disk drives | |
| System Environment | |
| Mid-range SCSI servers and workstations, conventional and rackmount | |
| Cache Memory | |
| 64 MByte (onboard) | |
| RAID Levels | |
| 0, 1, 10, 5, 50, JBOD | |
| Key RAID Features | |
| Optimized disk utilization Online RAID Level Migration Online capacity expansion Immediate RAID availability (background initialization) S.M.A.R.T. support SES/SAF-TE support | |
| Number of devices | |
| Up to 30 SCSI devices (15 per channel) | |
Bus System Interface Type | |
| 64-bit/66MHz PCI | |
| External Connectors | |
| Two 68-pin VHDCI | |
| Internal Connectors | |
| One 68-pin high-density | |
| Data Transfer Rate | |
| Up to 320 MB/sec per channel | |
| System Requirements | |
| Available 5 volt or 3.3 volt, PCI 2.2 compliant PCI slot | |
Device Support
Up to 30 SCSI devices
Board Dimensions
Low-profile card: 2.5 in. H x 6.6 in. L
6.4 cm H x 16.8 cm L
Power Consumption
4 amps @ +5V
Operating Temperature
0 C to 55 C
Click here to view the manufacturer's item description/brochure
Alternate MPNs: N5694 0N5694 C1902 0C1902 00X511 0X511 AIC-7902W
Weight: 2 lb
