Dell Part #/MPN: 342-4047
DiscTech Item #: DEL-342-4047-NP-OE
Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

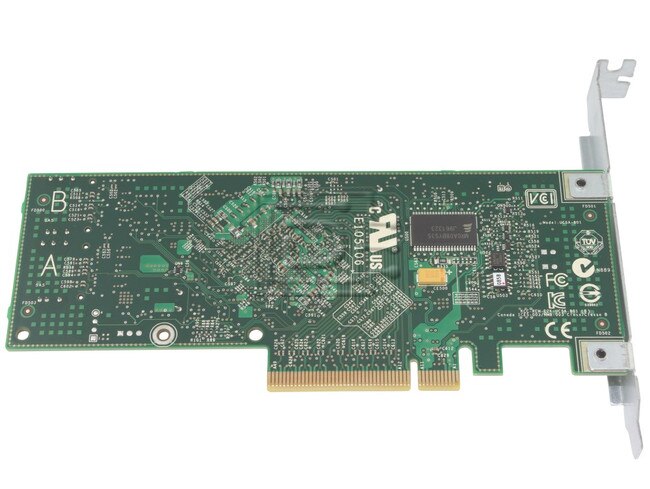

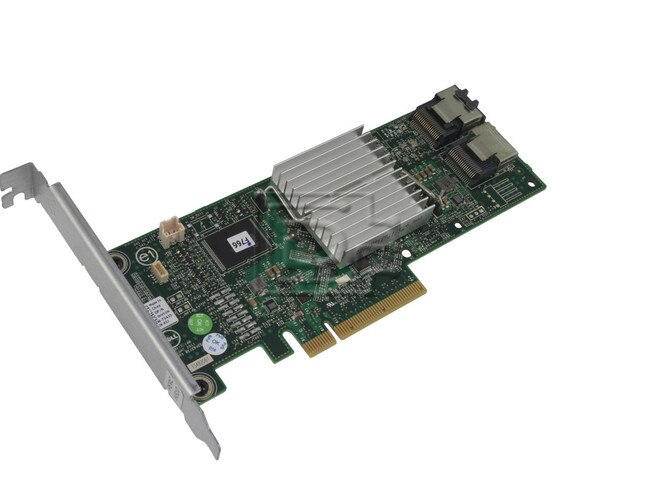

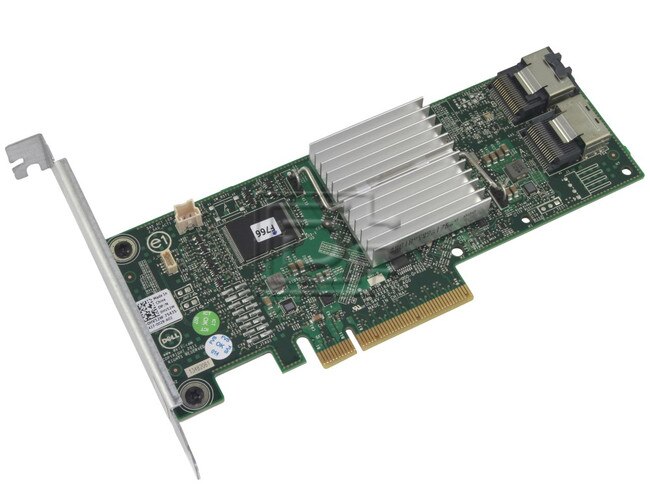

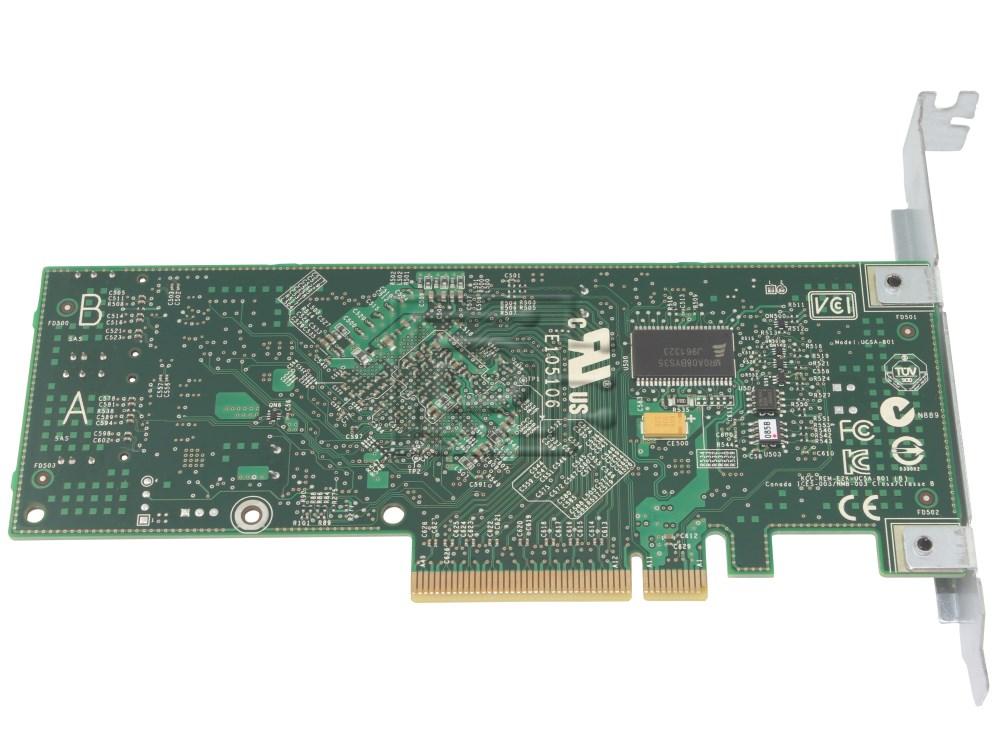

Dell PERC H310 Adapter HV52W 6.0Gb/s SAS / SATA RAID Controller - New Pull
This controller is designed to be installed in an open PCI-E slot. This is not for the dedicated internal storage slot.
The DellTMPERC (PowerEdgeTM RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management—providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.
Dell H310 RAID controller cards offer a straight-forward solution that includes essential RAID levels and uncomplicated configuration options. In addition, these cards connect to SATA and SAS hard disk drives and solid state drives, allowing for tiered storage that optimizes cost and performance
A unique feature of the PERC H310 is its ability to seamlessly migrate to other PERC product lines. Simply plug in a new controller to recognize and import the existing array without any reconfiguration. Plus, Dell OpenManage™ Storage Services (OMSS) provides a consistent user interface to manage any PowerEdge SATA or SAS arrays.
6Gb/s SAS performance advantage
6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS and 3Gb/s SATA hard drives. Regardless of the drive speed, 6Gb/s PowerEdge RAID controllers deliver significant performance
improvements in both read and write applications as compared to their 3Gb/s predecessors.
DPNs: 0HV52W HV52W 3P0R3 03P0R3 MJVMK 0MJVMK R1DNH 0R1DNH
Compatible with the Dell Poweredge servers with PCIe slot
|Host Bus Type||8-lane PCI Express 2.0|
|Dell Series||PERC H310|
|Device Type||Serial Attached SCSI Adapter Raid Controller Card|
|Connectors||2 Internal x4 mini-SAS SFF8087|
|RAID Level||RAID 0, RAID 1, RAID 5, RAID 10, RAID 50,|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0HV52W HV52W 3P0R3 03P0R3 R1DNH 0R1DNH
Weight: 1 lb
