Dell Part #/MPN: 342-1609
DiscTech Item #: DEL-342-1609-NP-OE
Interface Types: SAS Serial Attached SCSI, SATA, PCIe
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 512MB

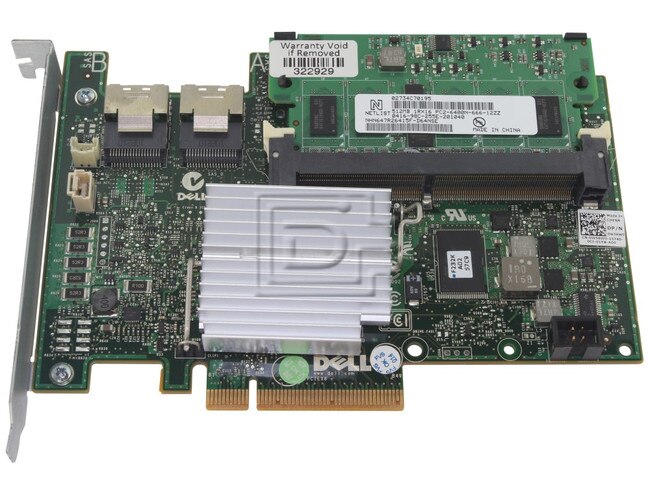

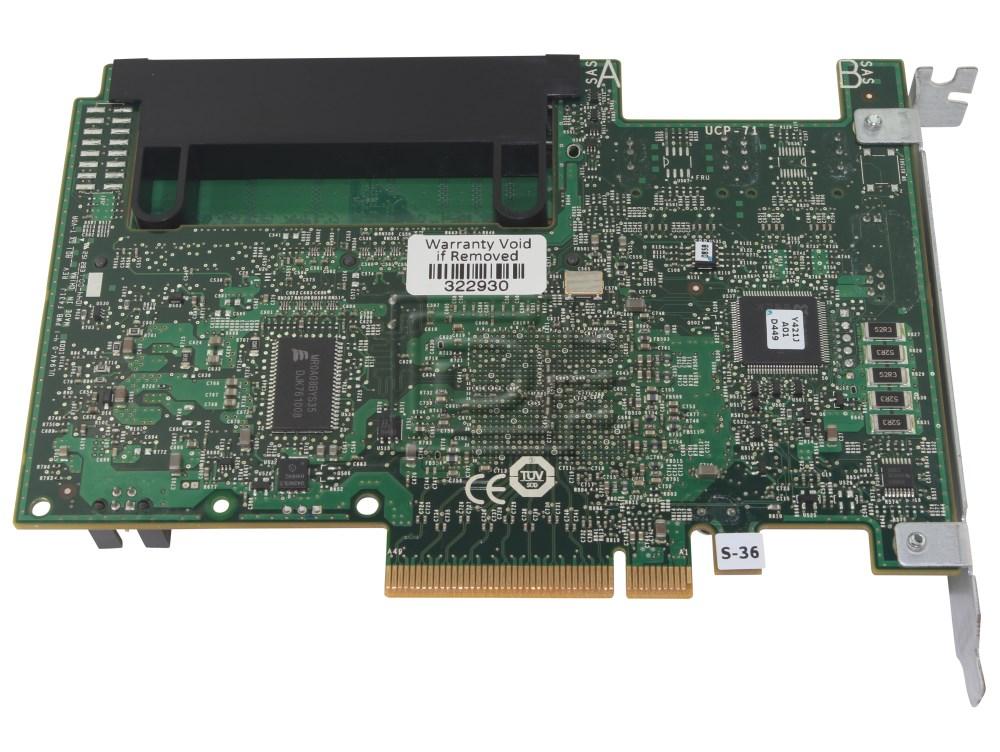

Dell PERC H700 342-1609 / W56W0 / N0G12 / 450-14709 SAS Adapter RAID Controller 512MB NV cache - New Pull
The DellTMPERC (PowerEdgeTM RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management—providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.
This controller does not include the RAID cache battery which is sold as a separate part. You may also need to also order a RAID battery for this unit. Dell battery KR174 or U8735. See Related items below.
Increased IOPS performance with Cut-Through IO & SSDs
Adds support for Self Encrypting Drives (SED)
Adds 512MB Non-Volatile (NV) Cache to to PERC H700
Compatible with the Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605, R310, T310, R320, R410, R415, T410, R510, R515, R520, T610, T620, R710, T710, R720 Servers
Compatible with the Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605, R310, T310, R320, R410, R415, T410, R510, R515, R520, R610, T610, T620, R710, T710, R720 Servers or any Server/Workstation with a PCIe x8 slot.
|Interface||6Gb (SAS 2.0)|
|Bus support||x8 PCIe 2.0|
|Ports / Channels||8 (2 x4)|
|Int/Ext Connectors||2 internal|
|Cache Memory||512MB BBU 512MB Non-Volatile Cache (800 MHz DDR2)|
|RAID Levels||0, 1, 5, 6, 10, 50, 60|
|Max physical drives in Large RAID volume (R10, R50, R60)||16|
|HDD Support||SAS and SATA|
|SSD Support||SAS and SATA|
|SED Support||Yes (Local Key Management)|
|I/O Load Balancing||No|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: W56W0 N0G12 0W56W0 0N0G12 450-14709
Weight: 2 lb
Warranty: 1 Year DiscTech
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
