Dell PERC H710 SAS RAID PCI-e Controller 512MB Cache

(0) No Reviews Yet

Dell Part #/MPN: 342-4203

DiscTech Item #: DEL-342-4203-NP-OE


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 8

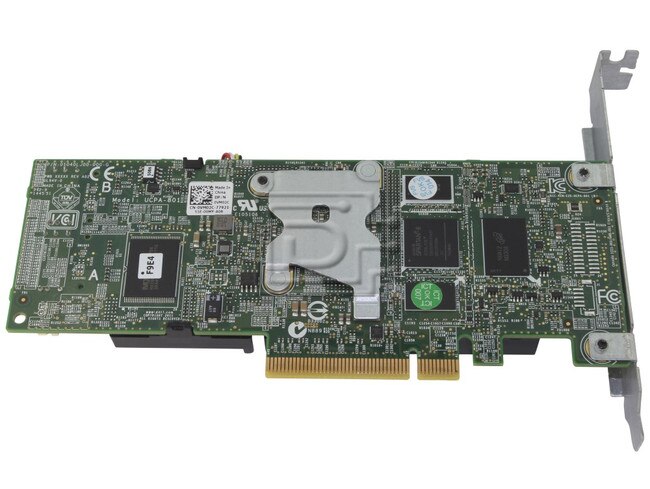

Dell PERC H710 342-4203 / VM02C / 8PX3M SAS RAID Controller 512MB NV Cache PCI-e - New Pull

Dell PowerEdge RAID Controller H710

An eight-port, 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H710 provides high server RAID performance for database and multimedia applications.

As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell™ PowerEdge™ RAID Controller cards, built on the LSISA2208 dual-core PowerPC RAID-on-Chip (ROC), offer unmatched I/O performance for database applications and streaming digital media environments. The PowerEdge RAID Controller (PERC) H710, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 512 MB cache memory. You can deploy the PERC H710 in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these extgeneration PERCs exploit the potential of solidstate drives (SSDs) for unsurpassed performance and enterprise-class reliability.

Advanced software options
The Dell family of 6Gb/s PowerEdge RAID Controllers is designed to support advanced software options for the Dell PowerEdge server family with enhanced performance and data protection capabilities. These new software options can help you to address key business challenges while helping to deliver a higher return on your IT investments. The PERCs and Dell’s Cut Through I/O (CTIO) feature boost transactional I/O performance of both rotational hard-drive and SSD configurations.

Enterprise data protection
Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60 and NVCache, further strengthen the data-protection capabilities of the PERC H710. Dell’s NVCache technology backs up the data to non-volatile storage in a powerloss event, and can store it safely for a nearly unlimited period of time.

Intuitive RAID management utility
Dell OpenManage™ Storage Services (OMSS) provides the essential tools to efficiently manage PERC products, whether deployed in an enterprise or small business. Dell offers a collection of applications and tools, including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allow administrators to adjust SAS or SATA topology views from the system host, controller and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.

Alternate Part Numbers: 342-4203 / VM02C / 0VM02C / 8PX3M / 08PX3M / 0GJKT


PowerEdge R720XDPowerEdge R720PowerEdge R620PowerEdge R520
PowerEdge R420PowerEdge R320PowerEdge C6220PowerEdge R820
PowerEdge T320PowerEdge T420PowerEdge T620PowerVault NX3200

PCI-e x8 slot or x16 required

Cache / Buffer Size512 MB
Interface TypeSAS 6.0Gbps
Dell Series 7PERC H710
Device TypeSerial Attached SCSI Integrated Raid Controller Card
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
SAS controllerLSI SAS 2208 dual-core PowerPC ROC
Host bus type8-lane, PCI Express 2.0 Compliant Bus
Device supportUp to 32 (SAS, SATA)
ConnectorsTwo internal mini-SAS SFF8087
Operating systemsMicrosoft® Windows Server® 2008 R2 SP2
Red Hat® Enterprise Linux® 5.7
Red Hat® Enterprise Linux® 6.1
SUSE® Linux Enterprise Server 10 SP4
SUSE® Linux Enterprise Server 11 SP2

Virtualization options:
VMware® ESX/ESXi 4.1
VMware® 5.0 U1
Key RAID data protection featuresRAID levels 0, 1, 5, 6
RAID spans 10, 50, 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after power loss during array rebuild or reconstruction/RLM
Consistency check for background data integrity
SED drive support
Load balancing
Physical disk power management (Dimmer Switch™)
Fast initialization for quick array setup
Configurable stripe size up to 1MB
SSD support
Patrol read for media scanning and repairing
Up to 64 logical drive and 64TB LUN support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T. support
Global and dedicated hot spare with revertible hot-spare
support: automatic rebuild, enclosure affinity, emergency SATA
hot spare for SAS arrays
Enclosure management: SES (inband), SGPIO (sideband)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: VM02C 0VM02C 8PX3M 08PX3M 0GJKT 00GJKT

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
