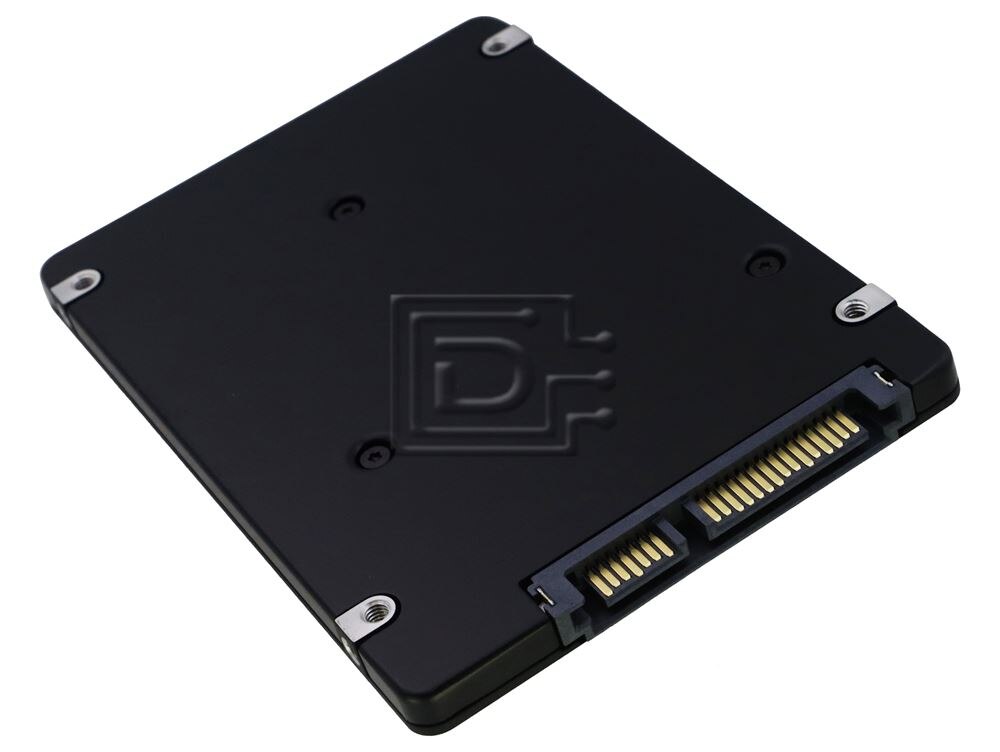

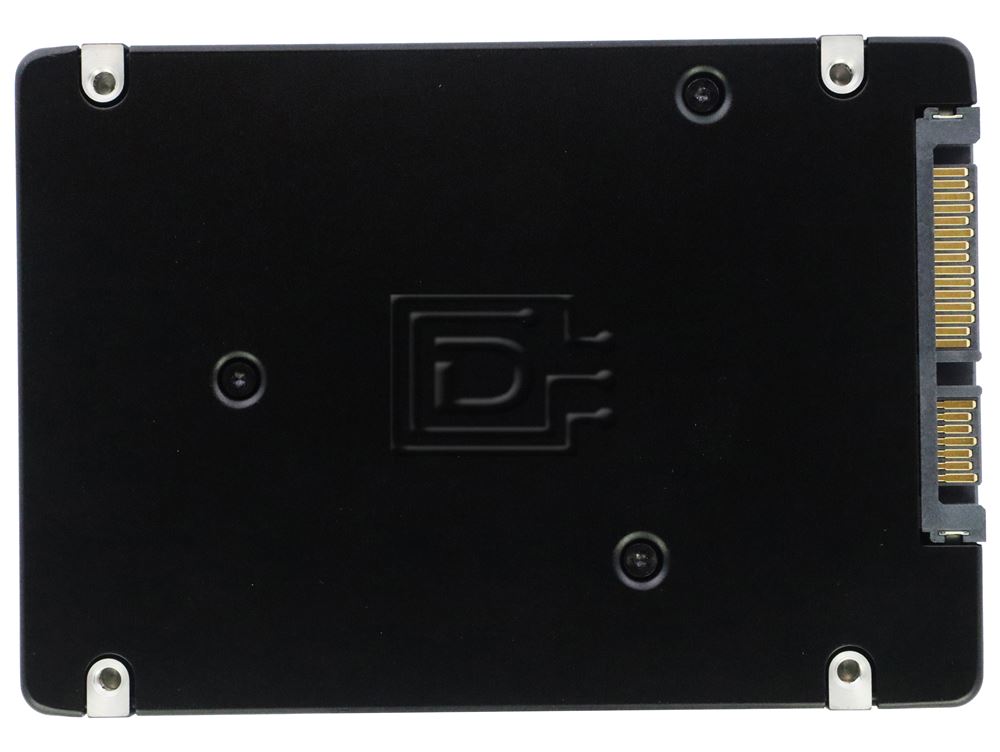

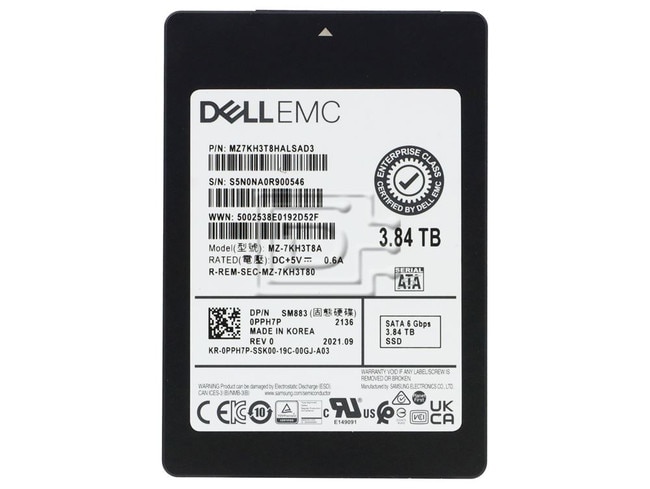

Dell PPH7P / Samsung SM883 MZ7KH3T8HALSAD3 3.84TB 2.5in SFF Mixed Use 6Gb/s Enterprise SATA SSD

SAMSUNG Part #/MPN: MZ7KH3T8HALSAD3

DiscTech Item #: SAM-MZ7KH3T8HALSAD3-BN-OE-DEL


$759.00
$759.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 540MB/s Read and 520MB/s Write

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell PPH7P / Samsung SM883 MZ7KH3T8HALSAD3 / MZ-7KH3T80 3.84TB 2.5in SFF Mixed Use 6Gb/s Enterprise SATA SSD - Brand New OEM

Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers

The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.

SM883 delivers enhanced reliability at 3 DWPD from MLC NAND technology. It also has various capacity, 240 GB to 3.84 TB. With sequential write speed up to 520 MB/s and random write speed up to 29K IOPS, it enables faster work in the data center.

  • Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the SM883 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory
  • End-to-end Protection. Safeguards user data in the SM883 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
  • Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.

Alt MP/N: MZ7KH3T8HALSAD3 / PPH7P / 0PPH7P / MZ-7KH3T80


Compatibility:

This 3.84TB Enterprise SATA SSS is compatible with any system that supports standard SATA HDDs / SSDs larger than 2TB capacity.

ENTERPRISE SSD
Model NumberMZ-7KH3T80
Part NumberMZ7KH3T8HALSAD3
ModelSM883
Form Factor2.5 inch
InterfaceSerial ATA 6.0 Gbps
Capacity3.84TB
Voltage+5V ± 5%
Sequntial Read (128KB)540 MB/s
Sequential Write (128KB)520 MB/s
Random Read IOPS (4KB)97 KIOPS
Random Write IOPS (4KB)29 KIOPS
DWPD3

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: MZ-7KH3T80 PPH7P 0PPH7P

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New
