SANDISK Part #/MPN: SDLTODKM-200G-5C21
DiscTech Item #: SAN-SDLTODKM-200G-5C21-RF-OE-DEP
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

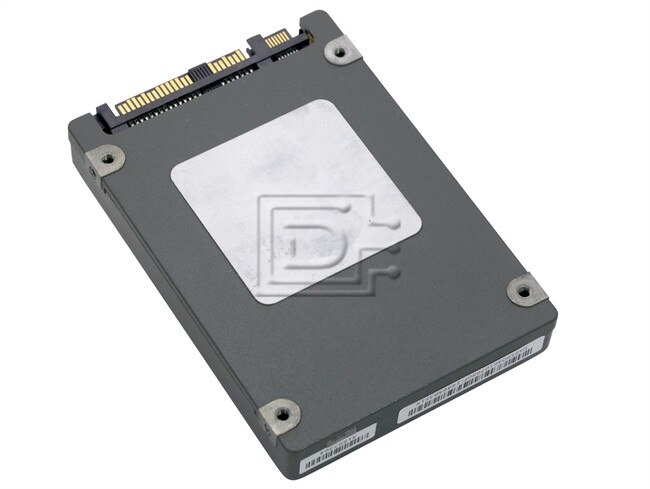

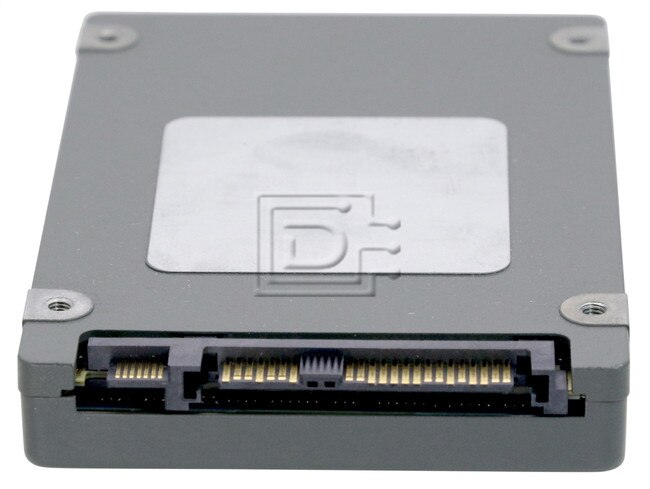

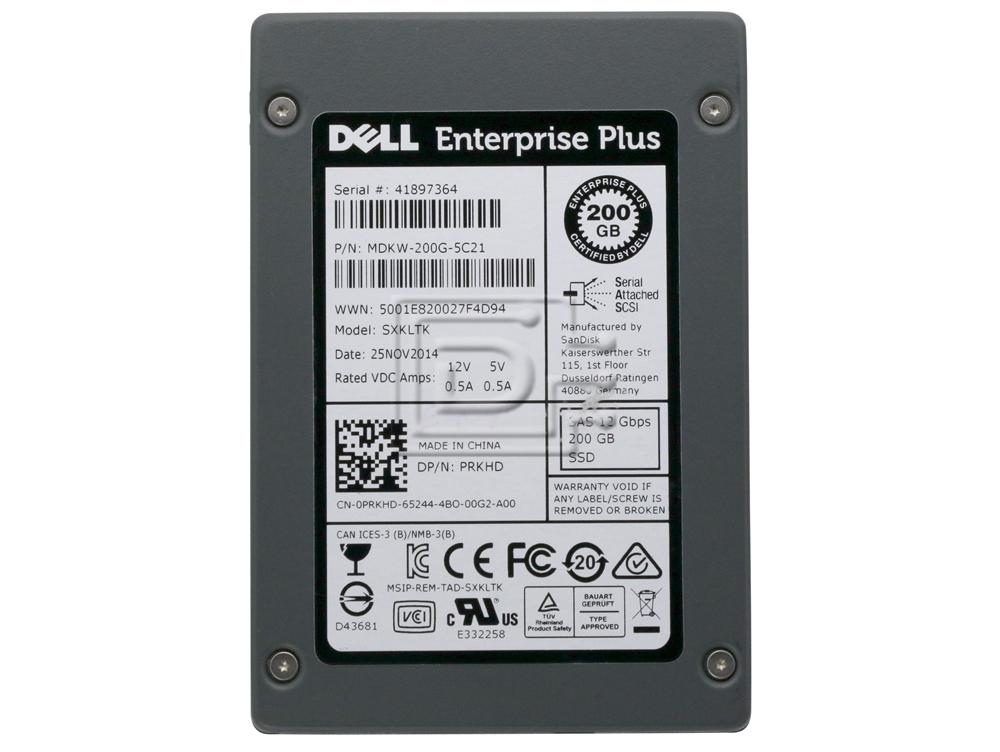

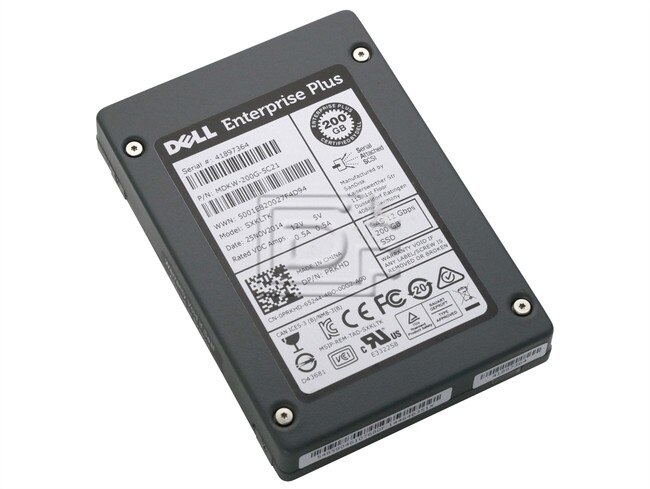

Dell Enterprise Plus PRKHD / SanDisk Lightning Gen II Ascend SXKLTK / SDLTODKM-200G-5C21 / 200GB 2.5" 12Gbps eMLC SAS SSD - Refurbished OEM
Alt MPNs: PRKHD, 0PRKHD, SDLTODKM-200G-5CA1
Lightning® Gen. II
The new Lightning® Gen. II product family of 12Gb/s SAS SSDs doubles interface speed providing the highest performance for mission-critical hyperscale, cloud and virtualized data center application workloads. This next generation of Lightning SSDs offer capacities ranging from 200GB – 1.6TB with random read/write performance up to 190K/100K and sequential read/write speeds of up to 1000/600 MB/s. These SSDs utilize the latest 19nm SLC and eMLC NAND flash technology combined with an innovative parallel processing architecture to deliver industry-leading, predictable performance, superior reliability and maximum value.
Lightning Ascend™ Gen. II SAS SSDs
Lightning Ascend™ Gen. II SAS SSDs offer superior reliability with high speed data transfer rates where quick access to data is essential. Available in 19nm eMLC capacities from 200GB – 1.6TB and with random read/write performance of up to 190K/80K IOPS and sequential read/write speed of up to 1000/600 MB/s. These SSDs are designed for mixed-use applications such as On-line Transaction Processing (OLTP) Databases, Email/Messaging, E-Commerce, Virtual Desktop Infrastructure, and Collaboration, with a typical workload comprised of a 70/30 read/write mix. This SSD offers 10 full drive writes per day (DWPD).
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
| Specifications | |
|---|---|
| Model Number | SDLTODKM-200G-5C21 |
| Alternate Part Numbers | SXKLTK PRKHD 0PRKHD |
| Capacity | 200GB |
| Performance | |
| Interface | 12Gb/s SAS |
| Interface Ports | Dual full-duplex |
| Sequential Read/Write (MB/s) | Up to 1000/600 |
| Random Read/Write (IOPS) (4KB-single port) | Up to 190K/80K |
| Reliability | |
| Sector Sizes | 520 byte |
| Data Reliability (UBER) | <1 sector in 1017 bits read |
| MTBF | 2.5 Million Hours |
| Endurance | |
| DWPD (Random Read) | 10 DWPD |
| Power | |
| Idle | 3.9W |
| Active (Typ) | 5.9W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17 g rms, 7-800 Hz |
| Operating Temperature | 0° C to 60° C |
| Storage Temperature | -40° C to 85° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | 5486.4 m [18,000 ft] |
| Mechanical | |
| Length | 100.45 mm |
| Width | 70.1 mm |
| Height | 15.0 mm |
| Weight | 0.238 Kg |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SXKLTK PRKHD 0PRKHD
