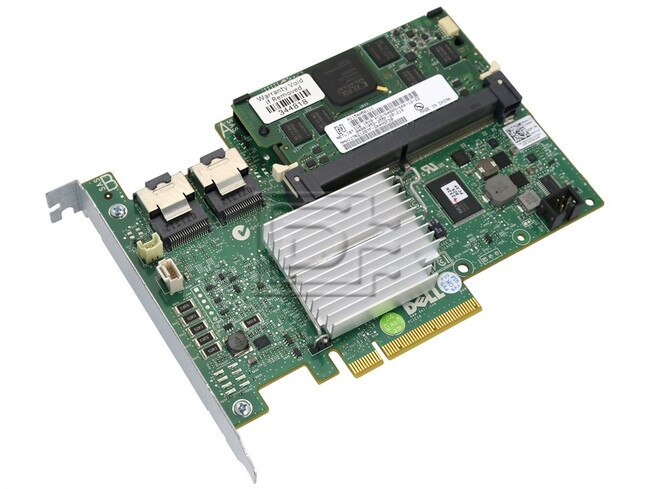

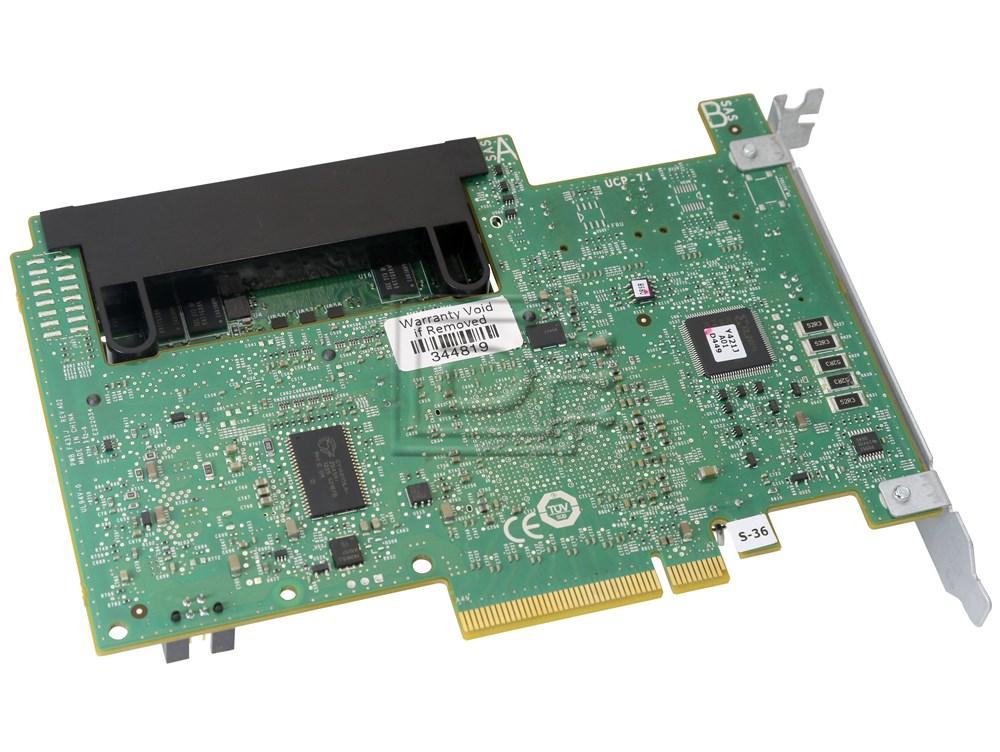

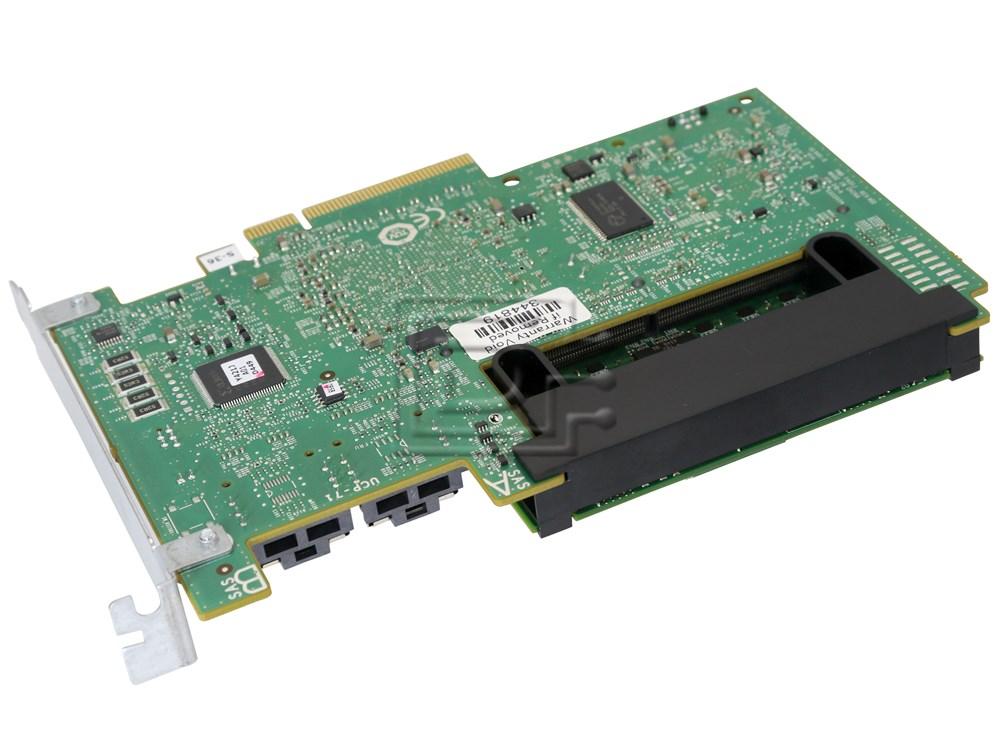

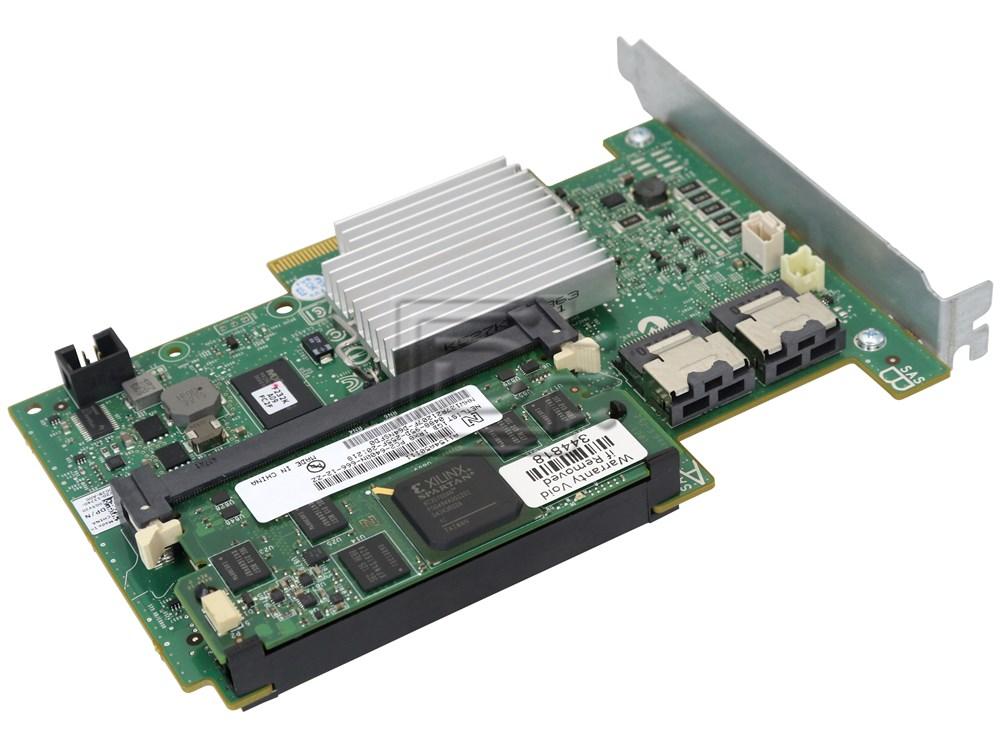

Dell Perc H700 G5V20 SAS PCIe x8 RAID Controller 1GB NV cache Adapter

Dell Part #/MPN: G5V20

DiscTech Item #: DEL-G5V20-NP-OE


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 1GB

Bays/Ports/Slots: 8

Dell Perc H700 G5V20 SAS PCIe x8 RAID Controller 1GB NV cache Adapter - New Pull

Dell PERC (PowerEdge RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management—providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.

PERC H700:

  • Increased IOPS performance with Cut-Through IO & SSDs
  • Adds support for Self Encrypting Drives (SED)
  • 2 x Internal 8087 SAS connectors
  • Adds 1GB Non-Volatile (NV) Cache to to PERC H700
  • Dell 342-1622 PERC H700 1GB Non-Volatile cache
  • Serial Attached SCSI

Alt DPNs: G5V20, 0G5V20


The H700 is compatible with the following systems (List is not all inclusive)

PowerEdge Servers
  • 1900
  • 1950
  • 2900
  • 2950
  • 2970
  • 6900
  • 6950
  • R300
  • R900
  • T300
  • T605
  • R310
  • T310
  • R410
  • T410
  • R510
  • T610
  • R710
  • T710

Cache / Buffer Size1 GB
Interface TypeSAS / PCIe x8
Dell Series 7Perc H700
Device TypeSerial Attached SCSI Raid Controller Card with Battery backup
Port(s) Total (Free) / Connector Type2 x Internal 8087 SAS Connectors
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0G5V20

Weight: 2 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
