Dell Part #/MPN: PE2850
DiscTech Item #: DEL-PE2850-UP-OE
- Used PullCondition Levels Explained
The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.
- Warranty:2 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: SCSI 80pin SCA-2 Hot-Swap, Ethernet RJ45, PCI-X, PCIe, S-Video, SFF-8470
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 2MB
Bays/Ports/Slots: 6
U Height: 2U

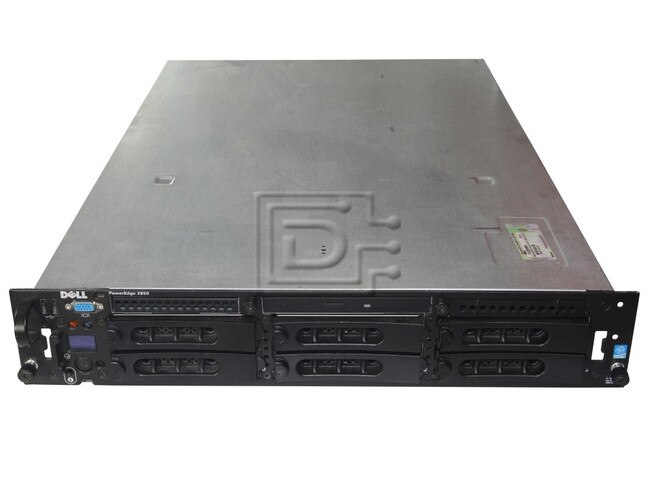

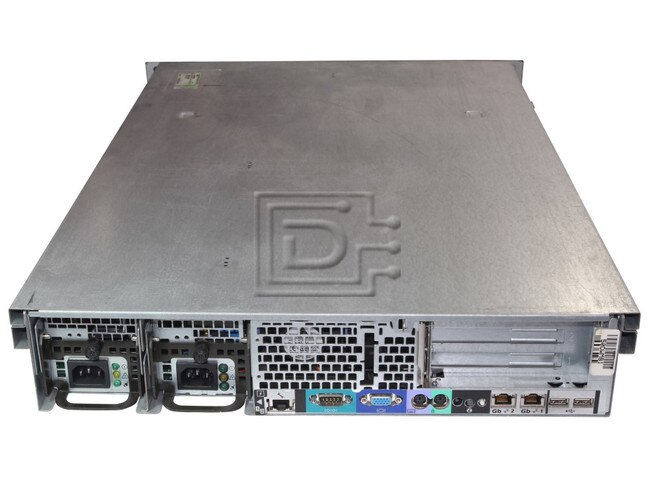

Dell PowerEdge 2850 Rackmount Server - Used Pull
- Dual 3.0GHz XEON CPUs - 1MB Cache - 800Mhz FSB
- 2GB PC3200 ECC RAM
- 6 bay SCSI Hot Swap Backplane
- PERC 4e/DI SCSI RAID Controller with 256MB Cache
- CD ROM Drive
- Dual 700W AC Power Supplies
- NO HARD DRIVES or TRAYS included, please add to order as separate line item. Add up to 6 x 80pin hot-swappable SCSI hard drives to this system.
Dell PowerEdge 2850 Rackmount Server - Used Pull
- Dual 3.0GHz XEON CPUs - 1MB Cache - 800Mhz FSB
- 2GB PC3200 ECC RAM
- 6 bay SCSI Hot Swap Backplane
- PERC 4e/DI SCSI RAID Controller with 256MB Cache
- CD ROM Drive
- Dual 700W AC Power Supplies
| Processor | |
|---|---|
| Processor type | Dual 3.0GHz Intel® Xeon™ processors |
| Front-side bus speed | 800 MHz |
| L2 cache | 1MB internal cache |
| Expansion Bus | |
|---|---|
| Bus type | PCI-X, PCI Express |
| Expansion slots via riser card cage: | |
| PCI-X | one 3.3-V, 64-bit, 100-MHz or three 3.3-V, 64 bit, 133MHz |
| PCI Express | one x4 lane width one x8 lane width |
| Memory | |
|---|---|
| Architecture | 144-bit ECC registered PC2-3200 DDR2 SDRAM DIMMs, with two-way interleaving, rated for 400-MHz operation |
| Memory module sockets | Six 240-pin |
| RAM | 2 GB |
| Drives | |
|---|---|
| SCSI hard drives | up to six 1-inch, internal, hot-plug, Ultra320 SCSI |
| Optical drive | Internal CD-ROM drive |
| Connectors | |
|---|---|
| Externally accessible | |
| Back | |
| NIC | Two RJ-45 (for integrated 1-Gigabit NICs) |
| PS/2-style keyboard | 6-pin mini-DIN |
| PS/2-compatible mouse | 6-pin mini-DIN |
| Serial | 9-pin, DTE, 16550-compatible |
| USB | Two 4-pin, USB 2.0 compliant |
| Video | 15-pin VGA |
| Front | |
| Video | 15-pin VGA |
| USB | Two 4-pin, USB 2.0 compliant |
| Internally accessible | |
| SCSI channels | Two 68-pin U320 SCSI |
| Video | |
|---|---|
| Video type | ATI Radeon 7000-M video controller; VGA connectors |
| Video memory | 16 MB |
| Power | |
|---|---|
| AC power supply (per power supply) | |
| Wattage | 700W |
| Voltage | 84 -264 VAC, autoranging, 47-63 Hz, 10.1 A |
| Heat dissipation | 2388 BTU/hr maximum |
| Maximum inrush current | Under typical line conditions and over the entire system ambient operating range, the inrush current may reach 25 A per power supply for 10 ms or less. |
| Batteries | |
| System battery | CR 2032 3.0-V lithium ion coin cell |
| ROMB battery (optional) | 4.1-V lithium ion |
| Physical | |
|---|---|
| Height | 8.656 cm (3.40 in) |
| Width | 44.7 cm (17.6 in) |
| Depth | 75.68 cm (29.79in) |
| Weight (maximum configuration) | 26.76 kg (59 lb) |
| Environmental | |
|---|---|
| Temperature | |
| Operating | 10° to 35°C (50° to 95°F) |
| Storage | –40° to 65°C (–40° to 149°F) |
| Relative humidity | |
| Operating | 8% to 85% (noncondensing) with a maximum humidity gradation of 10% per hour |
| Storage | 5% to 95% (noncondensing) |
| Maximum vibration | |
| Operating | 0.25 G at 3–200 Hz for 15 min |
| Storage | 0.5 G at 3–200 Hz for 15 min |
| Maximum shock | |
| Operating | One shock pulse in the positive z axis (one pulse on each side of the system) of 41 G for up to 2 ms |
| Storage | Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 ms |
| Altitude | |
| Operating | –16 to 3048 m (–50 to 10,000 ft) |
| Storage | –16 to 10,600 m (–50 to 35,000 ft) |
Weight: 50 lb
Warranty: 2 Month DiscTech
Used Pull
The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.
2 Month DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
