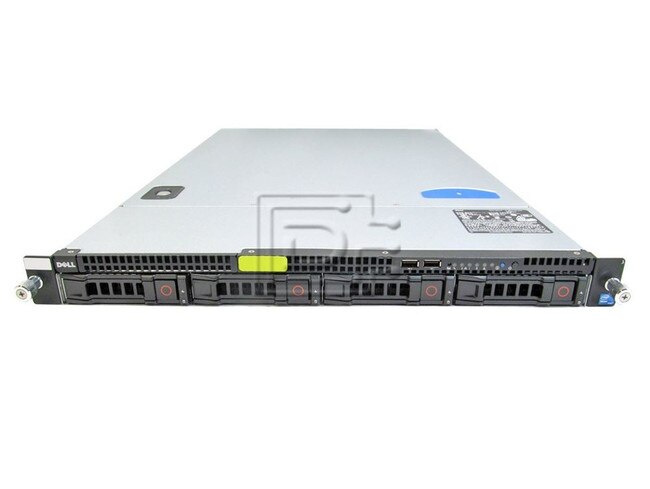

Dell PowerEdge C1100 1U Rackmount Server

Dell Part #/MPN: PEC1100

DiscTech Item #: DEL-PEC1100-RF-2M

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: SAS Serial Attached SCSI, SATA, USB 2.0, Ethernet RJ45, PCIe, VGA, Riser

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 10

U Height: 1U

Compatible Systems: Dell 11th Gen. R710/T610

Dell PowerEdge C1100 Gen11 1U Rackmount Bare Bones / Chassis only Server - No HDDs - Refurbished

Alt MPN: PEC1100

Note:NO HARD DRIVES or TRAYS included, please add to order as separate line item.

PowerEdge C1100
Designed to meet the demands of the densest data center environments, the Dell PowerEdge C1100 server offers massive memory and disk storage in a space-efficient 1U

Designed with your needs in mind
Designed to meet the demands of the densest data center environments, the high-performance PowerEdge C1100 offers massive memory and storage support in a space efficient 1U form factor for Web 2.0, memcache and Web analytics environments.

The PowerEdge C1100 supports two Intel® Xeon® 5500/5600 series processors and 18 DDR3 high performance DIMMs. With its flexible chassis options, the PowerEdge C1100 is capable of supporting up to 4 x 3.5” or 10 x 2.5” hot-plug HDDs (SAS/SATA/SSD), in addition to a true x16 PCI Express slot and two dedicated mezzanine connectors for SAS and 10Gb Ethernet (GbE) connectivity.

Maximum memory flexibility
The PowerEdge C1100 provides the maximum memory flexibility possible in a dense, industry standard 1U form factor. The Intel® Xeon® 5500/5600 series processors has more than doubled memory capacity over previous architectures, providing 18 DDR3 DIMM sockets. The large number of sockets enables support for massive memory capacity up to 192GB.

More hard drives in 1.7 inches
At only 1U (1.7”) high, the PowerEdge C1100 supports 4 x 3.5” or 10 x 2.5” hot-plug hard drives. Choose from high capacity SATA, high performance 6Gb SAS, or enterprise class SLC SSDs to create the optimal storage solution for your applications.

Save power and increase efficiency
The PowerEdge C1100’s dual redundant or single 650W high-efficiency power supply options increase energy efficiency and lower operating costs.

Select Samsung’s latest low-voltage high-density DDR3 Green Memory technology to achieve even more power savings. These DIMMs provide more than 70% power savings over previous generation memory solutions.

PowerEdge C server line
The PowerEdge C1100 is part of Dell’s new hyperscale inspired PowerEdge C server line designed to bring the most computer power in the least amount of space with the least energy draw to lower operational costs. These servers have the right combination of what you need and nothing more.

These are purpose-built servers, designed for HPC, Web 2.0, data analytics, hosting and cloud building. They are best for rack deployments, large homogenous cloud/ cluster application environments where the software stack provides primary platform availability and resiliency. The PowerEdge C server line does not come with features you don’t need like comprehensive systems management, or broad enterprise storage.

Global services and support
Dell is dedicated to simplifying IT, and Dell Services can help you manage the complexities of growing and maintaining your hyperscale, high performance and cloud computing environments. Dell’s broad portfolio of planning, implementation and maintenance services can help accelerate your IT initiatives and grow your business.

Dell services can be tailored to complement how you manage your environment. Options include, but are not limited to, infrastructure consulting services to help you optimize your data center, custom rack integration and expert level phone support with fast-track dispatch.

PowerEdge C1100 Technical Specifications
Standard Model NumbersC1100
Alt MPNsPEC1100
Chassis1U rack-mount
  • 2-socket, 4 or 6 cores per processor
  • Intel® Xeon® 5500/5600 processor series with L2/L3 cache: 4MB/8MB/12MB
  • Front Side BusIntel® QuickPath Interconnect
    ChipsetIntel® 5500
    Primary StorageMaximum internal storage: 10TB SATA (2.5”) or 12TB NL 6Gb SAS (3.5”)
    Drive Bays and Hard Drives (Not Included)10 x 2.5” hot-plug hard drive options:
    • 2.5” 6Gb SAS (15K): 146GB
    • 2.5” 6Gb SAS (10K): 300GB, 600GB, 900GB
    • 2.5”NL SAS (7.2K) 500GB, 1TB
    • 2.5” SATA II (7.2K) : 250GB, 500GB, 1TB
    • 2.5” SSD (SLC NAND): 50GB, 100GB

    4 x 3.5” hot-plug hard drive options:
    • 3.5” SATA (7.2K): 500GB, 1TB, 2TB
    • 3.5” 6Gb SAS (15K): 300GB, 450GB, 600GB
    • 3.5” 6Gb NL SAS (7.2K): 1TB, 2TB, 3TB
  • Onboard: Intel® 82576 – 2 x Gb Ethernet and 1 x 100Mb Ethernet dedicated management port
  • Add-in: 1Gb and 10Gb Ethernet card options
  • QDR InfiniBand card options
  • Ports - USB
  • 3.5” chassis: 4 USB ports (2 rear, 2 front)
  • 2.5” chassis: 2 USB ports (2 rear)
  • I/O Slots3 PCIe G2 slots:
  • 1 x 16 PCI Express Gen2 slot
  • 1 proprietary mezzanine for dual port 10GbE daughtercard
  • 1 proprietary mezzanine for LSI® 2008 SAS daughtercard
  • Controllers
  • Internal Controllers:
  • LSI 2008 SAS daughtercard
  • LSI MegaRAID® SAS 9260-8i
  • PERC H700
  • Operating System
  • Novell® SUSE® Linux® Enterprise Server 11 SP1 x64 SP1
  • Red Hat® Enterprise Linux 6.1
  • Microsoft® Windows Server® 2008 R2 Enterprise SP1 and HPC Server 2008 R2 x64 SP1
  • Server Management
  • Embedded BMC with IPMI 2.0 support
  • Intel® Intelligent Power Node Manager compliant
  • Hypervisors (Optional)
  • Citrix® XenServer® 5.6
  • VMware® ESXi v5.0
  • Microsoft® Windows Server® 2008 Hyper-V
  • Services (Availability varies by region. Please contact your sales representative for details.)
  • Infrastructure Consulting Services
  • Rack Integration (U.S. only)
  • Onsite Deployment
  • Basic Support, ProSupport for IT
  • 4-Hour Support
  • Keep Your Hard Drive
  • Enterprise Wide Contract
  • Specialized Onsite Services

  • Click here to view the manufacturer's item description/brochure

    Alternate MPNs: C1100

    Weight: 37 lb

    Warranty: 2 Month DiscTech


    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

    2 Month DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
