Dell PowerEdge C2100 2U Rackmount Server

Dell Part #/MPN: PEC2100

DiscTech Item #: DEL-PEC2100-RF-2M


$500.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$500.00

Interface Types: SAS Serial Attached SCSI, SATA, IDE ATA 1.8in ZIF, USB 2.0, Ethernet RJ45, PCIe, VGA, Serial RS-232 DB9, PS2, Riser

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 24

U Height: 2U

Compatible Systems: Dell 11th Gen. R710/T610

Dell PowerEdge C2100 Gen11 2U Rackmount Bare Bones / Chassis only Server - No HDDs - Refurbished

Alt MPN: PEC2100

Note:NO HARD DRIVES or TRAYS included, please add to order as separate line item.

PowerEdge C2100
A data monster, the DellTM PowerEdgeTM C2100 has up to 192GB of memory, with up to 38TB of disk capacity so you can see results faster.

Designed with your needs in mind
With the PowerEdge C2100, you don’t have to choose memory over disk capacity. You get both so you can get results faster. The Dell Data Center Solutions team designed the PowerEdge C2100 to maximize space, energy and cost efficiency in data centers where memory and storage density are critical: Apache® Hadoop, Map/ Reduce, Web analytics, database and cloud computing.

PowerEdge C2100 features include the performance of two six- or quad-core Intel® Xeon® 5500/5600 series processors with 18 DDR3 memory slots to increase gigabytes without increasing the number of nodes.

It supports up to 12 x 3.5” or 24 x 2.5” hot-plug disks (SAS/SATA) and has two internal 2.5” disk bays. Expansion options include two standard x 8 PCI Express slots and two dedicated x 4 PCI Express slots for SAS and 10Gb Ethernet (GbE).

Increase memory and save
The power-efficient Intel® Xeon® 5500/5600 series more than doubles memory over previous Intel generations, providing 18 DDR3 DIMM sockets for up to 192GB of memory.

With Samsung’s latest ow-voltage high-density DDR3 memory, you can also save more than 70% in energy over previous generation memory solutions.

The right mix of disks
The PoweEdge C2100’s mix of disk configurations and backplane options enables you to select the combination of components that best matches your needs. Choose from 2.5” or 3.5” high-capacity SATA or high-performance SAS hot-plug drives in the front-loaded carriers, in addition to two internal 2.5” SATA HDDs or single-level cell (SLC) solid-state drives (SSDs) for up to 38TB of capacity.

For applications where the highest performance is required, the C2100 has a backplane configuration that allows you to control all 12 drives via 12 SAS/SATA ports, rather than requiring an expander chip where performance may be limited.

If greater RAID flexibility is the goal, an expander backplane is available to control 12 drives from one SAS/ SATA controller. In addition, the two internal 2.5” HDD/SSD drives are available with the expander backplane to open up further possibilities in local storage, while support for 6Gb SAS provides future-ready scalability.

PowerEdge C server line
The PowerEdge C2100 is part of Dell’s new hyper scale-inspired PowerEdge C server line designed to bring the most compute power in the least amount of space with the least energy draw to lower operational costs. These servers have the right combination of what you need and nothing more.

These are purpose-built servers, designed for HPC, Web 2.0, data analytics, gaming and cloud building. They are best for rack deployments, large homogenous cloud/ cluster application environments where the software stack provides primary platform availability and resiliency. The PowerEdge C server line does not come with features you don’t need like comprehensive systems management, or broad enterprise storage.

Global services and support
Dell is dedicated to simplifying IT, and Dell Services can help you manage the complexities of growing and maintaining your hyperscale, high performance and cloud computing environments. Dell’s broad portfolio of planning, implementation and maintenance services can help accelerate your IT initiatives and grow your business. Dell services can be tailored to complement how you manage your environment.

PowerEdge C2100 Technical Specifications
Standard Model NumbersC2100
Alt MPNsPEC2100
Chassis2U rack-mount
Processors
  • 2-socket, 4 or 6 cores per processor
  • Intel® Xeon® 5500/5600 processor series with L2/L3 cache: 4MB/8MB/12MB
  • Front Side BusIntel® QuickPath Interconnect
    ChipsetIntel® 5500
    Primary StorageMaximum internal storage: 26TB SATA or 38TB NL SAS
    Drive Bays and Hard Drives (Not Included)

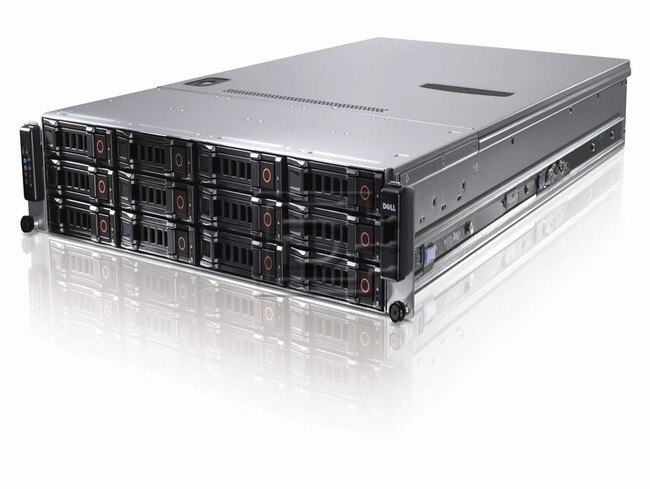

  • 12 x 3.5” or 24 x 2.5” hot-plug hard drives
  • 2 additional internal 2.5” SATA HDD or SSD (optional)
  • 2.5” 6GB SAS (15K): 146GB
  • 2.5” 6GB SAS (10K): 300GB, 600GB, 900GB
  • 2.5” NL SAS (7.2K): 500GB, 1TB
  • 2.5” SATA II (7.2K RPM): 250GB, 500GB, 1TB
  • 2.5” SSD (SLC NAND): 50GB, 100GB
  • 3.5” SATA (7.2K): 500GB, 1TB, 2TB
  • 3.5” SAS (15K): 300GB, 450GB, 600GB
  • 3.5” NL SAS (7.2K): 1TB, 2TB, 3TB
  • Connectivity
  • Onboard: Intel 82576 – 2 x Gb Ethernet and 1 x 100Mb Ethernet dedicated management port
  • Add-in: 1Gb and 10Gb Ethernet card options
  • QDR InfiniBand card options
  • Ports - USB2 USB ports (rear)
    I/O Slots4 PCIe G2 slots:
  • 2 x 8 PCI Express Gen2 slot
  • 1 proprietary mezzanine for dual port 10GbE daughtercard
  • 1 proprietary mezzanine for LSI 2008 SAS daughtercard
  • Operating System
  • Novell® SUSE® Linux® Enterprise Server 11 SP1 x64
  • Red Hat® Enterprise Linux 6.1
  • Microsoft® Windows Server® 2008 R2 Enterprise SP1 and HPC Server 2008 R2 x64 SP1
  • Server Management
  • Embedded BMC with IPMI 2.0 support
  • Intel® Intelligent Power Node Manager compliant

  • Click here to view the manufacturer's item description/brochure

    Alternate MPNs: C2100

    Weight: 37 lb

    Warranty: 2 Month DiscTech

    Refurbished

    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

    2 Month DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
