Dell PowerEdge SC1435 Rackmount Server

Dell Part #/MPN: PESC1435

DiscTech Item #: DEL-PESC1435-UP-2M


Interface Types: SAS Serial Attached SCSI, SATA, USB 2.0, Ethernet RJ45, PCI-X, PCIe, SVGA, Serial RS-232 DB9

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 2

U Height: 1U

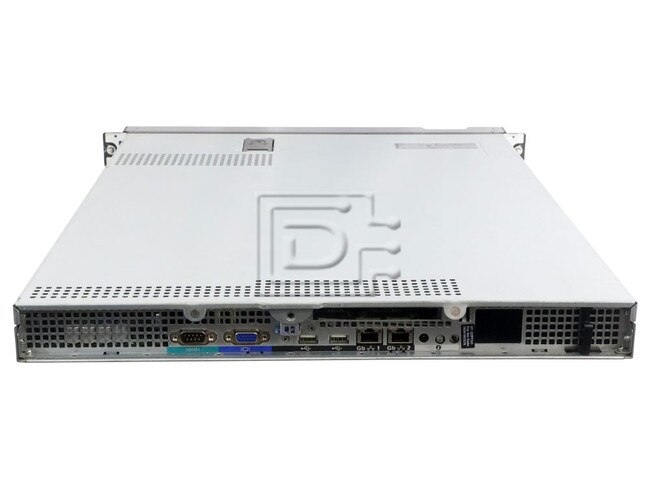

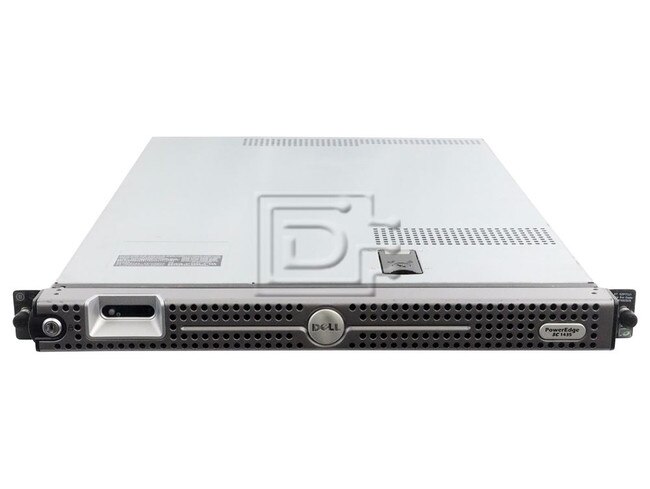

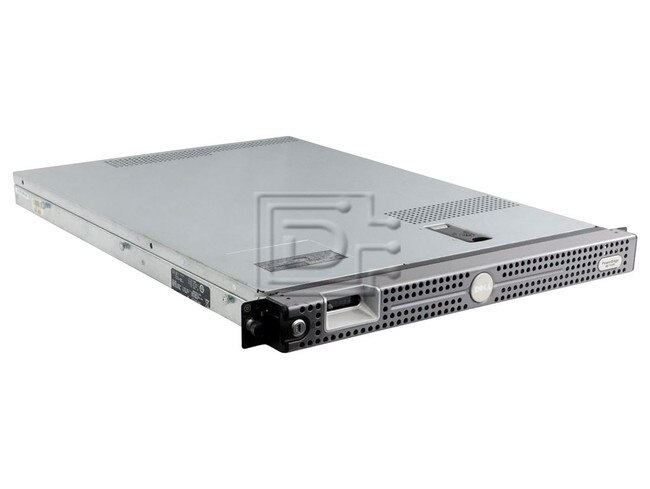

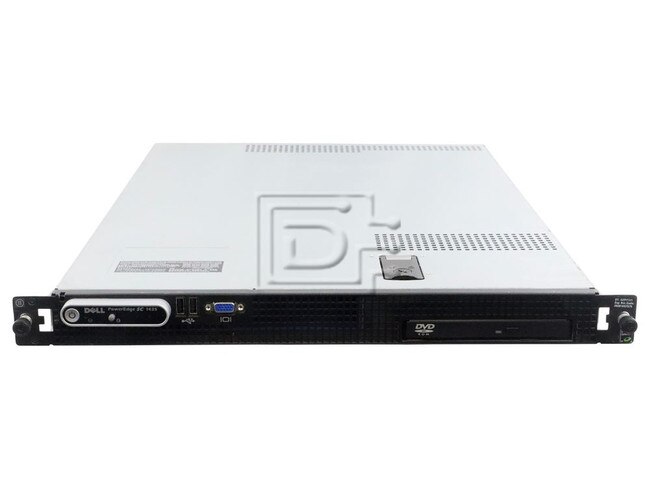

Dell PowerEdge SC1435 1U Rackmount Server - Used Pull

Reduced Complexity

Featuring dual-core AMD Opteron™ processors, the rack-dense, 1U PowerEdge SC1435 server provides the cost-effective performance and low power consumption that distributed cluster environments need. It is designed to reduce complexity making it easy to deploy in high performance computing clusters (HPCC) and Web farms. The price also makes it perfect for budget-conscious customers like small and medium businesses.

To simplify distributed cluster environments, the PowerEdge SC1435 server incorporates tools for easy management. The latest industry-standard Intelligent Platform Management Interface (IPMI) 2.0 Baseboard Management Controller (BMC) allows remote, out-of-band management over a network or serial connection with any industry-standard IPMI management program. Software updates are also simplified through planned block releases of multiple drivers, BIOS and firmware updates while proactive notification of these updates are available for customers via an online tool called ImageWatch.

The PowerEdge SC1435 server is built specifically for large volume distributed clusters so you don’t pay for features you will never use. Dell’s system management tools give you management functionality tailored to HPCC and distributed Web serving environments. The server does not include hot plug hard drives, fans and power supplies because redundancy is typically achieved at the application level in these types of distributed computing implementations.

Exceptional Price/Performance/Watt

The latest processor technology AMD Opteron dual-core processors means the PowerEdge SC1435 has an exceptional price/performance/watt ratio. AMD’s Direct Connect Architecture directly connects CPUs, memory and I/O to help reduce latency and optimise memory performance. Additionally, AMD PowerNow! with Optimised Power Management is designed to decrease overall system power consumption without compromising performance by dynamically adjusting individual core frequencies for improved power. And the PowerEdge SC1435 server provides a seamless upgrade to future quad-core processing in the same thermal envelope.

The PowerEdge SC1435 server offers processor speeds up to 2.8GHz with as much as 32GB of low latency power effcient DDR2-667 memory. It also includes the latest high performance I/O and storage technologies. Optional TCP/IP Offload Engine (TOE) NIC adapters help improve processor utilisation by offloading TCP/IP traffic from the host processor to an integrated NIC processor. Up to two SATA or SAS drives provide flexible and reliable storage.

Comprehensive Business Relevant Solutions For HPCC And Web Serving

Built with HPCC and distributed Web serving challenges in mind, the PowerEdge SC1435 helps organisations make the most of their resources in distributed cluster applications. Dell engineers, working closely with our HPCC partners, fully integrate, test and preconfigure HPCC solutions to take the guesswork out of configuring a cluster. These pre-configured bundles provide a validated solution that can be easily deployed. Additionally, Dell Services are focused on simplifying HPCC operations and helping you achieve the full value of your systems.

Form Factor1U rack-mount
ProcessorTwo dual-core AMD Opteron™ 2376 Series Processor(s) at 2.3GHz
Hypertransport1GHz HyperTransport™ Technology
Cache2x1MB L2
ChipsetBroadcom HT-2100 and HT-1000 server I/O controllers
Memory2GB RAM Installed /  32GB Max. (8 DIMM slots): 512MB/1GB/2GB/4GB ECC DDR2 667MHz SDRAM
I/o SlotsOne PCI Express™ x8 full height, half length or
One PCI-X (64bit/133MHz) full height, half length
Drive ControllerEmbedded SATA II controller
RAID ControllerSAS 5/iR (optional)
Drive Bays1 x slimline bay: optional CD, CD/DVD-ROM3, CD-RW/DVD3 combo
Maximum Internal StorageUp to 600GB: two 300GB cabled SAS (10K rpm); Optional
Up to 1TB: two 500GB cabled SATA (7.2K rpm) Optional
Hard Drives3.5” SAS (10K rpm): 73GB, 146GB, 300GB; Optional
3.5” SAS (15K rpm): 36GB, 73GB; Optional
3.5” SATA II (7.2K rpm): 80GB,160GB, 250GB, 500GB: Optional
Network Interface CardDual embedded Broadcom Gigabit NICs with load balancing and fail-over support
Power SupplyStandard 600W power supply; Auto-switching universal 90-264V
AvailabilityECC, SDDC DDR2 memory; RAID controller option, Quad Pack LED
VideoEmbedded ATI ES1000 with 16MB memory
Remote ManagementStandard Baseboard Management Controller with IPMI 2.0 support
Systems ManagementDell Server Assistant for PowerEdge SC servers, deployment and update tools
Rack Support4-post (Dell rack) sliding rails and Cable Management Arm; 3rd party Versa rails, 2-Post rails - Optional
Supported Operating SystemsMicrosoft® Windows® Server 2003 R2, Standard Edition;
Microsoft® Windows® Server 2003 R2, Web Edition;
Microsoft® Windows® Server 2003 R2, x64 Standard Edition;
Red Hat® Linux® Enterprise v4, ES and ES x86-64;
Red Hat® Linux® Enterprise v4, WS and WS x86-64;
SUSE® Linux Enterprise Server 10 x86-64

Click here to view the manufacturer's item description/brochure

Alternate MPNs: SC1435

Weight: 50 lb

Warranty: 2 Month DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

2 Month DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
