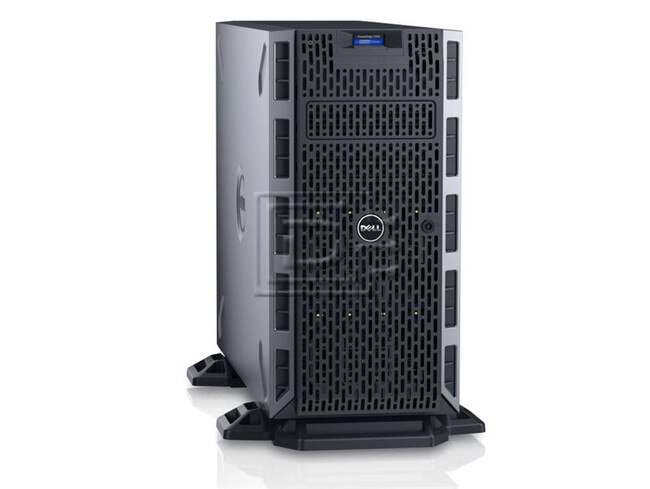

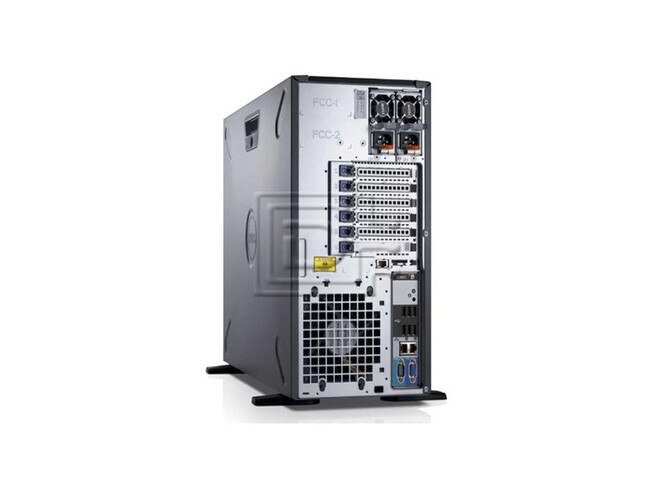

Dell PowerEdge T330 5U Tower Server

Dell Part #/MPN: PET330

DiscTech Item #: DEL-PET330LH8-E31240V5-BN-2M


$1,699.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$1,699.00

Enterprise Grade

Interface Types: SAS Serial Attached SCSI, SATA, USB 3.0 3.1 3.2, Ethernet RJ45, PCIe, VGA

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

Bays/Ports/Slots: 8

U Height: 5U

Voltage: 110-240V Multi

Compatible Systems: Dell 14th Gen. R640/R740

Dell PowerEdge T330 5U Tower Server Intel Xeon E3-1240 v5 3.5GHz 8x3.5" LFF Bays Hot Swap Power - Brand New

Dell PowerEdge T330 5U Tower Server Intel Xeon E3-1240 v5 3.5GHz 8x3.5" LFF Bays Hot Swap Power - Brand New

POWEREDGE T330

Powerful and expandable 1-socket rackable tower server for small and medium businesses (SMB) and remote office/branch office (ROBO).  The Dell PowerEdge T330 is an excellent first server or replacement server for driving collaboration and productivity applications in SMB.

Compared to the PowerEdge T130, the T330 offers greater internal storage capacity (8 HDDs vs. 4 HDDs), hot-plug HDDs and redundant power supplies.  In addition, compared to the previous-generation T320, the T330 supports the full-feature remote management of the Dell integrated Remote Access Controller (iDRAC8) with Lifecycle Controller, making the T330 highly attractive for ROBO of large institutions.

Discover greater versatility

Grow data through time with up to eight internal 3.5-inch hotplug hard drives. Expand memory capacity with four DIMM slots supporting up to 64GB of DDR4 memory to drive application performance and fast response times. Easily and flexibly attach external devices with eight external USB ports.

Deliver powerful performance Accelerate compute performance across a wide range of applications with a processor from the latest Intel® Xeon® processor E3-1200 v6 product family.

Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which is 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0.

Deliver 2x IOPS performance with T330/PERC9 compared to theprevious-generation T320/PERC8.

Maximize operational efficiency

Gain additional levels of convenience and high availability protection with hot-plug hard drives and redundant power supplies.   Deploy smoothly and rapidly with Dell OpenManage systems management solutions. Easily monitor system health and behavior with simple, intuitive Dell OpenManage Essentials console.

Innovative management with intelligent automation

The Dell OpenManage systems management portfolio includes innovative solutions that simplify and automate management tasks, making IT operations more efficient and more cost-effective throughout the server life cycle.   Leveraging the incomparable agentfree capabilities of the iDRAC with Lifecycle Controller technology, server deployment, configuration and updates are rapid, confident and worry-free. Monitoring and control of the T330 is provided by OpenManage Essentials and can also enable anytime, anywhere mobile access, through OpenManage Mobile.

PowerEdge T330

• 1-socket rackable tower server with choice of latest

Intel Xeon E3-1200 v6 processors

• Up to 4 x DDR4 DIMMs

• Up to 8 x 3.5" hard drives

    Server Includes:

    • Intel Xeon E5-1240 v5 3.5GHz 8M cache Quad Core 8T CPU
    • 8 x 3.5” Drive Bays (Drives and caddys not included)
    • Perc H330 12Gb/s SAS/SATA Hardware RAID Controller
    • 8GB PC4-17000 DDR4-2133MHz UDIMM RAM
    • DVD +/-RW 16X
    • IDRAC8 Basic
    • 1 x 495W Hot Swap Power Supply Unit* (supports up 2 hot swap power supplies.)
    Does not include: Rack Rails, Keyboard, Mouse, Monitor, Operating System

    Compatibility:

    The Dell PowerEdge T330 server is compatible with the following operating systems ...

    • Microsoft® Windows Server® 2012
    • Microsoft Windows Server 2012 R2, x64
    • Microsoft Windows Server 2016
    • Red Hat® Enterprise Linux®
    • VMware® Vsphere® ESXi®
    • SUSE Linux Enterprise Server
    • Microsoft Windows® Small Business Server 2011
    • Novell® SUSE® Linux Enterprise Server
    • Red Hat® Enterprise Linux®

    Hypervisor Support:
    • Microsoft Windows Server (with Hyper-V® enabled)
    • VMware® vSphere® ESXi®

    PowerEdge T330 general technical specifications & options
    Form factorTower (5U rackable w/ optional Tower to Rack Kit & Rails)
    Processors Intel® Xeon® processor E3-1200 v5/v6 product family
    Intel Pentium®
    Intel CoreTM i3
    Intel Celeron®
    Processor sockets1
    ChipsetIntel C236
    Cache2.5MB per core; core options: 2, 4, 6, 8
    Memory Sockets4 Sockets
    MemoryUp to 192GB (4 DIMM slots): 4GB/8GB/16GB DDR4 up to 2400MT/s - 64GB Max RAM
    I/O slots
    • 1x8 PCIe 3.0 (x16 connector)
    • 1x4 PCIe 3.0 (x8 connector)
    • 1x4 PCIe 3.0 (x8 connector)
    • 1x1 PCIe 3.0 (x1 connector)
    Network ControllerBroadcom 5720
    RAID controller Internal controllers:
  • PERC S130 (SW RAID SATA)
  • PERC H330 (installed)
  • PERC H730

  • External HBAs (RAID):
  • PERC H830
  • Drive baysEight 3.5” hot-plug drive bays
    Maximum internal storageUp to 112TB
    Hard drivesHot-plug hard drive options:
  • 2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD (in 3.5" Hybrid Carrier)
  • 3.5” SATA, nearline SAS, SAS (10K, 15K)
  • Communications2 x 1GbE LOM
    Power1x 350W cabled PSU, or up to 2x 495W redundant hot swap PSUs
    Chassis5U Rackable Tower
    Remote management IDRAC8 Basic management (default)
    IDRAC8 Enterprise (optional)
    Systems management
    • IPMI 2.0 compliant
    • OpenManage™ Essentials and Dell Management Console
    • OpenManage Power Center
    • Dell OpenManage Connections: and CA Network and Systems Management,
    • Dell OpenManage Plug-in for Oracle® Database Manager
    Rack support Optional - ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: T330

    Weight: 70 lb

    Warranty: 2 Month DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    2 Month DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
