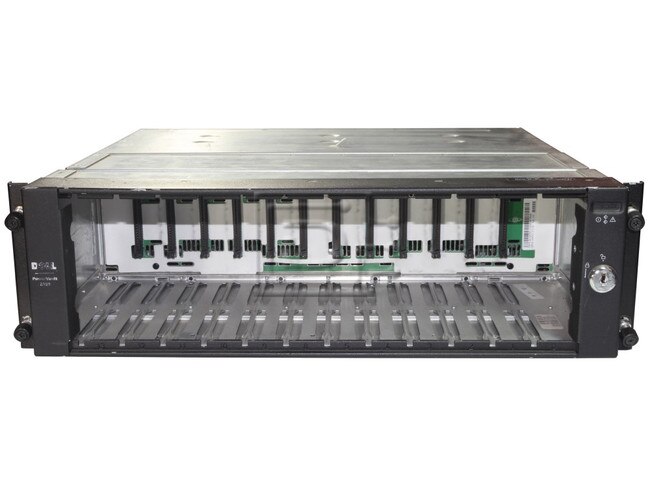

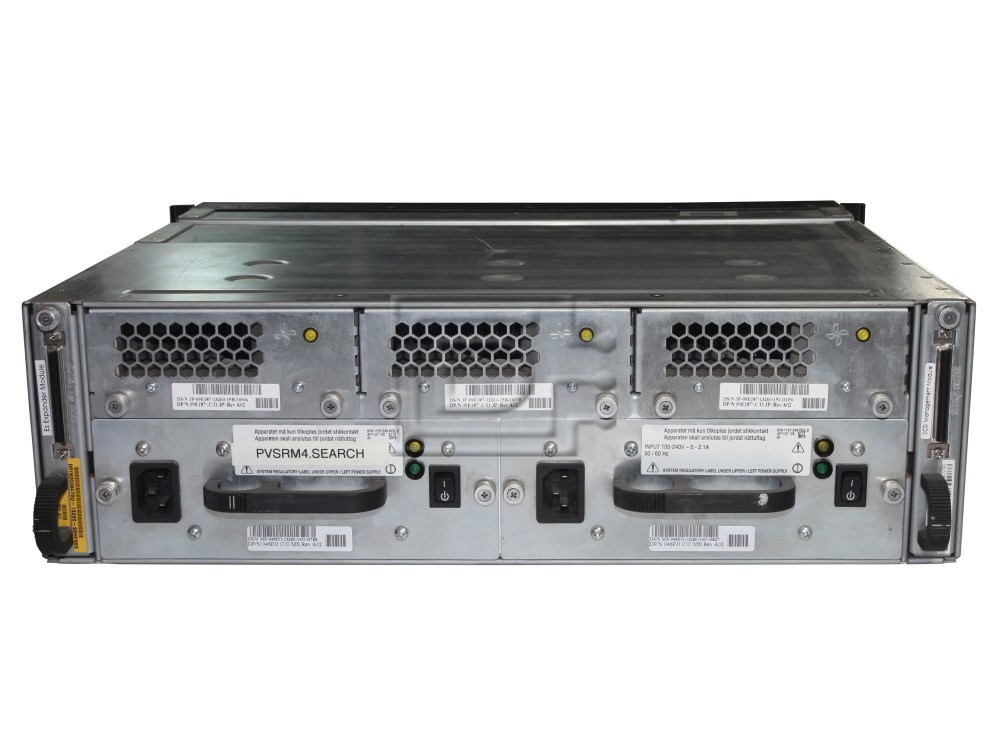

Dell Powervault 210S SCSI Storage Array

Dell Part #/MPN: 210S

DiscTech Item #: DEL-PV210S-UP-OE


Interface Types: SCSI 80pin SCA-2 Hot-Swap, SCSI 68pin HD68

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

Bays/Ports/Slots: 12

U Height: 2U

Wattage/VA: 460W

Voltage: 110-120V

Dell Powervault 210S SCSI Storage Array - 12 Bays, 3 Fans, Dual Power Supplies, Dual U160 Controller Cards - Used

Dell PowerVault systems are reliable, flexible, external SCSI expansion enclosures designed to support multiple Dell storage environments and RAID configurations. Each system offers maximized drive-spindle count, hot-plug hard drives, optional redundant power, redundant cooling, rackmount capability, systems management features, and a modular design for easy upgrades. Most major components, including hard drives and power supply/cooling modules are hot-pluggable and can be removed and replaced easily. This means they can be removed or inserted while the power is on, but all I/O activity has ceased.


SCSI hard drives

support for up to twelve 1-inch-by-3.5-inch LVD Ultra 160 and Ultra 320 hot-plug hard drives, at speeds of 10K or 15K rpm.

External Ports

68-pin connector in a nonredundant configuration, and two
68-pin connectors in a redundant configuration (or Ultra2/Ultra3
cluster mode for ESEM and SEMM)

Backplane Board Connectors

Hard drives

twelve 80-pin SCA-2 connectors

Power supply/cooling module

2 high-current connectors

Enclosure management modules (EMM)

210-pin connector

Split-bus module

180-pin connector

Power Supplies


340/460 W peak

Heat dissipation

990 BTUs (nominal)


90 to 135 V at 60 Hz; 180 to 265 V at 50 Hz



13.3 cm (5.25 inches)


44.6 cm (17.55 inches)


43.2 cm (17.0 inches)


34.0 kg (75.0 lb) maximum with all components installed






10° to 35°C (50° to 95°F)

-40° to 65°C (-40° to 149°F)

Relative humidity




8% to 80% (noncondensing)

8% to 95% (noncondensing)




-16 to 3048 m (-50 to 10,000 ft)

Click here to view the manufacturer's item description/brochure

Weight: 80 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
