Dell Part #/MPN: MD3000
DiscTech Item #: DEL-MD3000-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:7Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Interface Types: SAS, SATA, Ethernet RJ45, SFF-8470
Form Factor: 3.5" LFF Hard Drive
Electrical Interface: SAS-1 3Gbps
Bays/Ports/Slots: 15
Wattage/VA: 478W
Voltage: 110-240V Multi

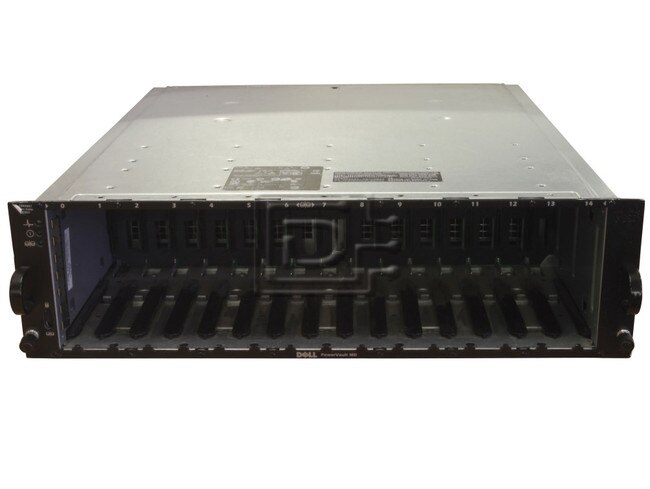

Dell Powervault MD3000 SAS/SATA Storage Array - 15 Bays - Dual EMM RAID Controllers - Refurbished
Built for high-performance 2-node clusters or direct attached up to four PowerEdge servers, the PowerVault MD3000 is a modular disk storage array capable of housing up to fifteen 3.5-inch SAS or SATA disk drives in a single 3U rack enclosure. The PowerVault MD3000 direct attached storage array is expandable by simply adding up to two additional expansion enclosures for a total of 45 drives and 45TB capacity. The entire storage array subsystem is managed from a single software application-known as the Modular Disk Storage Manager-which streamlines the management and maintenance of storage as it scales. With the PowerVault MD3000, storage can be quickly and easily added as needed without disruption to operations.
|
| Hard Drives Up to fifteen (15) 3.5-inch SAS or SATA hot-pluggable hard drives, at speeds of 5.4K, 7.2K, 10K or 15K Drive speeds and capacities SAS Drives 15,000 RPM SAS drives available in 73GB, 146GB, 300GB or 450GB 10,000 RPM SAS drives available in 300GB, 400GB or 600GB Nearline SAS (7,200 RPM) drives available in 500GB, 750GB or 1TB SATA Drives 7,200 RPM SATA II drives available in 250GB, 500GB, 750GB or 1TB Energy efficient SATA II (5,400 RPM) drives available in 1TB Maximum Capacity (per enclosure) 15TB using fifteen 1TB SATA or SAS disk drives Expansion Capability Expands to 3 enclosures (45 drives) with two PowerVault MD1000 expansion enclosures | |
| Connectivity | |
| Support for either up to 2 Highly Available (redundant data paths) hosts or up to 4 non-HA (single data path) hosts using SAS 5/E HBA | |
| Storage Controllers and RAID Levels | |
| Storage Controllers Dual storage controllers provides failover and redundant enclosure management capabilities 512 MB of battery backed cache (72 hours) per controller Both models support both IPV4 and IPV6 addressing RAID Levels: Support for RAID levels 0, 1, 10, 5, and 6 Up to 30 physical disks per disk group Up to 256 virtual disks | |
| Array Management | |
Management Software: Modular Disk Storage Manager, Java-Based task-oriented UI Multi-path (failover) SW provides management of redundant data paths between host and storage Optional Premium Software Features: BasicSnapshots: up to 4 snapshots per virtual disks and 128 snapshots per system Enhanced Snapshots: up to 8 snapshots per virtual disk and 128 per system Basic SnapShots PLUS Virtual Disk Copy: up to 4 snapshots and up to 8 simultaneous virtual disk copies Enhanced Snapshots PLUS Virtual Disk Copy: up to 8 snapshots and up to 8 simultaneous virtual disk copies | |

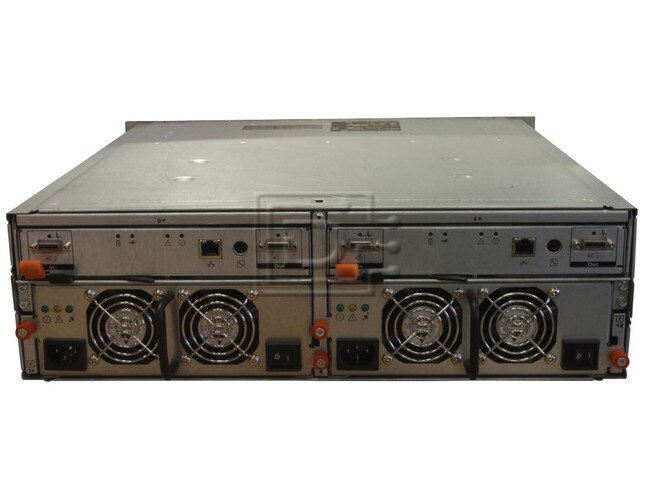

| Back-Panel Connectors | |
| Single Port Option: SAS connectors (per storage controller) 1x4 3.0 Gbps SAS (SFF 8470) "IN" connector for connection to the host 1x4 3.0 Gbps SAS (SFF 8470) "OUT" connector for future expansion capability Management Port (per storage controller) 1 10/100 Ethernet Connection (RJ45) for "out-of-band" enclosure management capability Serial connector (per storage controller) 1 6-pin UART mini-DIN connector (for service technician use only) Dual Port Option: SAS connectors (per storage controller) 2x4 3.0 Gbps SAS (SFF 8470) "IN" connector for connection to the host 1x4 3.0 Gbps SAS (SFF 8470) "OUT" connector for future expansion capability Management Port (per storage controller) 1 10/100 Ethernet Connection (RJ45) for "out-of-band" enclosure management capability Serial connector (per storage controller) 1 6-pin UART mini-DIN connector (for service technician use only) | |
| LED Indicators | |
| Front panel 1 two-color LED indicator for system status 1 single-color LED indicators for power 1 LED unused in this system Hard-drive carrier 1 single-color activity LED 1 two-color LED status indicator per drive Storage Controller 1 two-color LED status indicator per SAS IN/OUT port (total 3 on dual port option, 2 on single port option) 1 one-color Battery Fault LED for battery-backed cache 1 one-color Cache Activity LED 2 one-color Controller Fault and Controller Power LEDs 2 one-color LEDs for Ethernet link and speed Power supply/cooling fan module 3 LED status indicators for power supply status, power supply/fan fault and AC status | |
| Power Supplies | |
| PowerVault MD3000 Control Module Wattage 478 W maximum continuous 550 W peak Maximum Heat dissipation: 200 W Input Voltage Range 100-240 V rated (actual 90-264 V) Frequency Range 47-63 Hz Maximum Input Current at Rated Power 7.93 A at 90 V 3.96 A at 180 V PowerVault MD1000 expansion module Wattage 488 W maximum continuous; 550 W peak Heat dissipation 200 W Voltage 100-240 V rated (actual 90-264 V) Frequency 47-63 Hz Amperage 7.2 A at 100 V, 3.6 A at 200 V | |
| Available Hard Drive Power (per slot) | |
| Supported continuous consumption Up to 1.3 A at +12 V; Up to 1.5 A at +5 V | |
| Physical | |
| PowerVault MD3000 Control Module Height 13.11 cm (5.16 inches) Width 44.63 cm (17.57 inches) Depth 48.01 cm (18.9 inches) Weight 35.37 kg (78 lb) (maximum configuration) PowerVault MD1000 expansion module Height 13.11 cm (5.16 inches) Width 44.63 cm (17.57 inches) Depth 48.01 cm (18.9 inches) Weight 35.37 kg (78 lb) (maximum configuration) | |
| Environmental | |
| Temperature: Operating: 10° to 35°C (50° to 95°F) Storage: -40° to 65°C (-40° to 149°F) Relative humidity Operating: 20% to 80% (non-condensing) Storage: 5% to 95% (non-condensing) Altitude Operating: -15 to 3048 m (-50 to 10,000 ft) Storage: -15 to 10,668 m (-50 to 35,000 ft) Thermal Output 1430 BTU/hour (Maximum) | |
| Supported Operating Systems | |
Microsoft Windows Server 2008 Microsoft Windows 2003 32-bit Standard Server and Enterprise Edition Microsoft Windows 2003 64-bit Edition Microsoft Windows 2000 Standard and Advanced Server Red Hat Linux SUSE Linux Enterprise Server Microsoft Windows 2003 32-bit 2 node clusters Microsoft Windows Storage Server 2003 | |
Click here to view the manufacturer's item description/brochure
Weight: 80 lb
