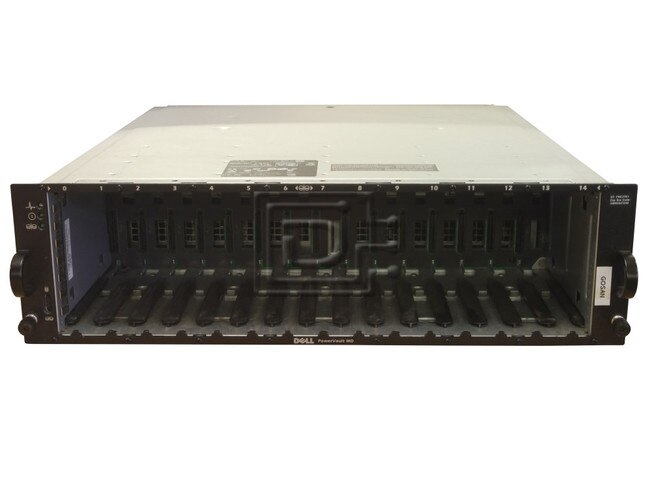

Dell Powervault MD3000i SAS SATA iSCSI Storage Array

Dell Part #/MPN: MD3000i

DiscTech Item #: DEL-MD3000I-RF-OE


Enterprise Grade

Interface Types: SAS Serial Attached SCSI, SATA, SCSI 80pin SCA-2 Hot-Swap, Ethernet RJ45, PS2

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

Bays/Ports/Slots: 15

Wattage/VA: 150W

Voltage: 110-240V Multi

Dell Powervault MD3000i SAS/SATA iSCSI Storage Array - 15 Bays - Single EMM RAID Controller - Refurbished

The Dell PowerVault MD3000i can consolidate up to sixteen (16) fully redundant servers, expand to support up to 45TB of data and provides wizard based installation, intuitive management, and advanced data protection software.

It’s Simple: Simple enough for non-IT experts to deploy and manage
It’s Capable: Capable of scaling and protecting your data
It’s Affordable: Affordable, so that cost doesn’t prohibit you from storing your critical business data.

System Features
This section describes the major hardware and software features of your system. It also provides information about other documents you may need when setting up your system and how to obtain technical assistance.
Performance Features
  • 667-MHz Intel® XScale® processor
  • 512-MB high-speed data cache memory Scalability Features
  • Capacity for 15 1-inch, hot-plug, 3.0-Gbps, serial-attached SCSI (SAS) physical disks.
  • Support for up to two daisy-chained storage enclosures for a total of 45 physical disks.
  • Controller capable of supporting sessions from 32 iSCSI initiators (16 hosts with redundant connections) simultaneously with multiple connections per session. For more information, refer to the Dell PowerVault MD Systems Support Matrix at
  • Support for a wide range of servers. (For additional support information, refer to the Dell PowerVault MD Systems Support Matrix at
  • Support for both simplex (single controller) and duplex (dual controller)* array configurations.  *2nd controller optional.
Availability Features
  • Up to two active/active RAID controller modules (duplex configuration) for redundant data and system management capability; simplex configuration also available
  • Battery backup unit (BBU) to power the RAID controller system memory (cache) for a minimum of 72 hours in case of a power outage

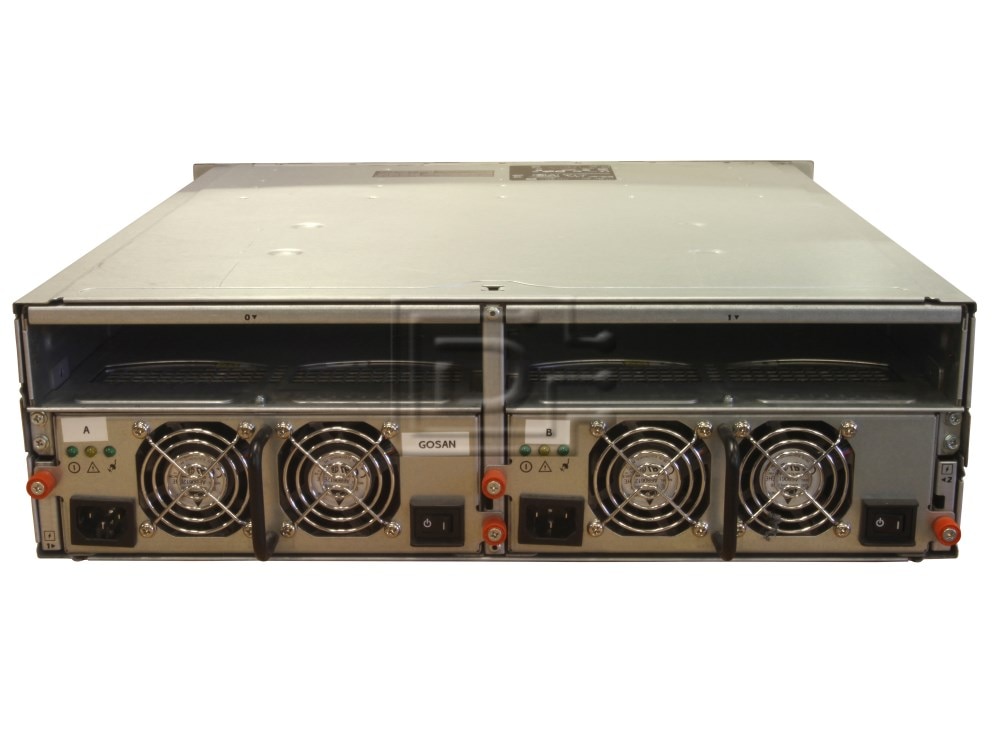

  • Redundant hot-plug power supply and cooling modules that are combined for easy serviceability
Manageability and Serviceability Features
  • Efficient rack-mount designed storage system
  • Hot-pluggable drives
  • Four sensors for monitoring ambient temperatures
  • Over-temperature shutdown protection capability
  • Configuration and monitoring via the MD Storage Manager software

Click here to view the manufacturer's item description/brochure

Weight: 80 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
