Western Digital Part #/MPN: 0F38377
DiscTech Item #: WDC-0F38377-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 18TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 243/255
Average Seek Time: 8.0/8.6
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 256MB
Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

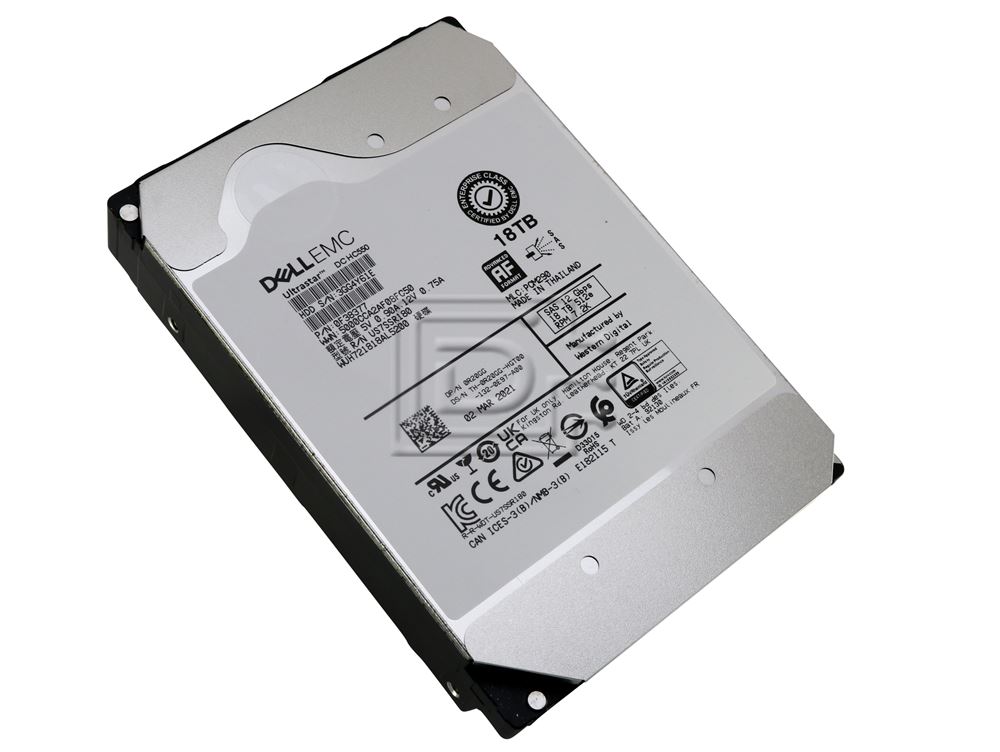

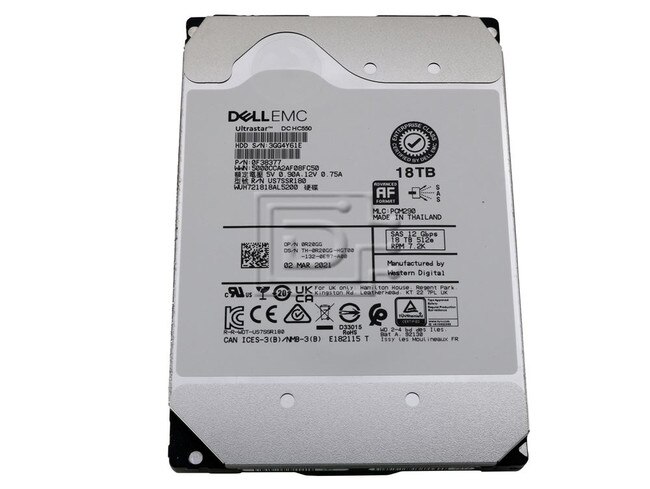

Dell R20GG / Western Digital UltraStar DC HC550 0F38377 WUH721818AL5200 18TB 3.5" 12Gbps 7.2K RPM 512e SAS HDD - Brand New OEM
Dell R20GG / Western Digital UltraStar DC HC550 0F38377 WUH721818AL5200 18TB 3.5" 12Gbps 7.2K RPM 512e SAS Hard Disk Drive with Instant Secure Erasure
DP/N:
Total Cost of Ownership (TCO) Drives the Data Center Architecture
Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. An 18TB data center HDD provides 29% more capacity in the same form factor as a 14TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs requires 22% fewer racks while consuming 21% less power per TB at idle, resulting in significant overall TCO reduction for data center environments.
Raising the Capacity Bar with New Technologies
Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 18TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption.
• The first HDD in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density.
• The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density.
• HelioSeal® technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of Hel
Trusted Reliability and Quality for Data at Scale
With its massive capacity and 2.5M MTBF (projected) reliability rating, the Ultrastar DC HC550 is ideal for object storage implementations. Object storage systems with erasure coding provide better data durability compared to RAID systems, given their tolerance for simultaneous error conditions. The DC HC550 offers security and encryption options to help protect data from unauthorized use, including SED models in both SATA & SAS. A SED-FIPS will be available in a SAS configuration. Trust Western Digital and the Ultrastar DC HC550 hard drive to deliver highest capacity, lower TCO and more value to your data center
Highlights
• 18/16TB capacity¹ in a standard 3.5-inch form factor
• CMR technology works with all capacity enterprise applications & environments
• Reliable, field-proven, 6th generation design
• Industry’s first HDD with Energy-Assisted Magnetic Recording technology
• Industry’s first Triple Stage Actuator
• HelioSeal® design delivers outstanding power efficiency
• 2.5M hours (projected) MTBF² rating & 5-year limited warranty
• Self-Encrypting Drive Options
Applications
• Cloud & Hyperscale storage
• Massive scale-out (MSO), high-density data centers
• Distributed File Systems
• Bulk storage using object storage solutions like Ceph™ and OpenStack® Swift
• Primary and secondary storage for Apache Hadoop® for Big Data Analytics
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in Large Capacity 12Gb/s SAS Drives.
Ultrastar He8 | |
---|---|
Model/Part No. | 0F38377 |
Alt Model/Part No. | WUH721818AL5200 / R20GG |
Configuration | |
Capacity | 18TB/18000GB |
Interface | SAS 12Gb/s |
Format : Sector size (bytes) | 512e: 512 |
Max. Areal density (Gbits/sq. in) | 918 |
Performance | |
Data buffer (MB) | 512 |
Rotational speed (RPM) | 7200 |
Latency average (ms) | 4.16 |
Interface transfer rate (MB/s, max) | 1200 |
Sustained transfer rate (MB/s, typ.) (MiB/s, typical) | 269 257 |
Workloads | Up to 550 TB / year |
Reliability | |
Error rate (non-recoverable, bits read) | 1 in 10E15 |
Load/Unload cycles (at 40°C) | 600,000 |
Availability (hrs/day x days/wk) | 24x7 |
MTBF (M hours) | 2.5 |
Annualized Failure Rate (AFR) | 0.35% |
Acoustics | |
Idle (Bels, typical) | 2.0/3.6 |
Power | |
Requirement | +5 VDC +12 VDC |
Operating | 8.8 |
Idle (W) | 5.8 |
Power consumption efficiency at idle (W/TB) (Watts/TB) | 0.32 0.00032 |
Physical size | |
z-height (mm) | 26.1 |
Dimensions (width x depth, mm) | 101.6 (+/- 0.25) x 147 |
Weight (g, max) | 690 |
Environmental (Operating) | |
Ambient temperature | 5°C to 60°C |
Shock (half-sine wave, 2 ms, G) | 50 |
Vibration (G RMS 5 to 500 Hz) | 0.67 (XYZ) |
Environmental (Non-Operating) | |
Ambient temperature | -40°C to 70°C |
Shock (half-sine wave, G) | 250 (2ms) |
Random Vibration (G RMS 2 to 200 Hz) | 1.04 (XYZ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: WUH721818AL5200 R20GG 0R20GG
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
