Dell Part #/MPN: R47DY
DiscTech Item #: DEL-R47DY-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 32GB
Speed: Solid State Memory
Interface Types: SATA
Sector Size: 512 / 512e
Sustained Throughput: 240MB/s Read and 160MB/s Write
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: SLC

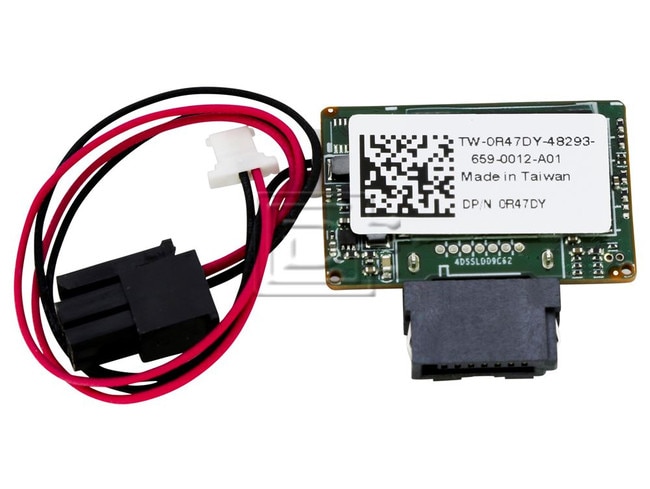

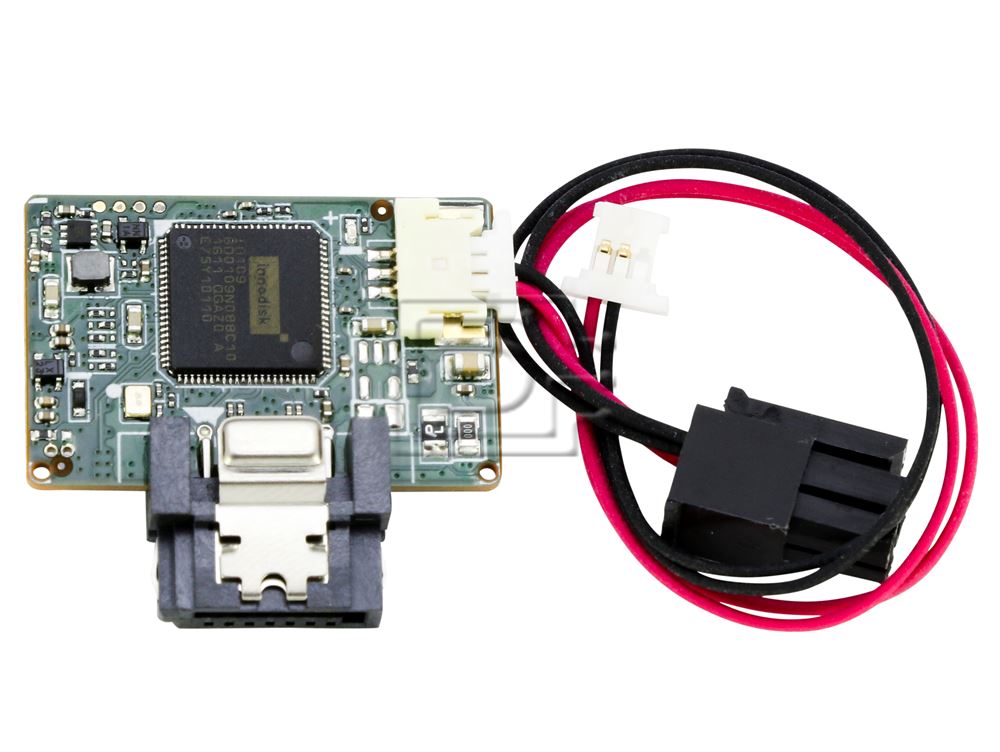

Dell R47DY / Innodisk SATADOM-SL 3IE3 V2 32GB SLC SATA 6Gbps Industrial SSD - Brand New
Overview:
- iSLC technology
- Built-in Pin 8 power supply
- Best boot drive solution for server and embedded system
- SATA 6Gbp/s interface
- High IOPS to reduce boot up timing
- DRAM-less, 100% data integrity
- Innovative Firmware Algorithm
- Anti-vibration mechanical design
- Built in iData Guard
Innodisk Serial ATA Disk on Module (SATADOM) support SATA III standard (6.0Gbps) interface with excellent performance and SATADOM-SL 3IE3 V2 is designed as the smallest form factor size that could enhance compatibility with various design applications
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customers’ system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
Compatibility: Specific Industrial Systems and Rack Servers including...
- R630
Mfgr / Model Name | Innodisk SATADOM-SL 3IE3 V2 |
Interface | SATA III 6.0 Gb/s |
Flash Type | iSLC |
Type | Vertical |
Capacity | 32GB |
Sequential R/W (MB/sec, max.) | 240/160 |
Max. Power Consumption | 0.8W (5V x 173mA ) |
Max. Channels | 2 |
Thermal Sensor | Wide Temp. only |
H/W Write Protect | N |
Pin 7 Power | Y |
Pin 8 Power | Y |
S.M.A.R.T. | Y |
ATA Security | Y |
Dimension (WxLxH/mm) | 30.0 x 28.4 x 7.4 |
Vibration | 20G@7~2000Hz |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Storage Temperature | -55°C ~ +95°C |
Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0R47DY SATADOM-SL 3IE3 V2
Weight: 0.25 lb
