Seagate Part #/MPN: ST6000NM0095
DiscTech Item #: SGT-ST6000NM0095-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:30Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 6TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: up to 226
Average Seek Time: 4.16
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 256MB

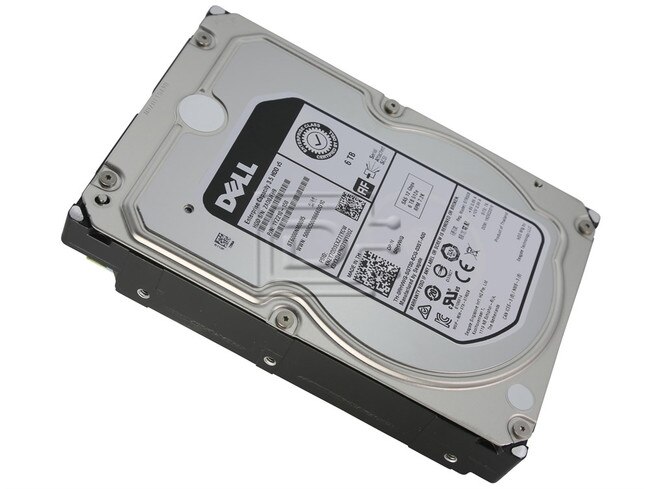

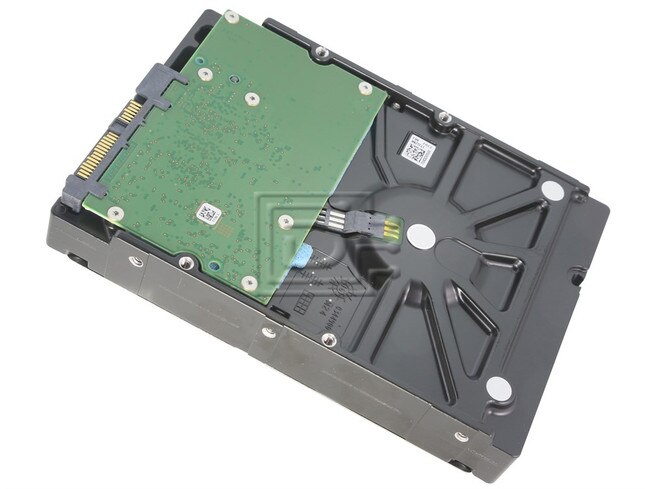

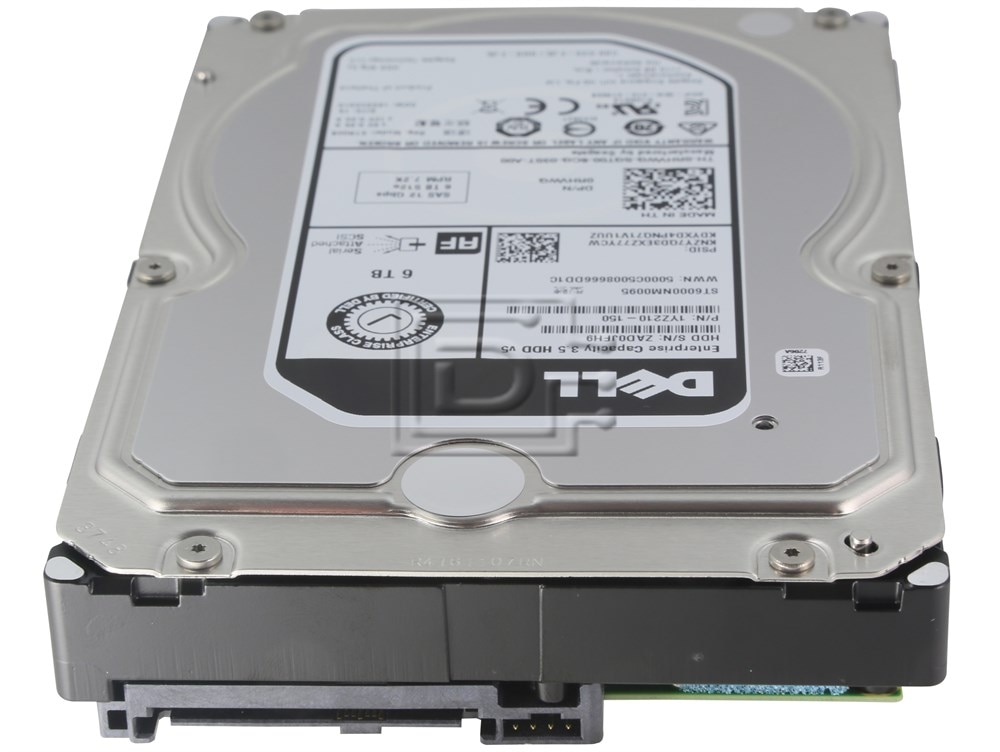

Dell RHVWG / Seagate ST6000NM0095 6TB 3.5" 6.0 Gbps 7.2K RPM Enterprise Serial Attached SCSI Hard Disk Drive - Brand New
Alt MPN: 1YZ210, 1YZ210-150
DPNs: 0RHVWG, RHVWG
Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- 1TB to 8TB 1 , 3.5-inch enterprise drive with industry-leading CMR technology, for maximum storage per storage slot
- Advanced Write Caching feature utilizes enhanced algorithms, resulting in the industry's highest nearline storage workload performance efficiencies
- Reliable access to unstructured data in bulk storage applications
- 12Gb/s SAS and SATA 6Gb/s interfaces in industry-standard formats (512n, 512e and 4Kn) for easy integration into replicated and RAID multi-drive storage servers and systems
- State-of-the-art cache, on-the-fly error-correction algorithms, super parity and end-toend SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration design helps ensure consistent performance in dense multi-drive systems
- Engineered for 24×7 workloads of 550TB/yr—10× that of desktop drives
- Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis
- On-demand PowerBalance™ feature available for lower power/performance in random read/write environments
- Seagate Secure® Self-Encrypting Drive featuring Instant Secure Erase for cost-saving drive retirement and secure data-at-rest protection .
Best-Fit Applications
- Hyperscale applications
- High-capacity RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Cloud data centers—replicated bulk data storage
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5" x 1.0" (LFF) SAS Large Capacity hard drives.
| Drive Model | ST6000NM0095 |
|---|---|
| Capacity | 6TB/6000GB |
| Interface | SAS 12Gbps |
| Self-Encrypted Drive | No |
| Features | |
| Protection Information (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.0M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 512, 520, 528 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s) | up to 226 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 8.37 |
| Average Operating, (W) | 9.2W |
| Power Supply Requirements | +12V and +5V |
| Enviromental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 4.9 |
| Shock, Operating, 2ms (Read/Write) (Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 250 |
| Physical | |
| Height (mm/in) | 26.1/1.028 |
| Width (mm/in) | 101.85/4.010 |
| Depth (mm/in) | 147/5.878 |
| Weight (g/lb) | 705/1.55 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1YZ210 1YZ210-150 0RHVWG RHVWG
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
