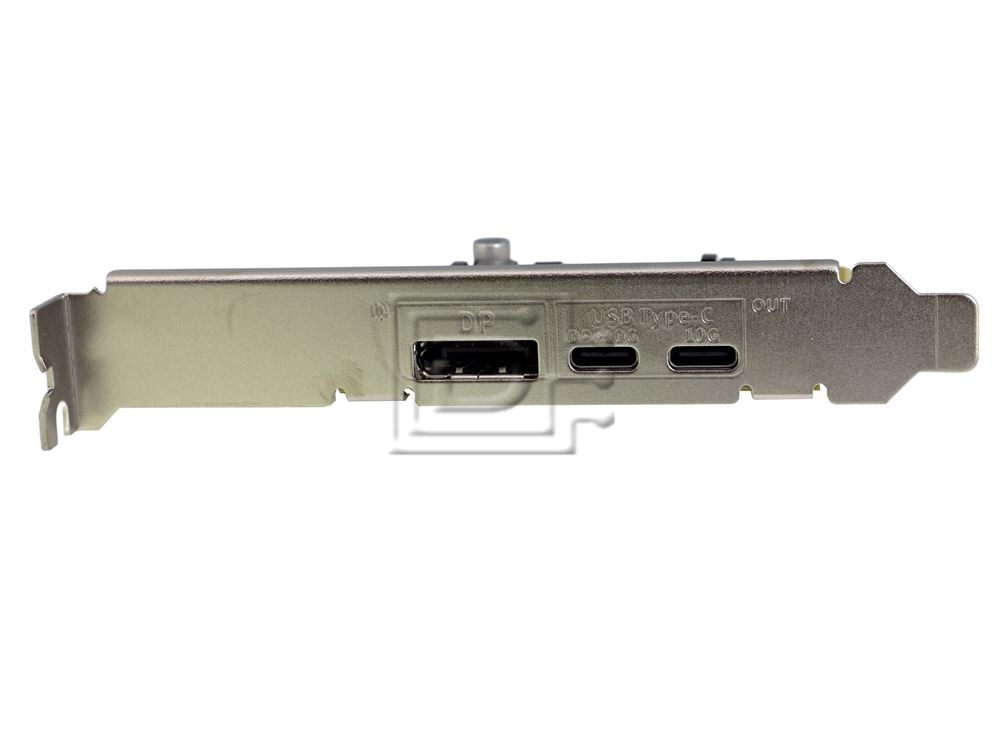

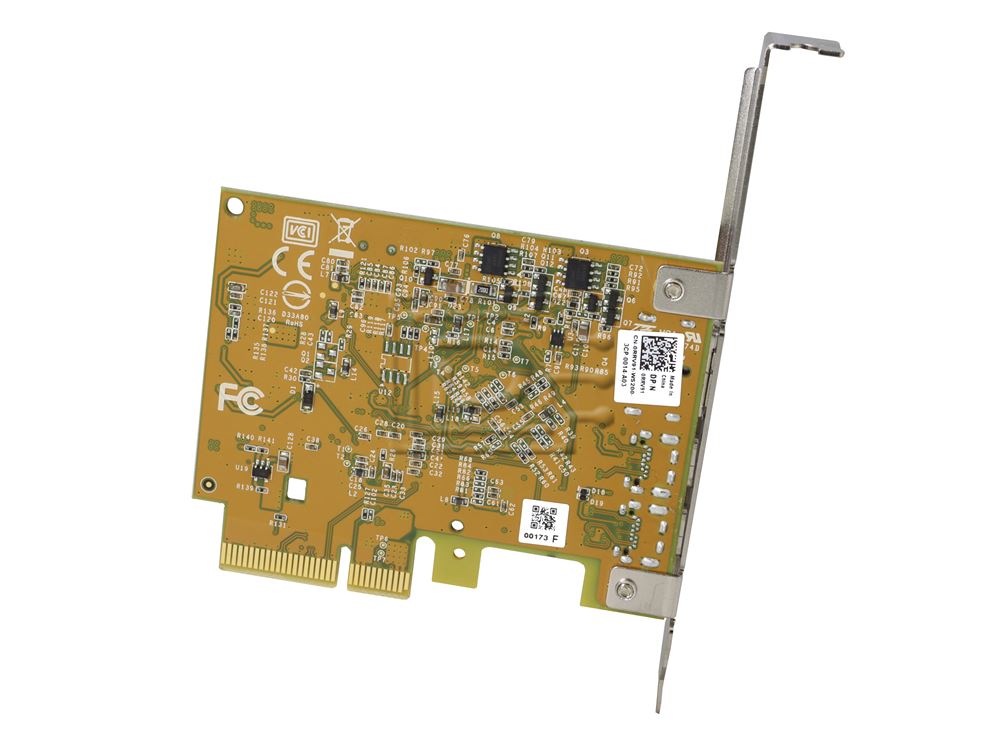

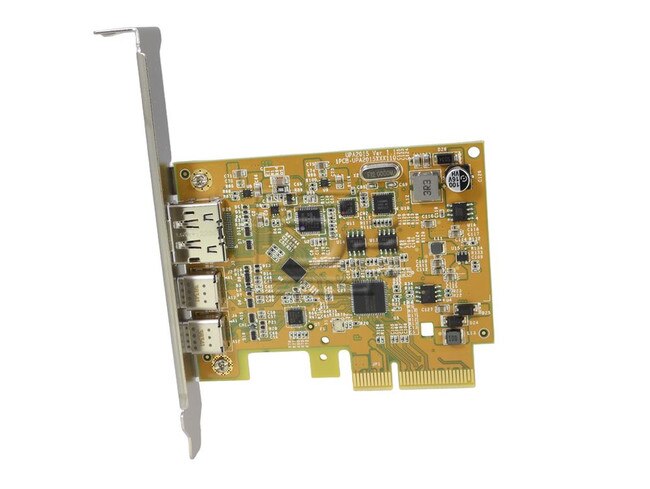

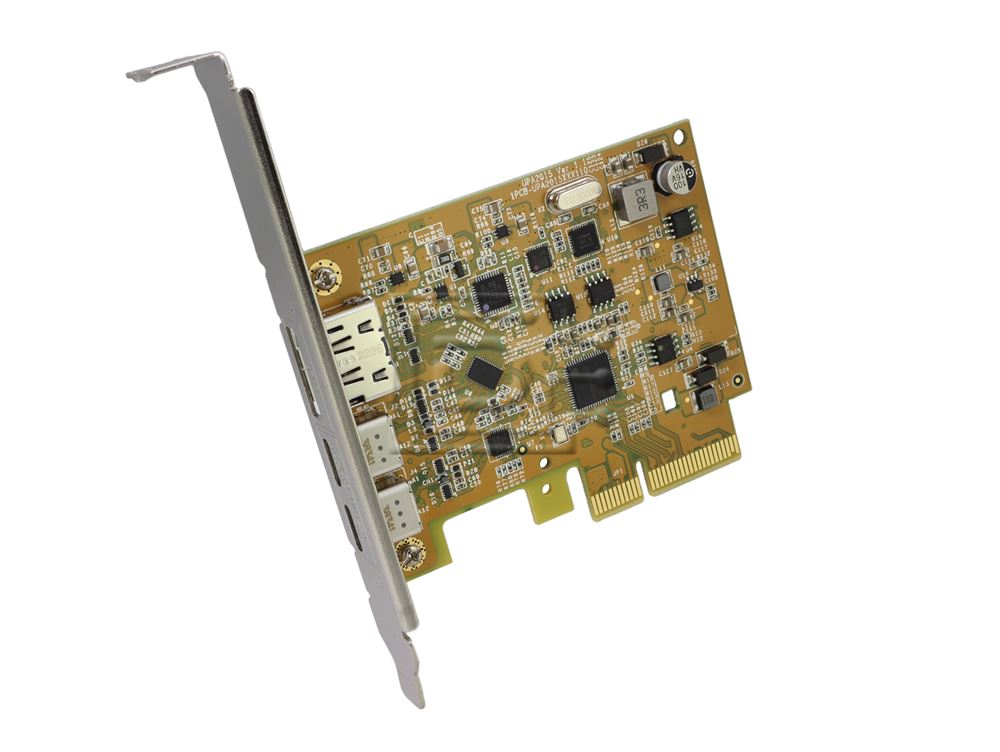

Dell RRV91 UPA2015 USB 3.2 PCIe Expansion Card 2x Type C Ports 1x Display Port High Profile
- In Stock:80Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
$39.99
| Interface Types: | USB Type C |
| Electrical Interface: | USB 3.2 G2x1 - 10Gbps |
Description
Dell RRV91 UPA2015 USB 3.2 PCIe Expansion Card 2x Type C Ports 1x Display Port High Profile- Brand New
USB3.2 Gen2 10G & DisplayPort Alt-Mode PCI Express Host Card with Dual USB Type-C Receptacles
- PCI Express Base Specification Revision 3.0 two-lane (x2).
- Expands dual external USB3.2 Gen2 Super-Speed plus Type-C port (DFP) on the system.
- Compliant with Universal Serial Bus 3.2 specification Gen2.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
- Supports simultaneous operation of multiple USB 3.2 Gen2/Gen1, USB 2.0 and USB 1.1 devices.
- Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
- Independent 10G USB PHY for each USB Type-C port.
- USB port supplies +5VDC / 1.5A power output to USB device with over current protection.
- Compliant with DisplayPort 1.4 spec with HDTV 4K (2160p) resolution and stereoscopic 3D.
- One USB-C compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.
- Hot-swapping feature allows connect/disconnect device without powering down the system.
- Driver supports for Microsoft Windows 8.x, 10 and 11 operation systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
[ NOTICE ]
- UPA2015 Does NOT apply to PCIE X1 slot.
- UPA2015 Does NOT support USB Power Delivery (PD).
- UPA2015 Is Not compatible with Thunderbolt 3/4 devices.
- Confirm your device's USB-C port supports DP Alt Mode.
Specifications
Specifications
Hardware
| BUS | PCI Express Spec 3.0x2, (compliant with x4/x8/x16 slot) |
|---|---|
| Controller | PCI Express USB 3.2 Gen2 Host controller, Asmedia ASM3142 |
| USB Standard | eXtensible Host Controller Interface (xHCI) Rev1.1 |
| IRQ & IO | Assigned by System |
USB Communication
| Interface | Universal Serial Bus 3.2 Gen2 / Gen1 / 2.0 / 1.1 |
|---|---|
| Speed | SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps) |
| No. of Port | 2-port |
| PCB Connector | USB 3.1 USB Type-C port (Downstream Facing Port) |
| Protection | ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge |
Video / Audio
| Input Interface | Standard DisplayPort Female, DisplayPort Ver1.4/1.2 |
|---|---|
| Output Interface | USB Type-C (Only 1 port supports video output) |
| Audio | Yes (audio pass-through) |
Power
| Source | PCI Express Bus Power |
|---|---|
| Output Capacity | USB Type-C Port: Power Delivery +5VDC / 1.5A / each port Note: Total power output capacity will be limited by system power supply. |
| Over Current Protection | USB Type-C Port: +5VDC / 1.5A / each port / Power Switch |
| Power Consumption | 3.0W @ 3.3V (board only without power output to USB device) |
Driver Support
| Windows | Windows 8.x / 10 (X86/X64) / 11 (Windows in-box driver) |
|---|
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0RRV91 TX5M0 0TX5M0 UPA2015 UPD2018
Weight: 1 lb
