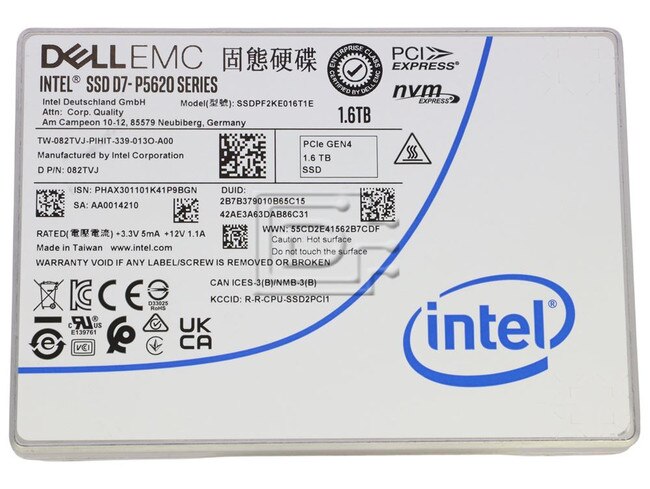

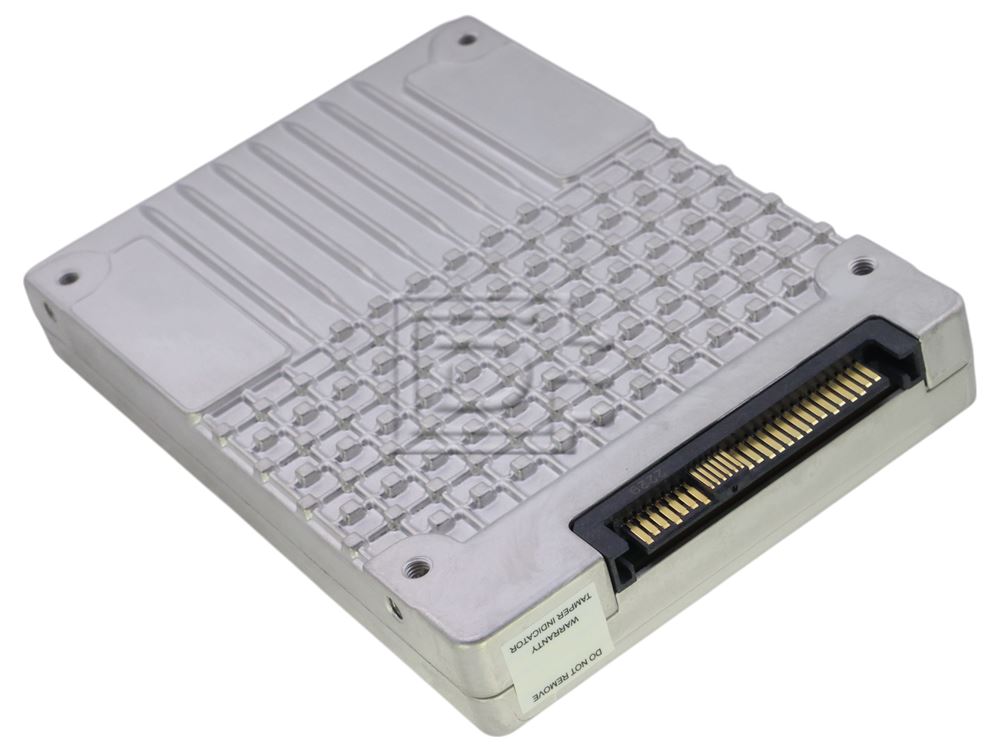

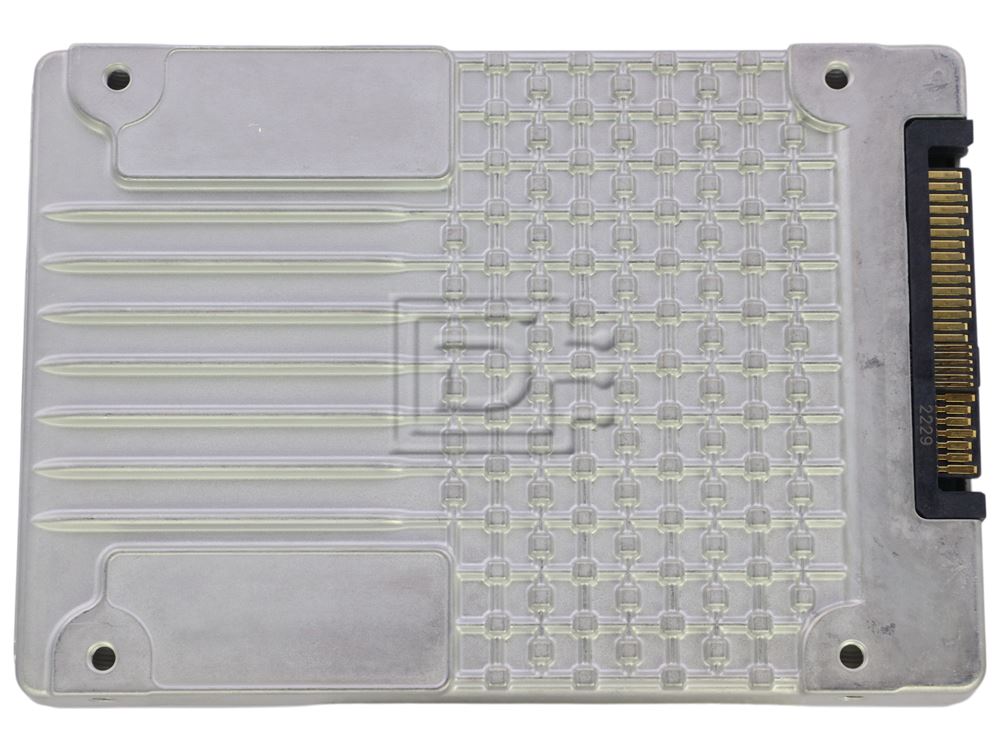

Dell EMC 82TVJ Intel SSDPF2KE016T1E 1.6TB 2.5" SFF TLC DC P5620 Series Mixed Use PCIe 4.0 NVMe U.2 Solid State Drive
| Capacity: | 1.6TB |
| Speed: | Solid State |
| Interface Types: | NVMe U.2 |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | PCIe 4.0 32GBps |
Description
Dell EMC 82TVJ Intel SSDPF2KE016T1E 1.6TB 2.5" SFF TLC DC P5620 Series Mixed Use PCIe 4.0 NVMe U.2 Solid State Drive - New Pull
Dell EMC 82TVJ Intel SSDPF2KE016T1E 1.6TB 2.5" SFF TLC DC P5620 Series Mixed Use PCIe 4.0 NVMe U.2 Solid State Drive - New Pull
The Highest Performance for the Most Demanding Workloads
At the top of our highest-performing SSD series, the Solidigm D7-P5620 is the industry’s most advanced PCIe product, performance-tuned for the real world. It’s designed with the highest endurance and tested with zero tolerance for data errors while delivering consistently durable performance.
Accelerate Your Write-Intensive and Mixed Workloads
For highly random, mixed-workload environments requiring low latency for improved user experience, the D7-P5620 delivers consistently amazing response time. For server-based storage solutions using virtualization software with random and sequential read/writes, it offers substantial random read IOPS and increases sequential write throughput.
Deploy With Confidence
Solidigm D7 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with PLI testing that simulates real-world conditions. Consistency is key, and this SSD provides up to 90% IOPS consistency and <0.3% IOPS variability over the life of the drive.
Product Details
- Capacity: 1.6 TB
- Form Factor: U.2 15mm
- Interface: PCIe 4.0 x4, NVMe
- Weight: 165g +/- 5g
- Lithography Type: 144L TLC 3D NAND
- Use Conditions: Server/Enterprise
Compatibility:
This drive is compatible with servers and arrays that accept 2.5” 15mm SFF PCIe 4.0 NVMe U.2 drives
Specifications
Product Specifications
| Specification | Details |
|---|---|
| Capacity | 1.6 TB |
| Form Factor | U.2 15mm |
| Interface | PCIe 4.0 x4, NVMe |
| Weight | 165g +/- 5g |
| Lithography Type | 144L TLC 3D NAND |
| Use Conditions | Server/Enterprise |
| Random Read (100% Span) | 700000 IOPS (4K Blocks) |
| Random Write (100% Span) | 200000 IOPS (4K Blocks) |
| Power - Active | 13W |
| Power - Idle | 5W |
| Latency - Random Read (typ.) | 75μs |
| Latency - Random Write (typ.) | 15μs |
| Latency - Sequential Read (typ.) | 10μs |
| Latency - Sequential Write (typ.) | 13μs |
| Sequential Bandwidth - 100% Read (up to) | 5300 MB/s |
| Sequential Bandwidth - 100% Write (up to) | 1900 MB/s |
ROHS Compliant
Alternate MPNs: 082TVJ 82TVJ
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
