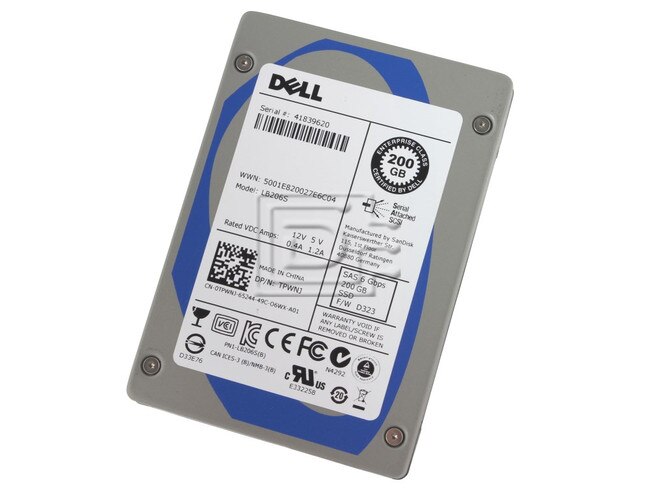

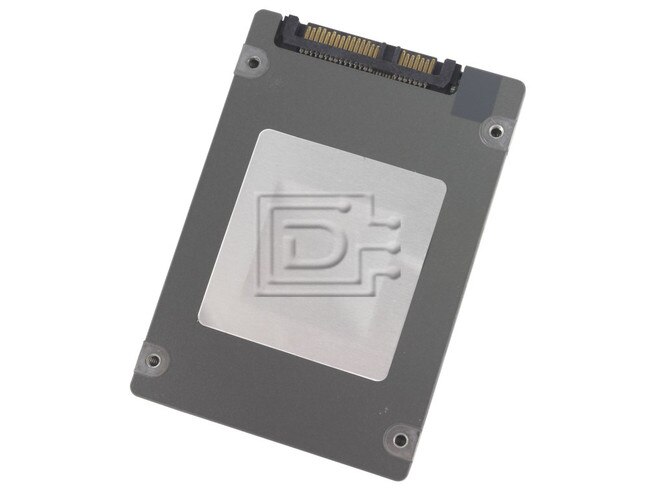

Dell SanDisk Lightning LB206S / TPWNJ 200GB Enterprise SAS SSD

SANDISK Part #/MPN: LB206S

DiscTech Item #: SAN-LB206S-BN-OE-DEL


$649.00
$649.00

Enterprise Grade

Capacity: 200GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 450

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

SSD Type: SLC

SSD Endurance DWPD: Enterprise Write Intensive

Dell SanDisk Lightning Write Intensive LB206S / TPWNJ 200GB SLC 6.0 Gbps 2.5in SFF Enterprise High-Endurance SAS Solid State Drive - Brand New OEM

Alt MPN: SDLB6HS-200G
Alt DPN: 0TPWNJ

IT Managers are consistently challenged with the demand for higher performance and increased storage capacity for today’s data centers. Over time, HDDs have suffered from a performance decline creating a performance vacuum that SSDs can fulfill by acting as storage network accelerators. Enterprise SSDs provide substantial performance and footprint benefits over traditional HDDs. This enables IT service providers to replace hundreds of HDDs with a single SSD, realizing significant cost savings, while creating a more efficient and reliable network.

Since not all data centers are created equal, the key to achieving increased data and system performance is in understanding the specific application workload. Lightning Write-Intensive 6Gb/s (SAS) SSDs offer solid cost-to-performance benefits optimized for data management and endurance of high-speed storage and server environments. Available in 200GB and 400GB capacities, Lightning Write-Intensive SSDs provide an I/O pattern designed around frequent writes for application workloads such as Data Warehousing, High Performance Computing (HPC), Media Editing, Analytics and Database Logging, with a heavy workload comprised of a 50/50 read/write mix.

SSD performance is dependent on the grade of NAND flash memory used, and sophistication of the controller and firmware. Lightning Write-Intensive SSDs are designed with an advanced innovative controller that uses a parallel processing architecture with single firmware binary to provide the industry’s leading sustained performance, low response times under peak conditions for predictable performance, and proven and tested endurance for superior reliability. Lightning SSDs have been designed to meet demanding, mission critical, 24/7 applications.

Lightning SSD Benefits

  • High Performance
  • Superior Reliability
  • Predictable Performance

Application Workloads

  • Data Warehousing
  • High Performance Computing
    • Oil and Gas
    • Life Sciences
    • Aerospace
    • Engineering
  • Media Editing
  • Analytics
  • Database Logging

Compatibility:

This drive is compatible with any server that accepts small form factor (SFF) SAS drives.

Lightning Write-Intensive 6Gb/s SAS Enterprise SSDs
Model NumberLB206S
Interface, Capacity, and Memory Technology
Host Interface6Gb/s SAS
Interface PortsDual (2) full-duplex
Form Factor2.5 inch SFF
User Capacities200GB
Sector Sizes Supported 512, 520 or 528 bytes/sector
Reliability
Unrecovered Bit Error Rate (UBER)<1 sector in 10^17 bits read
End-to-End Data ProtectionNo performance impact
Patrol Read (automatic)No performance impact
Power-on Hours8760 hours per year
MTBF2 million hours
Physical Dimensions
Height (max)15.0 mm
Width (max)70.1 mm
Length (max)100.45 mm
Weight0.238 Kg
Power Consumption
Idle3.9 watts
Typical5.9 watts
Environment
Operating Temperature (ambient)0 to 60° C
Non-operating Temperature-40 to 85° C
Start-up time (Power-On to Ready)<15 seconds

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: TPWNJ 0TPWNJ SDLB6HS-200G

Weight: 0.5 lb

Warranty: 1 Year DiscTech
