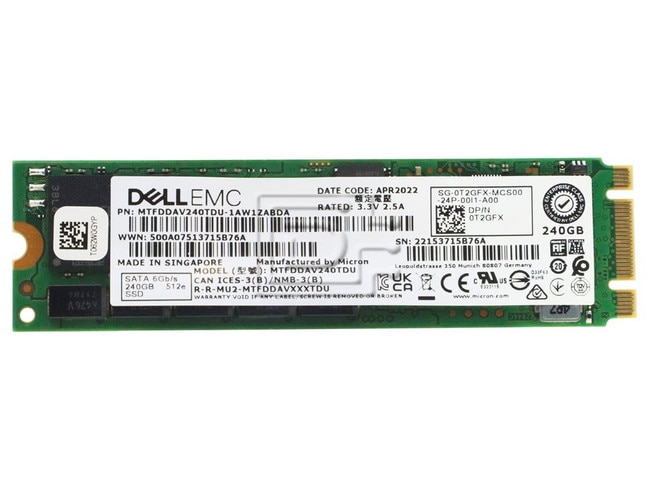

Dell T2GFX / Micron 5300 MTFDDAV240TDU-1AW1ZABDA 240GB SATA M.2 2280 3D eTLC NAND Solid State Drive

Dell T2GFX / 400-BLCL / Micron 5300 MTFDDAV240TDU-1AW1ZABDA 240GB SATA M.2 2280 3D eTLC NAND Solid State Drive - Brand New

Dell T2GFX / 400-BLCL / Micron 5300 MTFDDAV240TDU-1AW1ZABDA 240GB 6.0 Gb/s 3D eTLC / Enterprise Triple Level Cell NAND Flash MU / Mixed Use 1.5-DWPD / Drive Writes Per Day SATA / Serial ATA / M.2 2280 SSD / Solid State Drive - Brand New

Alt Model#: MTFDDAV240TDU-1AW1ZABDA 400-BLCL

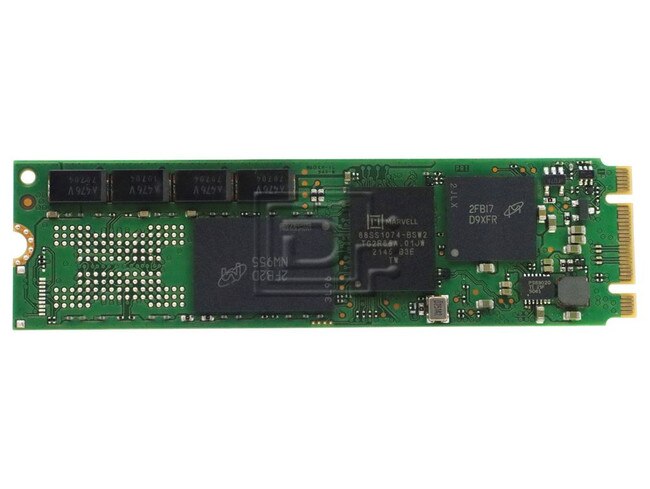

Micron’s 5300 solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and four channels of Micron NAND Flash internally. Available in both M.2 and 2.5-inch form factors, the SSD integrates easily in existing storage infrastructures.

The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption and extended reliability.

The self-encrypting drive (SED) features a AES-256 encryption engine, providing hardware-based, secure data encryption, with no loss of SSD performance. This SED follows the TCG Enterprise specification for trusted peripherals. When TCG Enterprise features are not enabled, the device can perform alternate data encryption by invoking the ATA security command set encryption features, to provide full disk encryption (FDE) managed in the host system BIOS. TCG Enterprise and ATA security feature sets cannot be enabled simultaneously.

The data encryption is always running; however, encryption keys are not managed and the data is not secure until either TCG Enterprise or ATA security feature sets are enabled.

Features

• Micron® 3D TLC NAND Flash
• Three performance/endurance levels
  • ECO
  • PRO
  • MAX
• TCG Enterprise compliant self-encrypting drive (SED)
• SATA 6 Gb/s interface
• ATA modes supported
  • PIO mode 3, 4
  • Multiword DMA mode 0, 1, 2
  • Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
• 512-byte sector size support
• Hot-plug capable (2.5-inch only)
• Native command queuing support with 32-command slot support
• ATA-8 ACS-3 revision 5 command set compliant
• ATA security feature command set and password login support
• Security erase command set: fast and secure erase
• Performance (steady state)
  • Sequential 128KB read: Up to 540 MB/s
  • Sequential 128KB write: Up to 520 MB/s
  • Random 4KB read: Up to 93,000 IOPS
  • Random 4KB write: Up to 74,000 IOPS
• Quality of Service
  • Read/Write (99.9%): 500µs/500µs
  • Read/Write (99.999%): 9ms/5ms
• Endurance : Total bytes written (TBW)
  • ECO: Up to 8,400TB
  • PRO: Up to 17,600TB
  • MAX: Up to 17,600TB
• Reliability
  • MTTF: 3.0 million device hours
  • Static and dynamic wear leveling
  • Uncorrectable bit error rate (UBER): <1 sector per 10e17 bits read
  • End-to-end data protection
  • Enhanced power-loss data protection with data protection capacitor monitoring
• Self-monitoring, analysis, and reporting technology (SMART) command set
• Capacity (unformatted): 240GB, 480GB, 960GB, 1920GB, 3840GB, 7680GB
• Mechanical:
  • 2.5-inch x 7.0mm form factor
  • M.2 Type 2280 form factor
• RoHS-compliant package
• Secure field-upgradeable firmware with digitally signed firmware image
• Power consumption:
  • 240GB/480GB: <4.5W(TYP)
  • 960GB: <5.0W(TYP)
  • 1920GB: <5.5W(TYP)
  • 3840GB / 7680GB: <6.0W(TYP)
• Operating temperature
  • Commercial (0°C to 70°C)

Compatibility:

This drive is compatible with servers and arrays that accept M.2 2280 SATA SSD solid state drives drives

ROHS Compliant

Alternate MPNs: T2GFX 0T2GFX 400-BLCL

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

1 Year DiscTech Warranty
