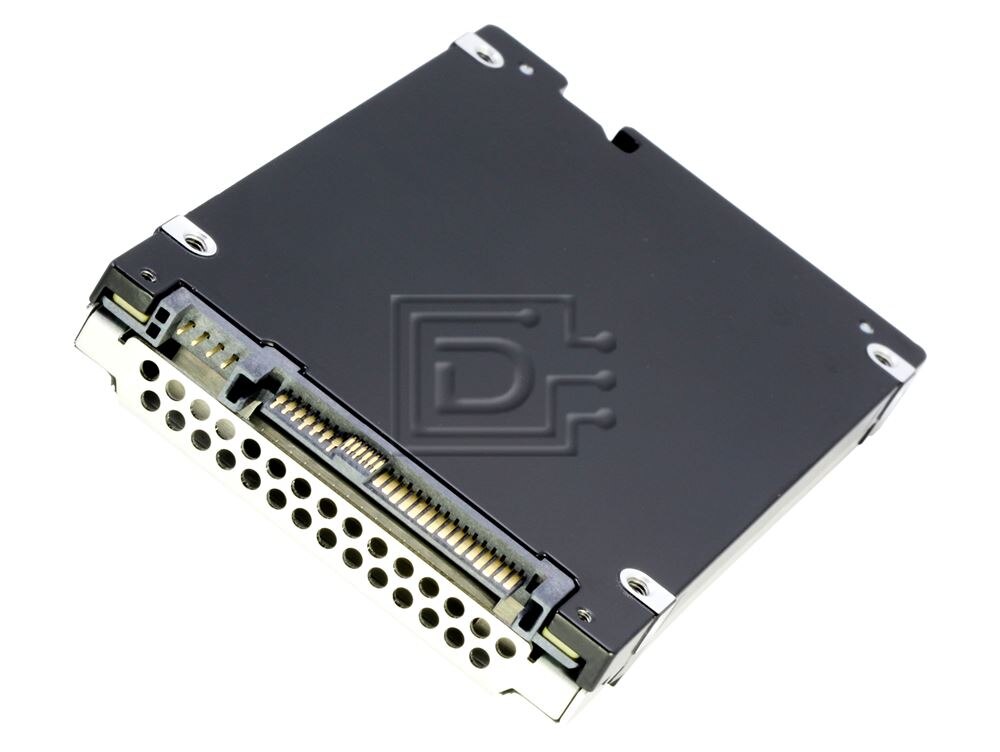

Dell TDNP7 / Toshiba KPM5XRUG1T92 1.92TB 2.5 SFF SSD ME4
| Capacity: | 1.92TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell TDNP7 / Toshiba KPM5XRUG1T92 1.92TB 2.5 SFF 12Gbps RI SAS Solid State Drive - Certified 95
KIOXIA
PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 30.72 TB.
Key Features
12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
Capacities from 480 GB to 30.72 TB
T10 Multi-Stream Write support
Up to 385 K random read IOPS (4 KiB) in dual port mode
2.5-type form factor, 15 mm Z-height
1 DWPD with 100 % Random Write Workload
Power loss protection and end-to-end data protection, including T10 DIF
Pin-3 power disable support
Sanitize Instant Erase (SIE) *option
Self-Encrypting (SED) *option
Self-Encrypting (SED) with FIPS certification *option
Key Applications
Media streaming
Data warehousing
Web servers
Video on demand (VOD)
DPN: TDNP7 / 0TDNP7
* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.
* SED drive is conformed to TCG enterprise SSC.
* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.
Compatibility:
This drive is designed to work in the Dell ME4 series arrays. This includes the ME4012, ME4024, ME4084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.
Specifications
| Toshiba / Kioxia Enterprise Read Intensive SSD | |
|---|---|
| Model Number | KPM5XRUG1T92 TDNP7 0TDNP7 |
| Capacity | 1.92TB / 1920 GB |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | TLC |
| Sustained 64KiB Sequential Read | 2100 MiB/s |
| Sustained 64KiB Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read | 340,000 IOPS |
| Sustained 4KiB Random Write | 55,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 3 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature ( Operating ) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: TDNP7 0TDNP7
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Certified 95
Warranty
1 Year DiscTech Warranty
