Toshiba Part #/MPN: PX02SMF040
DiscTech Item #: TOS-PX02SMF040-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 900
Average Seek Time: 0.2
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Toshiba PX02SMF040 400GB 2.5" SAS 12Gbps eMLC Enterprise Mixed-Use 10-DPWD SSD Solid State Drive - New Pull OEM

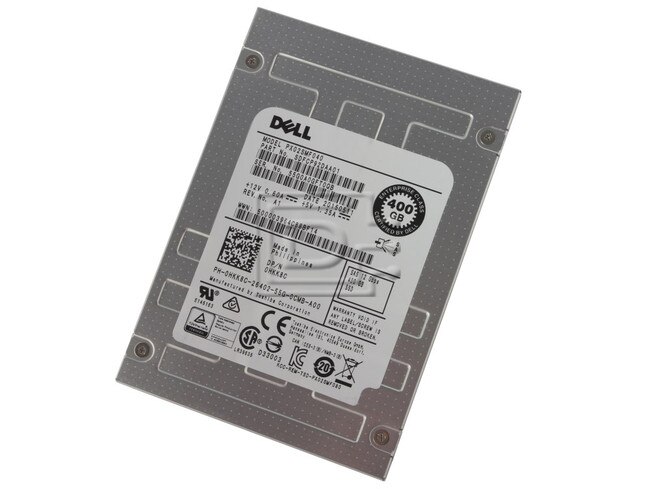

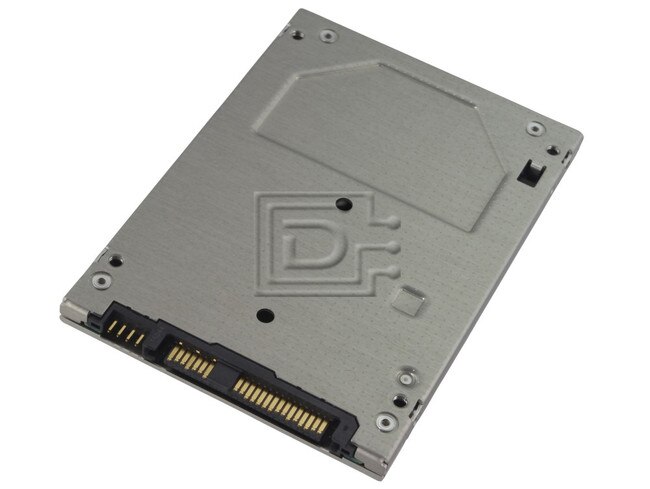

Dell Toshiba PX02SMF040 / HKK8C 400GB 2.5" Serial Attached SCSI 12Gbps Solid State Drive HKK8C
Product info
The PX02SMF series is Toshiba’s first eSSD to utilise cost-effective 24nm eMLC (enterprise multi-level cell) NAND technology, with capacities of 200/400/800GB and 1.6TB, and is also its first with a dual-port 12Gb/sec SAS interface. With a form-factor equivalent to industry-standard 2.5inch (6.4 cm) HDDs, the PX02SM series incorporates additional capabilities that enhance performance as well as reliability, including Toshiba’s proprietary Quadruple Swing-By Code (QSBC) for improved error correction.
Product Features
- Up to 1.6 TB
- 24 nm enterprise eMLC NAND Flash
- 12 Gb/s SAS Interface
- Quadruple Swing-By Code (QSBC) technology
DPN: HKK8C, 0HKK8C
MODEL | PX02SMF020 | PX02SMF040 | PX02SMF080 | PX02SMB160 |
---|---|---|---|---|
FUNCTIONAL SPECIFICATIONS | ||||
Formatted storage capacity | 200 GByte | 400 GByte | 800 GByte | 1600 GByte |
NAND | 24nm eMLC (64Gb/die) | |||
Interface | SAS 6.0/12.0 Gbps | |||
Performance: Random read (4KiB) |
| |||
Performance: Random write (4 KiB) |
| |||
Performance: Sequential read (64 KiB) |
| |||
Performance: Sequential write (64 KiB) | 400 MByte/s | |||
PHYSICAL SPECIFICATIONS | ||||
Form factor | 2.5 inch | |||
Height | 7 mm | 7 mm | 7 mm | 15 mm |
Width | 69.85 mm | |||
Depth | 100.45 mm | |||
Ambient temperature (operating) |
| |||
Case temperature (operating) |
| |||
Ambient temperature (non-operating) |
| |||
RELIABILITY | ||||
MTBF | 2,000,000 Hours |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0HKK8C HKK8C
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
