Toshiba Part #/MPN: PX02SMF080
DiscTech Item #: TOS-PX02SMF080-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 900
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

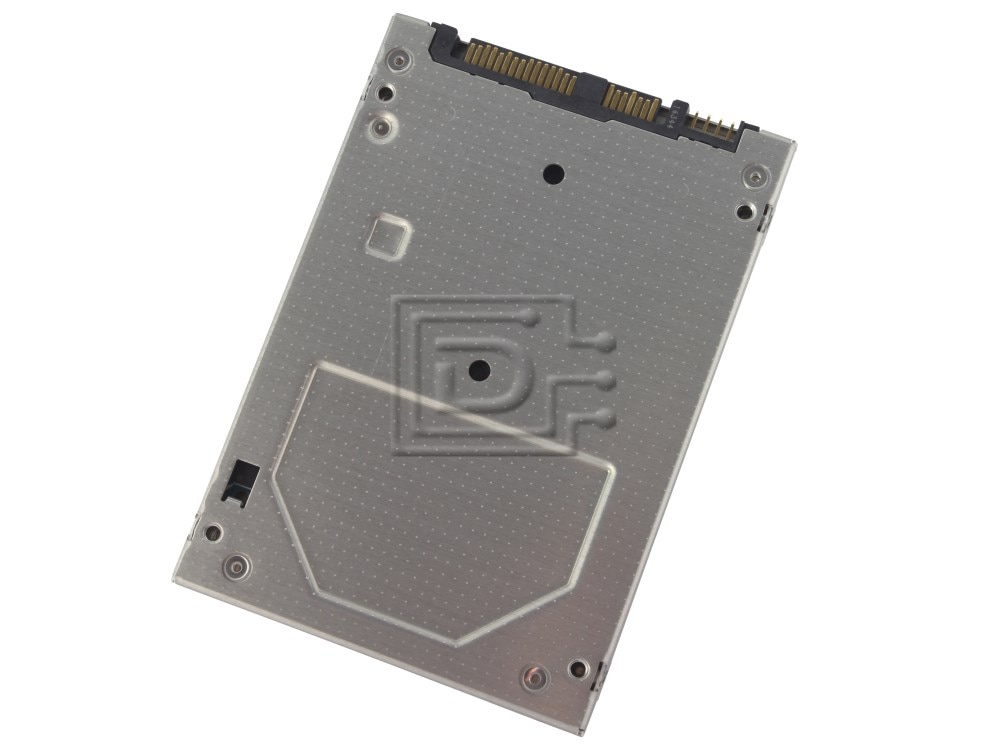

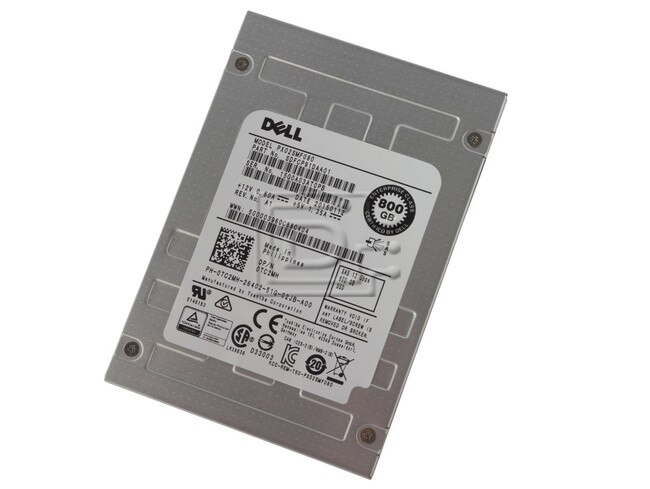

Toshiba PX02SMF080 800GB 12Gbps eMLC Enterprise Write Intensive 10-DWPD SAS Solid State Drive - New Pull OEM
Toshiba PX02SMF080 800GB 12.0Gbps eMLC SAS / Serial Attached SCSI Enterprise 10-DWPD Solid State Drive
DPN: 0TC2MH, TC2MH
eMLC NAND 2.5-Inch PX02SM Series Solid State Drive
Supports mission critical, enterprise application demand for performance, endurance, and power consumption.
At the forefront of leading-edge manufacturing technology, Toshiba offers enterprise-class solid state drives (SSDs) designed to support mission critical, enterprise application demand for performance, endurance, and power consumption.
The PX02SM Series enterprise-class SSD represents tier-0 of the storage architecture enabling organizations to effectively tune the performance, capacity, and reliability of their storage environments. The PX02SM Series is offered in capacities of 200GB, 400GB, 800GB, and 1600GB and is designed for compatibility and ease of integration into new or existing tier-0 enterprise storage systems, including servers, direct attached storage, and network-attached storage.
The new 2.5-inch small form factor drives utilize the latest 24 nanometer (nm) enterprise grade multi-level cell (eMLC) NAND flash memory and 12Gb/s Serial Attached SCSI (SAS) interface. The Toshiba PX02SM Series SSD delivers high levels of performance, which outpaces many competing enterprise-class SSDs by achieving random sustained 120K read and 25K write IOPS and sequential sustained 900MB/s read and 400MB/s write throughput. New features found in Toshiba’s 2nd generation PX02SM eSSD family are 12G SAS, a thinner 7mm z-height form factor and Toshiba’s Quadruple Swing by Code, layered ECC approach for improved error correction capabilities.
Features
- 24nm eMLC NAND process
- 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
- Capacities up to 1.6TB
- Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
- Power Loss Protection
- Security Models Available
Compatibility:
Compatible with any server that accepts 2.5"x7mm SAS drives.
eMLC NAND PX02SM Series Solid State Drive | |
---|---|
Standard Model Number | PX02SMF080 |
Series Overview | |
Drive Capacity | 800GB |
Physical Capacity | 1,024GB |
NAND Technology | 24nm eMLC |
Drive Interface | SAS 12Gbps |
Performance | |
DWPD (Drive Writes Per Day) | 10 |
Sequential Read (Sustained) | 900 MB/s |
Sequential Write (Sustained) | 400 MB/s |
4KB Random Read (Sustained) | 120,000 IOPS |
4KB Random Write (Sustained) | 30,000 IOPS |
Product Life | 5 years |
Reliability | |
Endurance – Total Bytes Written | 14.6PB |
Mean Time to Failure (MTTF) | 2,000,000 hours |
Availability (hrs/day x days/wk) | 24 x 7 |
Power Requirements | |
Voltage | 5V (+/- 5%), 12V (+/- 5%) |
Power Consumption Efficiency | 13.4 kIOPS/W |
Power Consumption | < 9.0 watts, 12V (+/- 5V) |
Physical Size | |
Dimensions (W) x (D) x (H) | 69.85 mm x 100 mm x 7 mm |
Weight | 70 g (2.47 oz) |
Environmental | |
Temperature Operating Non-operating | 0° to 55°C -40° to 70°C |
Vibration Operating Non-operating | 9.8 m/s2 (1G) 49 m/s2 (5G) |
Shock Operating Non-operating | 9,800 m/s2 1,000G (0.5ms, ½ sine) 9,800 m/s2 1,000G (0.5ms, ½ sine) |
Power Loss Protection | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0TC2MH TC2MH
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
