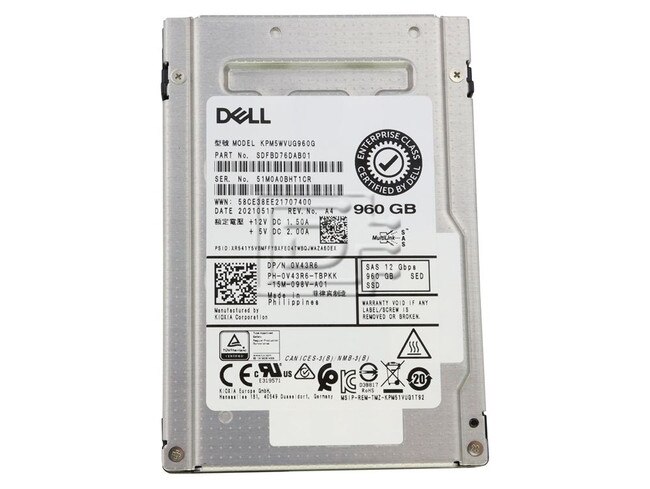

Dell V43R6 / KIOXIA Toshiba KPM5WVUG960G 960GB 2.5inch 12Gbps Mixed Use 3-DWPD SED FIPS 140-2 SAS SSD
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 960GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell V43R6 / KIOXIA Toshiba KPM5WVUG960G 960GB 2.5inch 12Gbps Mixed Use 3-DWPD SED FIPS 140-2 SAS SSD - Refurbished
Dell V43R6 / KIOXIA Toshiba KPM5WVUG960G 960GB 2.5inch 12Gbps Mixed Use 3-DWPD SED FIPS 140-2 SAS SSD - Refurbished
DP/N V43R6 0V43R6 KPM5WVUG960G
PM5-R Series - Enterprise Read Intensive SSD
PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 15.36 TB.
Key Features
- 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
- Capacities from 480 GB to 15.36 TB
- T10 Multi-Stream Write support
- Up to 385 K random read IOPS (4 KiB) in dual port mode
- 2.5 inch form factor, 15 mm Z-height
- 3 DWPD with 100 % Random Write Workload
- Power loss protection and end-to-end data protection, including T10 DIF
- Pin-3 power disable support
- Sanitize Instant Erase (SIE) option
- Self-Encrypting (SED) option
- Self-Encrypting (SED), FIPS 140-2 validated option
- 5-year limited warranty
Key Applications
- Media streaming
- Data warehousing
- Web servers
- Video on demand (VOD)
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Basic Specifications | |
| Reliability | |
| Power Requirements | |
| Dimensions | |
| Enviromental | |
| Model Number | KPM5WVUG960G |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 1.92TB |
| Sustained 64KiB Sequential Read | 2,100 MiB/s |
| Sustained 64KiB Sequential Write | 2,100 MiB/s |
| Sustained 4KiB Random Read | 370,000 IOPS |
| Sustained 4KiB Random Write | 55,000 IOPS |
| MTTF | 2,500,000 hours |
| DWPD | 3 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 3.2W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: V43R6 0V43R6
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
