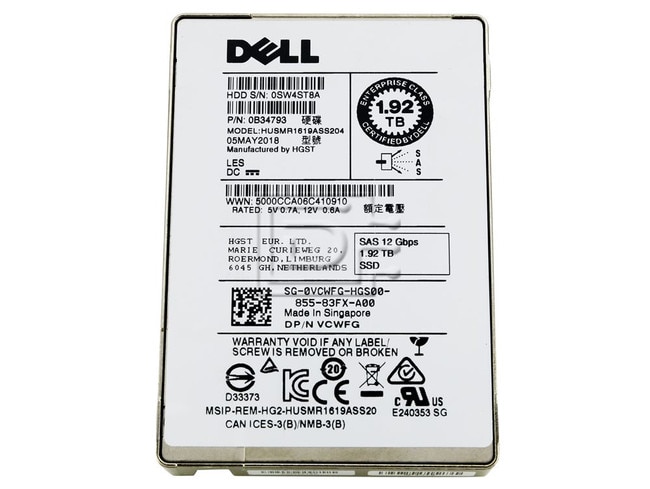

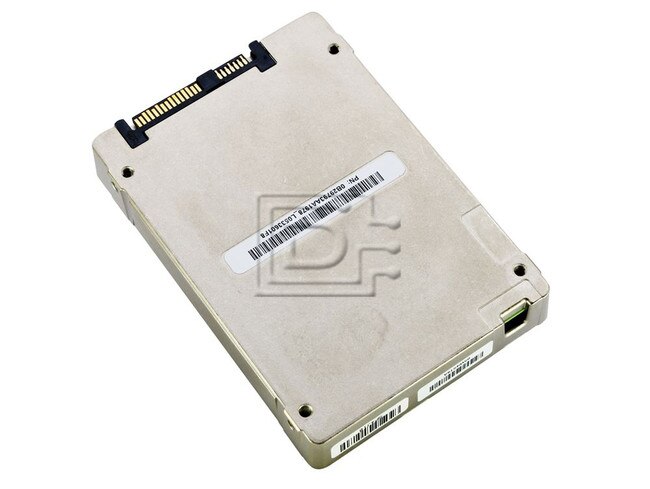

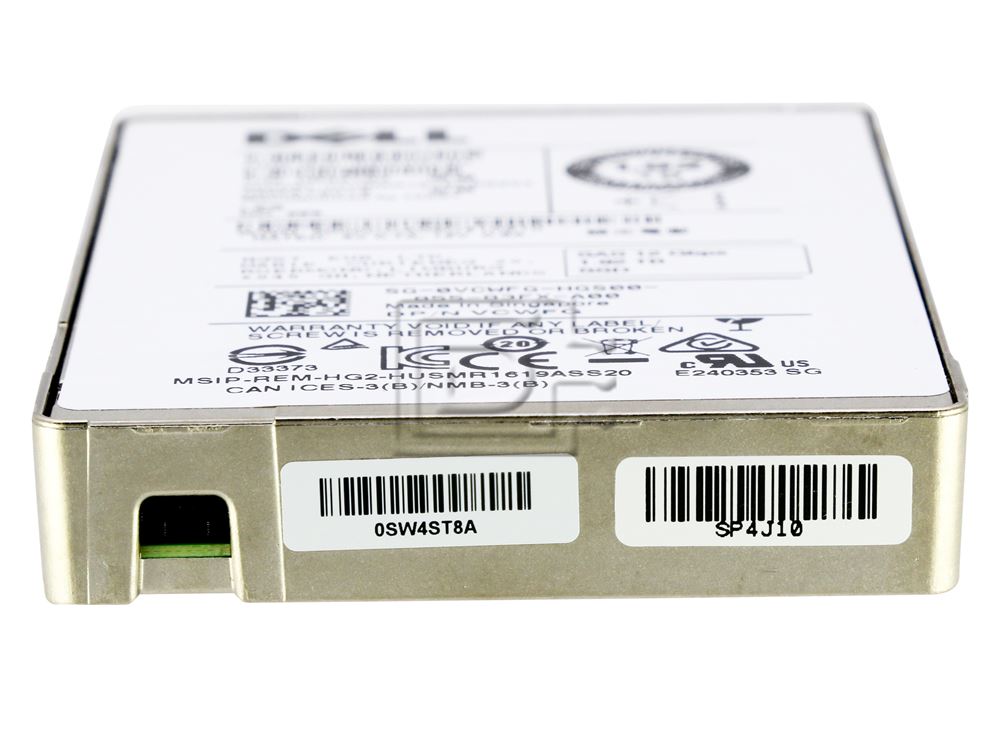

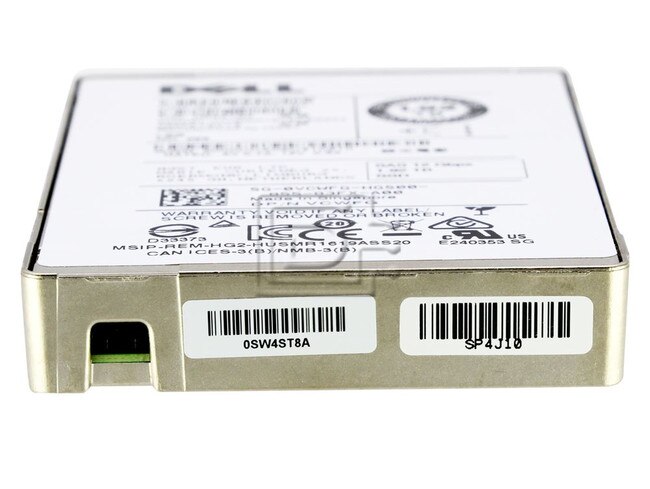

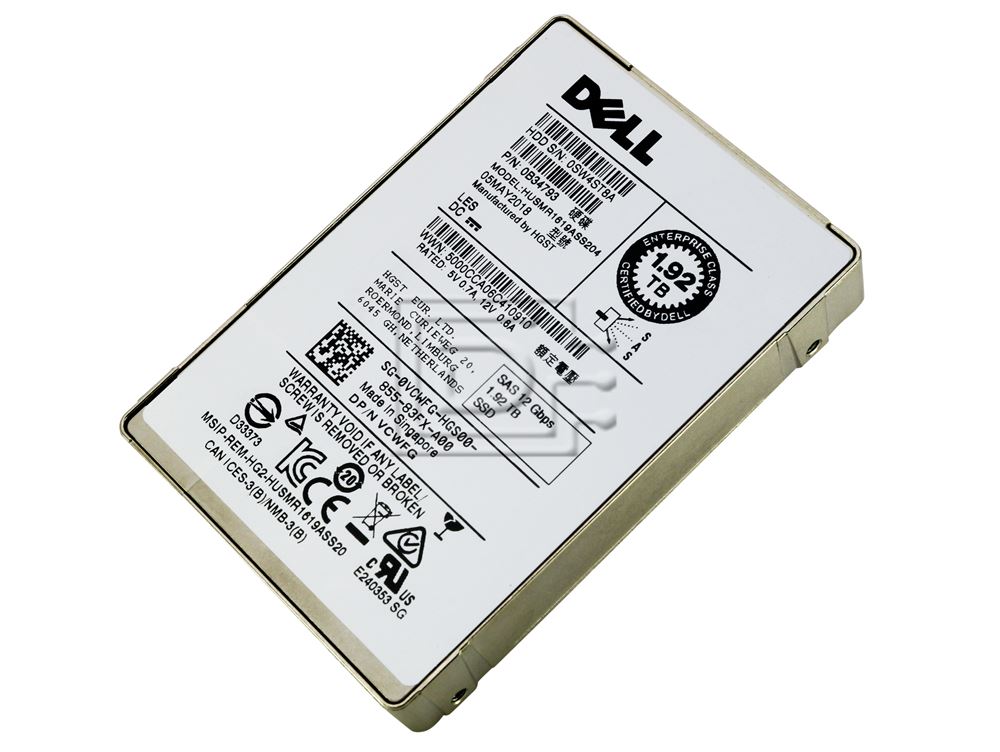

Dell VCWFG / HGST Ultrastar SSD1600MR 0B34793 / HUSMR1619ASS204 1.92TB SFF 12Gbps MLC RI SAS SSD

Hitachi Part #/MPN: HUSMR1619ASS204

DiscTech Item #: HIT-HUSMR1619ASS204-BN-OE-DEL


$800.00
$800.00

Enterprise Grade

Capacity: 1.92TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 1100/700

Average Seek Time: 130K/30K

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Dell VCWFG / HGST Ultrastar SSD1600MR 0B34793 / HUSMR1619ASS204 1.92TB SFF 12Gbps MLC RI SAS SSD - Brand New

Dell VCWFG / HGST Hitachi Ultrastar SSD1600MR 0B34793 / HUSMR1619ASS204 1.92TB 2.5" SFF 12Gb/s 512 bytes MLC / Multi Level Cell RI / Read Intensive 1-DWPD SAS / Serial Attached SCSI SSD / Solid State Drive - Brand New

HGST Ultrastar SSD1600MR

Maximum Performance, Reliability and Endurance
The Ultrastar SSD1600MR delivers high sequential throughput, up to 1100MB/s read and 700MB/s write (12Gb/s SAS). It also delivers up to 130,000 read and 30,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD1600MR family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements. The Ultrastar SSD1600MR family combines enterprise grade MLC NAND Flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance and sustained performance over the life of the SSD. The Ultrastar SSD1600MR family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hour meantime-between-failure (MTBF). The 1920GB capacity model endures up to 10.5 Petabytes (PB) of random writes over the life of the drive—the equivalent of writing 5.8 Terabytes (TB) per day for five years. For complete end-to-end data protection and reliability, the Ultrastar SSD1600MR family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), Exclusive-OR (XOR) parity to protect against Flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SSD1600MR family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity).

HGST Enterprise Storage Experience
HGST leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar® SSD1600MR solid-state drive (SSD) family. The synergistic relationship between HGST’s throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.

HGST Quality and Service
HGST’s Ultrastar SSD1600MR family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs.

Features & Benefits
Performance

  • Feature / Function
    • SAS 12Gb/s interface
    • MLC NAND flash memory
    • 1100 / 700 MB/s sequential R/W
    • 130K / 30K IOPS random R/W
    • 50K IOPS on 70/30 mixed R/W
  • Benefits
    • 12Gb/s / 6Gb/s Active-Active Dual Port
    • Highest write performance  with cost improved NAND for high endurance
    • Maximum throughput and IOPs for ultra-fast access to data; >100x faster than typical HDD

Power

  • Feature / Function
    • 9.0 and 11.0 Watt options
  • Benefits
    • Improved performance with higher power option

Capacity

  • Feature / Function
    • 1.92TB to 250GB
  • Benefits
    • More capacity for less space and power

Reliability

  • Feature / Function
    • 0.35% AFR (2.5M hours MTBF)
    • 1E-17 bit error rate
    • T10 end-to-end data protection
    • Exclusive-OR (XOR) NAND
    • Power loss data management
    • Unlimited reads, up to 10.5PB random writes (1920GB)
  • Benefits
    • Reduced field replacement effort
    • Enhanced error detection and correction for optimal data integrity
    • Protection against Flash die failure
    • Assures data integrity during power failure
    • Maximum endurance over the life of SSD

Integration

  • Feature / Function
    • HDD architecture commonality
    • Systems integration and test lab
  • Benefits
    • Compatibility with Ultrastar SAS HDDs
    • Extensive interoperability and compliance testing


    Highlights

    • MLC NAND Flash for ultra-high performance and endurance
    • Read-intensive <3DW/D for 5 years
    • Best IOPs/Watt for reduced TCO
    • 12Gb/s SAS interface for maximum throughput
    • Advanced power loss data management technology
    • Self-encrypting models conform to TCG’s Enterprise specification

    Applications/Environments

    • Ultra-high performance tier-0 read endurance enterprise storage
    • Enterprise-class servers and high performance computing
    • Space and/or power constrained environments
    • Online Transaction Processing (OLTP)
    • Video pre/post-production
    • Cloud computing

Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS Solid State Drive

HGST Ultrastar SSD1600MR
Part Number0B34793
Model NumberHUSMR1619ASS204
Configuration
InterfaceSAS 6/12Gb/s supports Wide port @ 12Gb/s
Capacity1.92 / 1920GB
Endurance (Drive Writes per Day - DW/D)-1
Endurance (max TBW, Rnd write)10,500
Form Factor2.5-inch SFF
Flash Memory Technology3D Multi-Level Cell (MLC) NAND
Performance
Read Throughput (max MB/s, Seq. 128KiB)1100
Write Throughput (max MB/s, Seq. 128KiB)700
Read IOPS (max, Rnd 4KiB)130K
Write IOPS (max, Rnd 4KiB)30K
Mixed IOPS (70/30 R/W, max R/W, 4KiB)50K
Reliability
Error Rate (non-recoverable, bits read)1 in 10e17
MTBF (M hours)2.5
Annualized Failure Rate (AFR)0.35%
Availability (hrs/day x days/week)24x7
Power
Requirement (+/- 5%)+5 VDC, +12VDC
Operating Modes (W, typical)
  • 9
  • 11
Idle (W, max)2.2
Physical Size
z-height (mm)15
Dimensions (width x depth, mm)70.1 x 100.6
Weight (max, g)18
Environmental
Operating Temperature0º to 70º C
Shock (half-sine wave, G)1000G (0.5ms), 500G (2ms)
Vibration, random (G RMS, 5 to 700Hz)2.16 (XYZ)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: VCWFG 0VCWFG 0B34793

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
