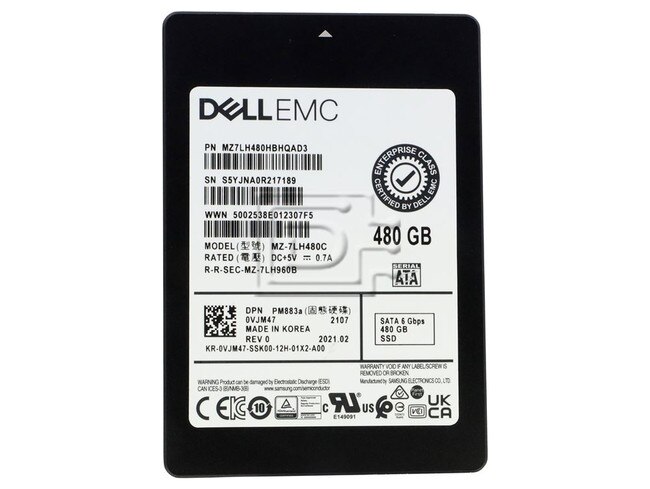

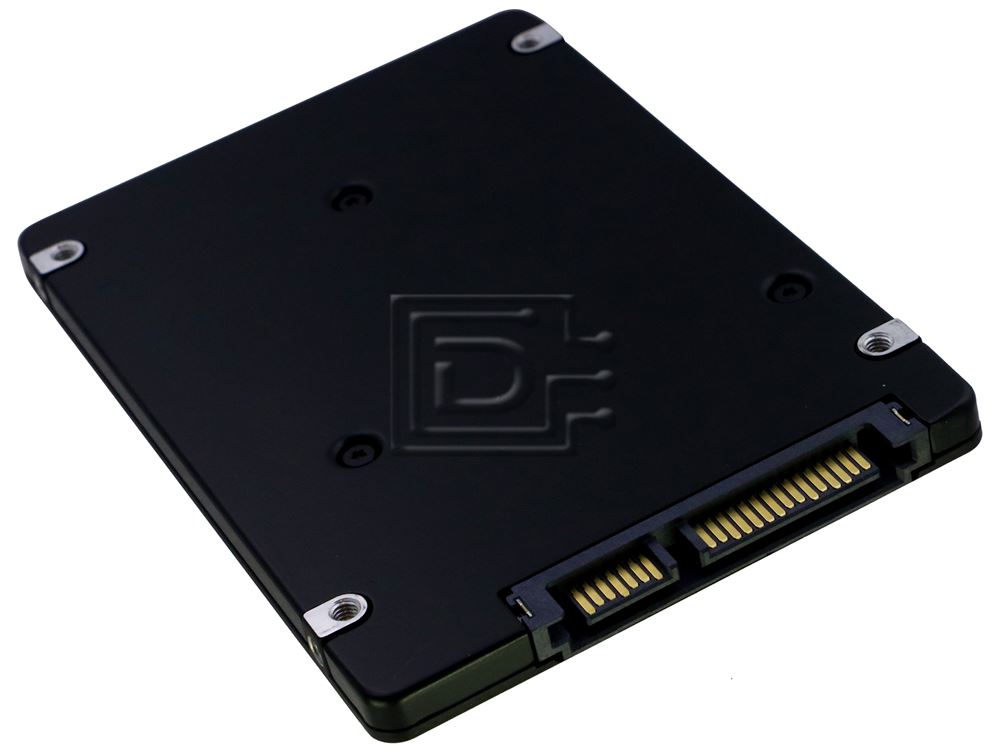

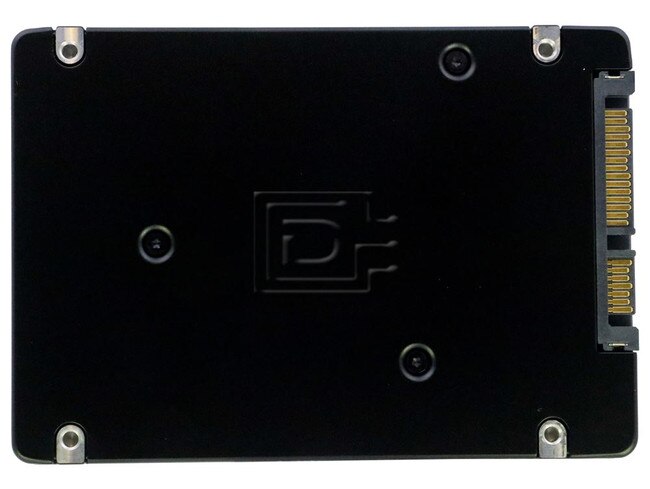

Dell Enterprise VJM47 / Samsung PM883a MZ7LH480HBHQAD3 / MZ-7LH480C 2.5in 480GB 6Gb/s Read Intensive SATA SSD

SAMSUNG Part #/MPN: MZ7LH480HBHQAD3

DiscTech Item #: SAM-MZ7LH480HBHQAD3-C9-OE-DEL


$149.99
$149.99

Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 550MB/s Read and 520MB/s Write

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: Dell 16th Gen. R660 / R760, Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 13th Gen. FD332, Dell 12th Gen. M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell Enterprise VJM47 / Samsung PM883a MZ7LH480HBHQAD3 / MZ-7LH480C 2.5in SFF 480GB SSD 6Gb/s SATA Solid State Drive Read Intensive - Certified 95

Dell Enterprise VJM47 / Samsung PM883a MZ7LH480HBHQAD3 / MZ-7LH480C 2.5in SFF 480GB SSD 6Gb/s SATA Solid State Drive Read Intensive - Certified 95

Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers

The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.

In addition, the PM883 provides the following same powerful functions as the previous generation PM853T

Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the PM863 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory

  • End-to-end Protection. Safeguards user data in the PM863 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
  • Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.

Dell PN: VJM47 , 0VJM47

Alt MP/N: MZ7LH480HBHQAD3 / MZ-7LH480C


Compatibility:

This Dell / Samsung Enterprise SSD will work in any system that supports 2.5" SATA SSDs

ENTERPRISE SSD
Model Number MZ7LH480HBHQAD3
DPN VJM47, 0VJM47
Model PM883a
Form Factor 2.5 inch
Interface Serial ATA 6.0 Gbps
Density 480GB
Voltage +5V ± 5%
Sequntial Read (128KB) 550 MB/s
Sequential Write (128KB) 520 MB/s
DWPD 1 DWPD

ROHS Compliant

Alternate MPNs: VJM47 0VJM47 MZ-7LH480C

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
