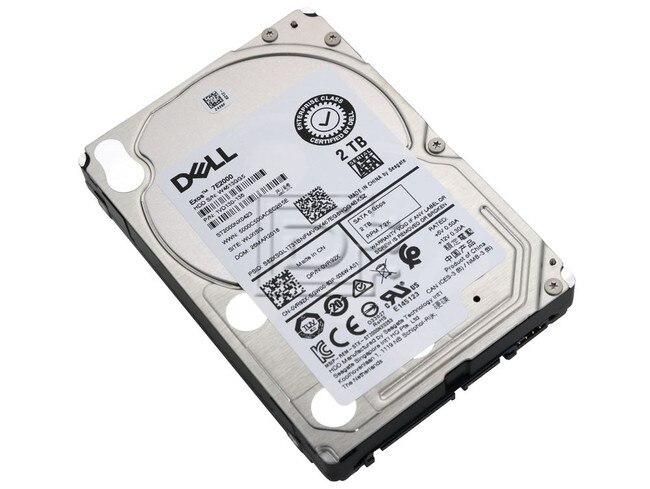

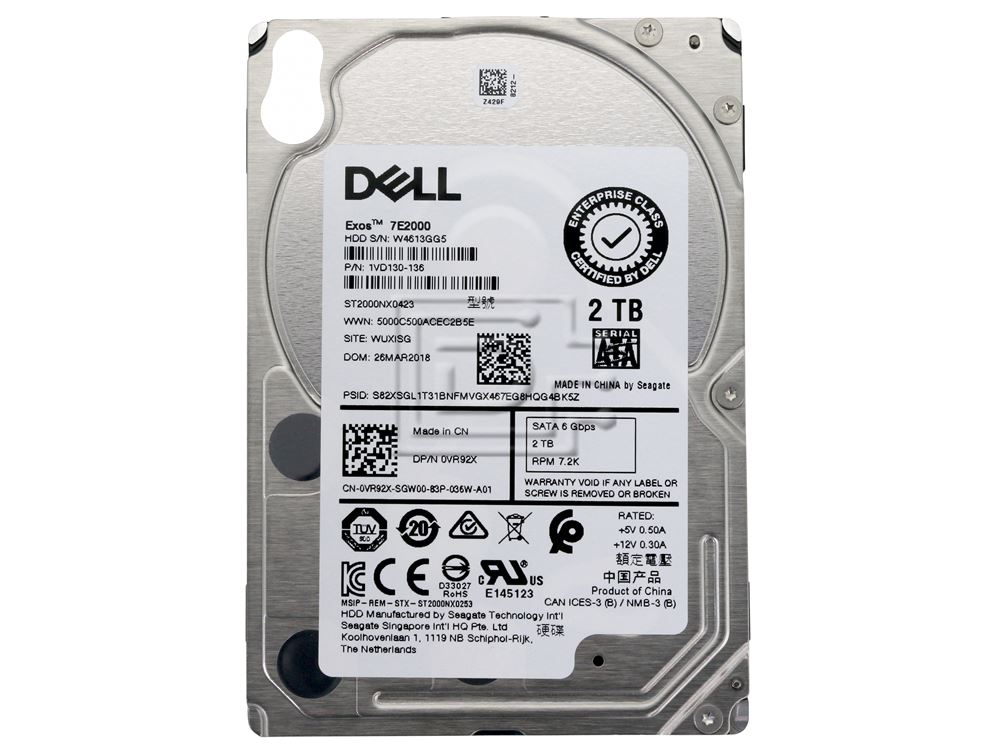

Dell VR92X / Seagate ST2000NX0423 2TB 2.5" Enterprise SATA Hard Drive

Seagate ST2000NX0423 VR91X 0VR92X 1VD130-136 SATA Hard Drive Image 1 imageSeagate ST2000NX0423 VR91X 0VR92X 1VD130-136 SATA Hard Drive Image 2 imageSeagate ST2000NX0423 VR91X 0VR92X 1VD130-136 SATA Hard Drive Image 3 imageSeagate ST2000NX0423 VR91X 0VR92X 1VD130-136 SATA Hard Drive Image 4 image
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • In Stock:11
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$259.00

Capacity:2TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:2.5" SFF Server Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:128MB
Click to see more 2TB SATA 7.2K RPM Drives

Description

Dell VR92X / Seagate ST2000NX0423 2TB 2.5" 6Gbps 7200RPM Enterprise Capacity SATA Hard Drive - New Pull

Dell VR92X / Seagate ST2000NX0423 2TB 2.5" 6Gbps 7200RPM Enterprise Capacity SATA Hard Drive - New Pull

Design Small and Deliver BIG—2.5-Inch Nearline Drive

  • Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
  • Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
  • Third-generation, enterprise-class reliability for 24x7 environmental robustness.
  • Highest efficiency for over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
  • Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
  • Lowest enterprise operation power and enhanced PowerChoice™ options for additional power savings during idle periods.

Best-Fit Applications

  • Storage-hungry business applications.
  • Storage area networks (SAN) and network attached storage (NAS)
  • Maximum-capacity entry-level servers and blade servers
  • Rich media content storage
  • Enterprise backup and restore—D2D, virtual tape
  • Cloud computing

DPN: VR92X / 0VR92X

Alt Pt# 1VD130-136

Compatibility

This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard Drive) SATA drive.

Specifications

Drive ModelST2000NX0423
Capacity2TB/2000GB
InterfaceSATA 6Gbps
Self-Encrypted DriveNo
Features
PowerChoice™ on-demand power optionYes
Low HalogenYes
RAID Rebuild™Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)1.4 million
Reliability Rating @ Full 24x7 operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760
Bytes per Sector512
Performance
Spindle Speed (RPM)7200
Cache Buffer, Multisegmented (MB)128
Interface Acces Speed (Gb/s)6.0
Max. Sustained Transfer Rate (MB/s)136
Average Latency (ms)4.16
Interface PortsSingle
RV Tolerance(rad/s to 1800Hz)16
Power Management
Idle Power (W)3.87
Typical Operating, Random Read (W)5.22
PowerChoice™ Technology (Standby) (W)1.14
Power Supply Requirements+12V and +5V
Enviromental
Temperature, Operating (˚C)5 to 55
Vibration, Operating, 5Hz to 500Hz (Gs)0.5
Vibration, NonOperation, 5Hz to 500Hz (Gs)3.0
Shock, Operating, 2ms (Gs)25
Shock, Nonoperating, 2ms (Gs)400
Acoustics, Typical Idle (bels)2.8
Acoustics, Typical Seek (bels)3.2
Physical
Height (in/mm)0.591/15.00
Width (in/mm)2.760/70.10
Depth (in/mm)3.955/100.45
Weight (lb/g)0.437/198
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: VR91X 0VR92X 1VD130-136

Weight: 1.5 lb

Warranty: 1 Year DiscTech
