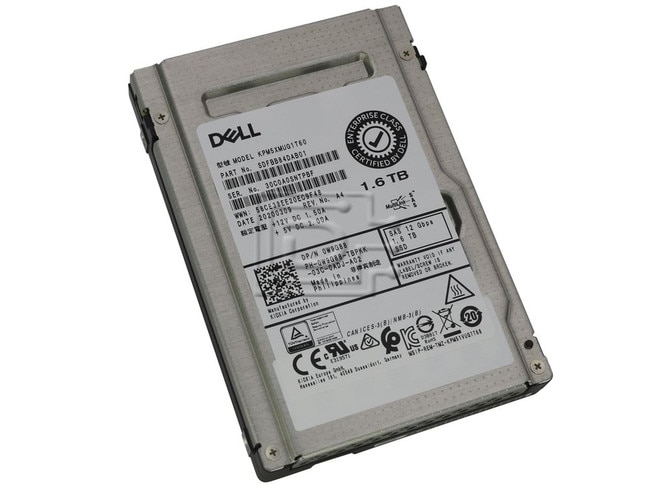

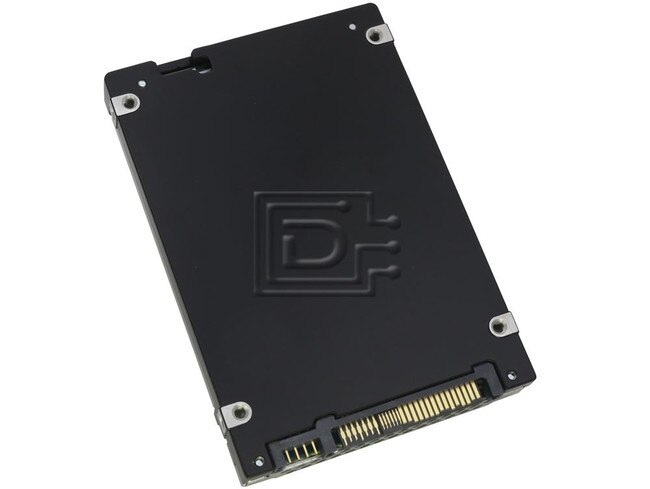

Dell W9G88 / KIOXIA Toshiba KPM5XMUG1T60 1.6TB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD

Toshiba Part #/MPN: KPM5XMUG1T60

DiscTech Item #: KIO-KPM5XMUG1T60-BN-OE-DEL

$1,289.99

Brand New
Condition Levels Explained
The product is brand new.
Warranty:1 Year DiscTech
Product Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back

$1,289.99

Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2100/2100

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

Dell W9G88 / KIOXIA Toshiba KPM5XMUG1T60 1.6TB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD - Brand New

PM5-M Series - Enterprise Write Intensive SSD

PM5-M 12.0 Gbit/s SAS SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The Series is designed to deliver high levels of performance, quality and reliability for mission-critical, hyperscale and virtualized environments. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 10 DWPD (Drive Write Per Day) with capacities up to 3.2 TB.

Key Features:

12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
Capacities from 400GB to 3.2TB
T10 Multi-Stream Write support
Up to 385 K random read IOPS (4 KiB) in dual port mode
2.5 inch form factor, 15 mm Z-height
10 DWPD with 100 % Random Write Workload
Power loss protection and end-to-end data protection, including T10 DIF Pin-3 power disable support
Sanitize Instant Erase (SIE) option

Key Applications

Mission critical enterprise workloads Hyperscale and virtualized environments
Online transaction processing (OLTP)
E-commerce

DPN: W9G88, 0W9G88

Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Read Intensive SSD
Model Number	KPM5XMUG1T60
Basic Specifications
Interface	SAS-3.0
Interface Speed	12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory Type	BiCS FLASH TLC
Formatted Capacity	1.6TB
Sustained 64KiB Sequential Read	2,100 MiB/s
Sustained 64KiB Sequential Write	2,100 MiB/s
Sustained 4KiB Random Read	370,000 IOPS
Sustained 4KiB Random Write (in dual port mode)	230,000 IOPS
Reliability
MTTF	2,500,000 hours
DWPD	10
Power Requirements
Supply Voltage	5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)	5.0W Typ.
Dimensions
Height	15.0 mm +0 , -0.5 mm
Width	69.85 ±0.25 mm
Length	100.45 mm Max.
Weight	130 g Max.
Enviromental
Temperature (Operating)	0 to 60 °C
Relative Humidity ( Operating )	5 to 95 % R.H.
Vibration (Operating)	21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)	9.8 km/s {1,000 G} (0.5 msec)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: W9G88 0W9G88

Weight: 0.7 lb
