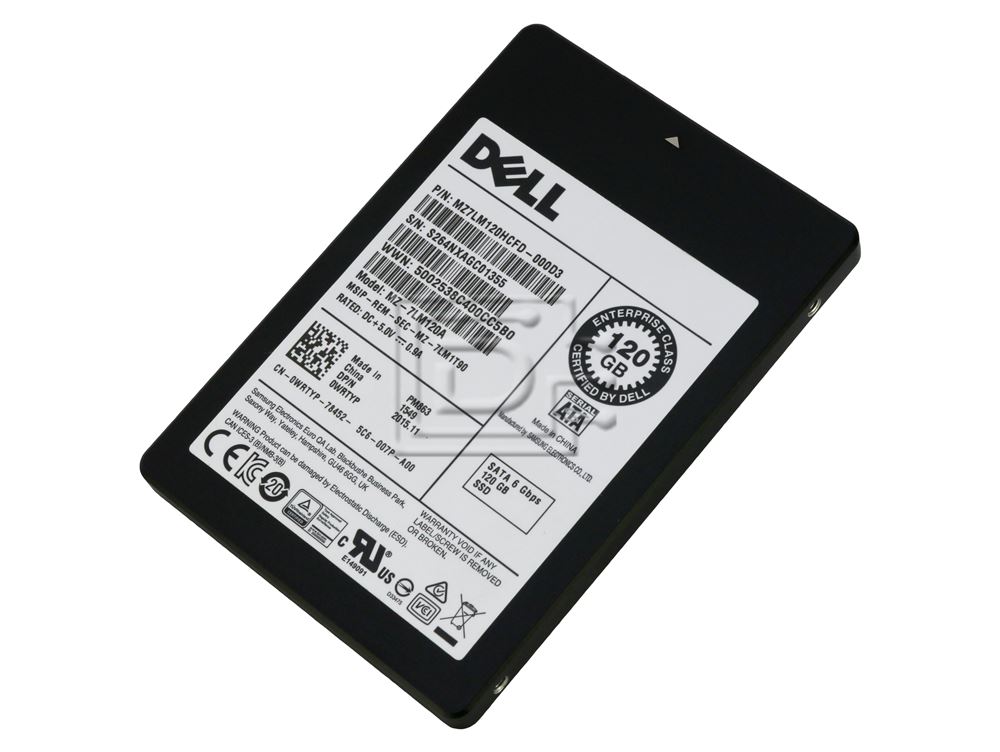

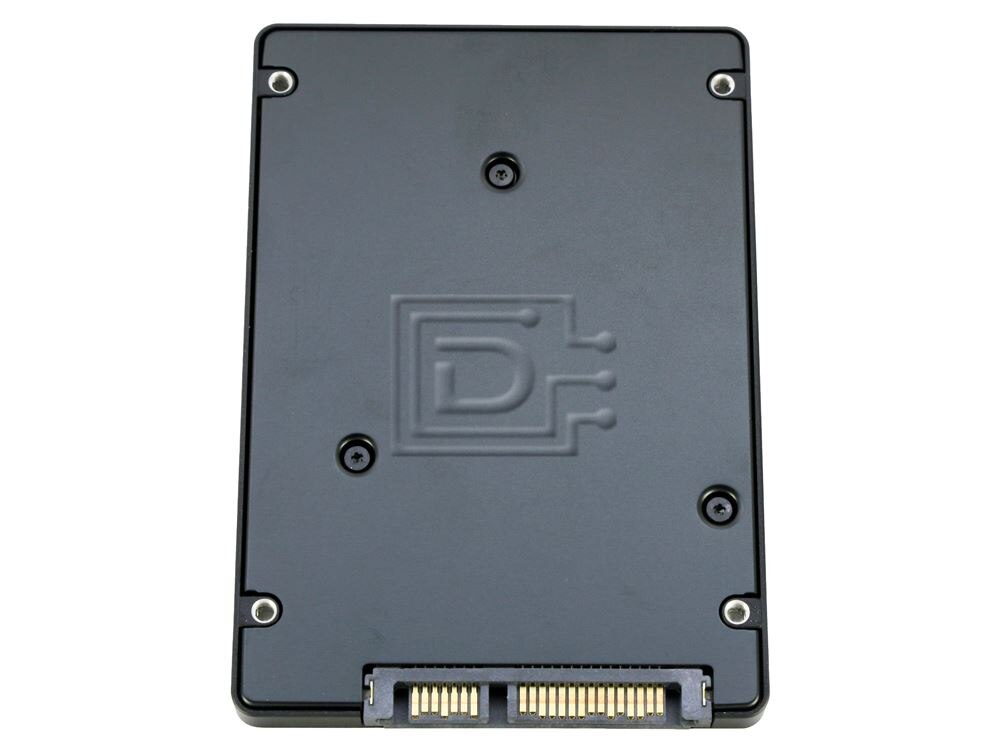

Dell WRTYP / Samsung PM863 MZ-7LM120A 2.5in 120GB 6Gb/s SATA SSD


DiscTech Item #: SAM-MZ-7LM120A-RF-OE-DEL


Enterprise Grade

Capacity: 120GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Sustained Throughput: 540MB/s Read and 480MB/s Write

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Dell WRTYP / Samsung PM863 MZ-7LM120A 2.5"in 6Gbps 120GB SATA SSD - Refurbished

Dell WRTYP / Samsung PM863 MZ-7LM120A 2.5in 6Gb/s 120GB SATA SSD / Solid State Drive - Refurbished

Alt PN/s: MZ-7LM120 / MZ7LM120HCFD / MZ7LM120HCFD-000D3 / 0WRTYP

Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers

The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.

The maximum capacity of the PM863 has improved over four times that of the previous generation PM853T to almost 3,840 GB compared to 960 GB. Random read/write performance has also greatly improved. The 4 KB random read/write performance was 90 K IOPS/14 K IOPS maximum to the PM863 reaching up to 99 K IOPS/18 K IOPS.

In addition, the PM863 provides the following same powerful functions as the previous generation PM853T

  •  Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the PM863 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory
  • End-to-end Protection. Safeguards user data in the PM863 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
  • Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.
Model NumberMZ-7LM120A
Form Factor2.5" inch
InterfaceSATA / Serial ATA 6.0 Gbps
Density 120GB
Voltage+5V ± 5%
Sequntial Read (128KB)540 MB/s
Sequential Write (128KB)480 MB/s
Random Read IOPS (4KB)99 KIOPS
Random Write IOPS (4KB)18 KIOPS

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: MZ-7LM120 MZ7LM120HCFD MZ7LM120HCFD-000D3 WRTYP 0WRTYP

Weight: 0.5 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
