Toshiba Part #/MPN: PX05SRB384Y
DiscTech Item #: TOS-PX05SRB384Y-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 3.84TB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
Compatible Systems: Dell Compellent SCv2080 SC280 SC180

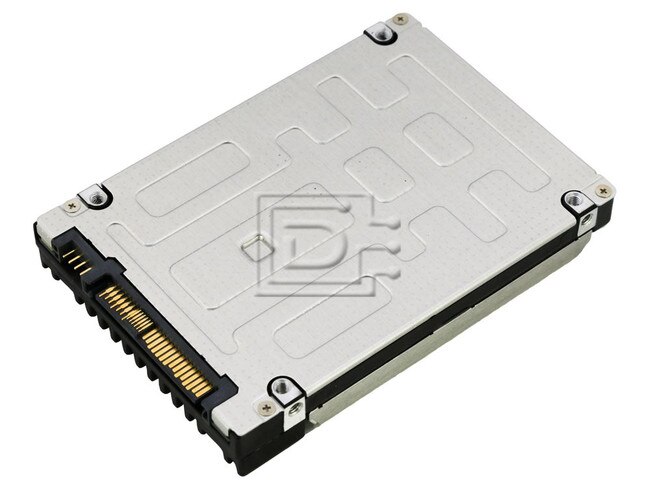

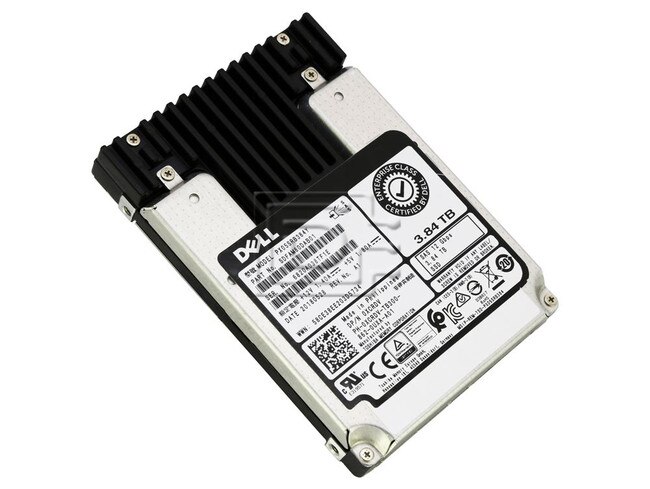

Dell XCRDV / Toshiba PX05SRB384Y 3.84TB 2.5" SFF 12Gbps MLC Read Intensive SAS Solid State Drive - Refurbished 95 OEM
Dell XCRDV / Toshiba PX05SRB384Y 3.84TB 2.5" SFF 12Gbps MLC Read Intensive SAS Solid State Drive - Refurbished 95 OEM
Enterprise Read Intensive SSD
The PX05S Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. The PX05SR Series is designed for read-intensive application workloads including web servers, data warehousing, media streaming and VOD and offers large capacities up to 3.84TB with 12.0 Gbit/s SAS interface.
The series’ 270K IOPS sustained random read performance and 1,400 - 1,800 MB/s sequential read performance helps read-intensive application workloads to realize superior results and assists organizations in minimizing total cost of ownership while maintaining high performance, reliability and endurance for maximum scalability.
Optimized for applications demanding 1 Drive Writes Per Day (DWPD), the family is equipped with unique customer-tunable feature allowing optimization for maximum performance or power efficiency. Additional features include power-loss protection and full data path protection. Each model supports pin-3 power disable for improved enclosure services control over storage media. Self-encrypting drive options with instant secure erase are also available.
KEY FEATURES
- 270K IOPS random read (4K) performance
- 1 DWOD wutg 100% Random Write Workload
- Pin-3 Disable Support
- Power-Loss_Protection and End-to-end data protection including T10 DIF
- Sanitize Instant Erase (SIE) option
- Self-encrypting drive (SED)
- Self-encrypting drive (SED), FIPS Certified
APPLICATIONS
- Data Warehousing
- Web Servers
- Video on Demand
- Streaming media
Manufacturer Part# : PX05SRB384Y
Dell Part# : XCRDV 0XCRDV
Enterprise Read Intensive SSD | |
---|---|
Model Number | PX05SRB384Y |
Basic Specifications | |
Interface | SAS-3.0 |
Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Memory Type | MLC |
Formatted Capacity | 3.84TB / 3,840GB |
Sustained 64KiB Sequential Read | 1,400 MiB/s |
Sustained 64KiB Sequential Write | 750 MiB/s |
Sustained 4KiB Random Read | 270,000 IOPS |
Sustained 4KiB Random Write | 25,000 IOPS |
Reliability | |
MTTF | 2,000,000 hours |
DWPD | 1 |
Power Requirements | |
Supply Voltage | 5 V ±7 % , 12 V ±7 % |
Power Consumption (Operating) | 3.2W Typ. |
Dimensions | |
Height | 15.0 mm +0 , -0.5 mm |
Width | 69.85 ±0.25 mm |
Length | 100.45 mm Max. |
Weight | 150 g Max. |
Enviromental | |
Temperature (Operating) | 0 to 55 °C |
Relative Humidity ( Operating ) | 5 to 95 % R.H. |
Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: XCRDV 0XCRDV
