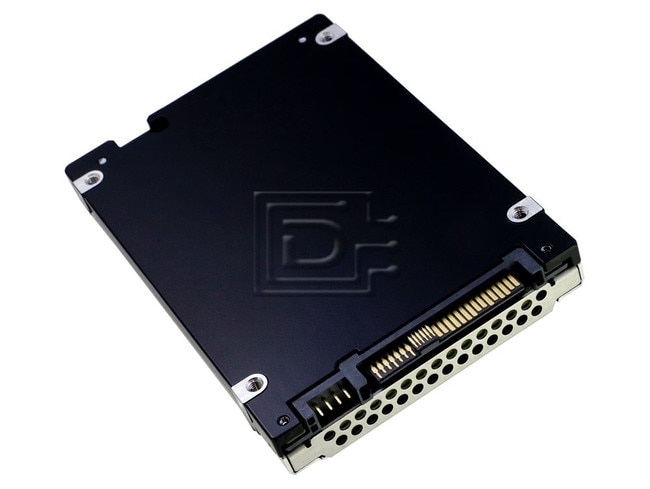

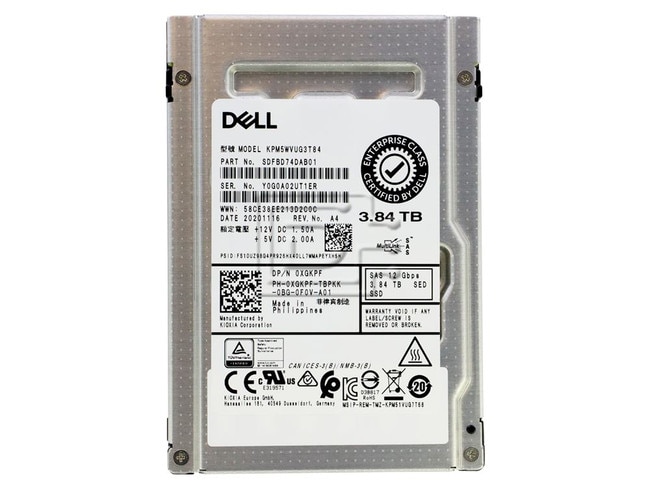

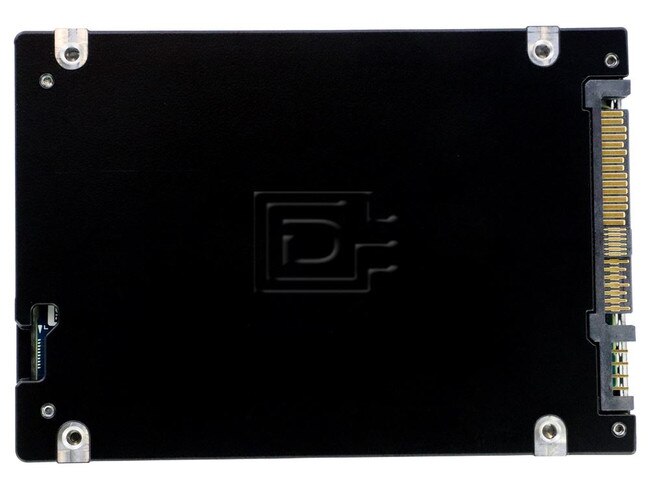

Dell XGKPF / KIOXIA Toshiba KPM5WVUG3T84 3.84TB 2.5 12Gbps Mixed Use SED SAS SSD

Toshiba Part #/MPN: KPM5WVUG3T84

DiscTech Item #: KIO-KPM5WVUG3T84-BN-OE-DEL


$2,399.00
$2,399.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 2100/2100

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Mixed Use

Compatible Systems: Dell 16th Gen. R660 / R760, Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

Dell XGKPF / KIOXIA Toshiba KPM5WVUG3T84 3.84TB 2.5 12Gbps Mixed Use 3-DWPD SED / Self Encrypting SAS SSD - Brand New OEM

Dell XGKPF / KIOXIA Toshiba KPM5WVUG3T84 3.84TB 2.5 12Gbps Mixed Use 3-DWPD SED / Self Encrypting SAS SSD - Brand New OEM


Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Mixed Use SSD
Basic Specifications
Reliability
Power Requirements
Dimensions
Enviromental
Model NumberKPM5XVUG3T84 / XGKPF
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeBiCS FLASH TLC
Formatted Capacity3.84TB
Sustained 64KiB Sequential Read2,100 MiB/s
Sustained 64KiB Sequential Write2,100 MiB/s
Sustained 4KiB Random Read370,000 IOPS
Sustained 4KiB Random Write55,000 IOPS
SED / Self EncryptionYes
DWPD3
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)3.2W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Temperature (Operating)0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: XGKPF

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
