Dell XX2X2 / 0XX2X2 LSI SAS 2008 6Gb/s Mezzanine Controller Card

Dell Part #/MPN: XX2X2

DiscTech Item #: DEL-XX2X2-RF-OE


$99.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$99.00

Interface Types: SAS Serial Attached SCSI, SFF-8087

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 3

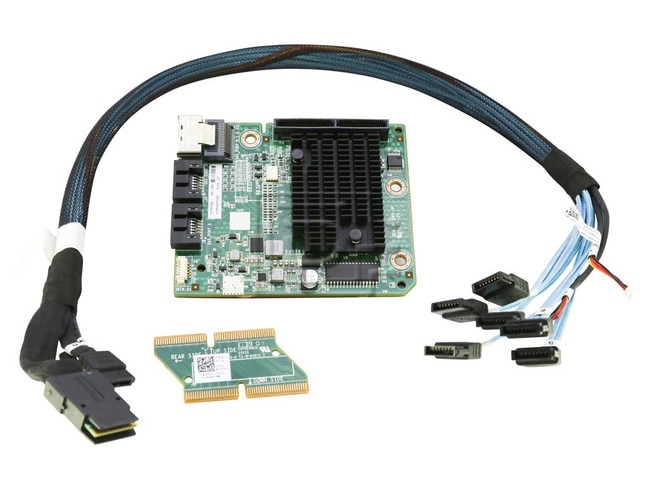

Dell XX2X2 / JKM5M LSI SAS 2008 6Gb/s Mezzanine Controller with Riser Card and Cabling - Refurbished

Dell XX2X2 / JKM5M LSI SAS 2008 6Gb/s Mezzanine Controller with Riser Card and Cabling - Refurbished

Alt MPN: 0XX2X2, JKM5M, 0JKM5M

For use with the Dell PowerEdge C6100 and C6145 Cloud servers.


Compatibility:

For use with the Dell PowerEdge C6100 and C6145 Cloud servers.

Dell
Part NumberXX2X2
Alt Part NumberJKM5M
InterfacePCI-e 2.0 x8
Device TypePCI-e Daughter Card
Transfer Rate6Gb/s SAS (Serial Attached SCSI)
Raid Support0, 1, 10
Supported ProtocolsSAS Serial Attached SCSI) / SATA (Serial ATA)
Ports
  • (1) One Mini SAS SFF-8087 Connection
  • (2) Two SATA Connections
  • CompatibilityDell PowerEdge C5000 / C5220 / C6100 / C6145

    Alternate MPNs: JKM5M 0JKM5M 0XX2X2

    Weight: 2 lb

    Warranty: 1 Year DiscTech

    Refurbished

    Condition Levels Explained

    The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
