Dell XX7MT / Toshiba MG06SCA800AY 8TB SAS 4Kn Hard Drive

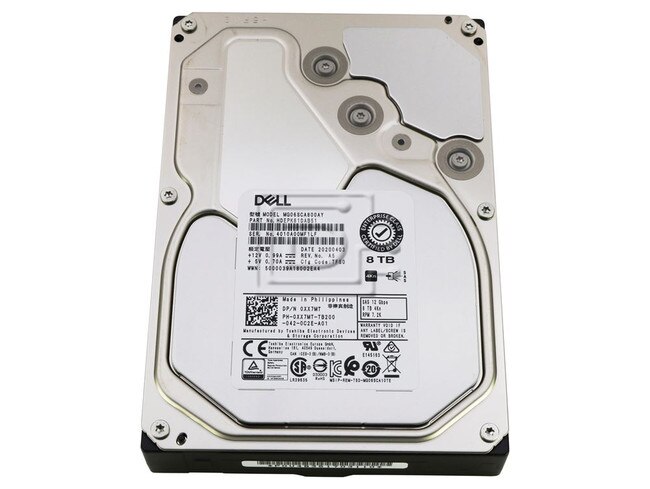

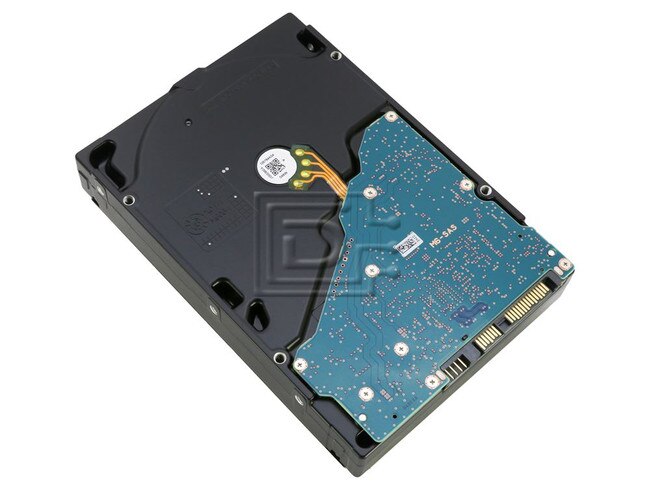

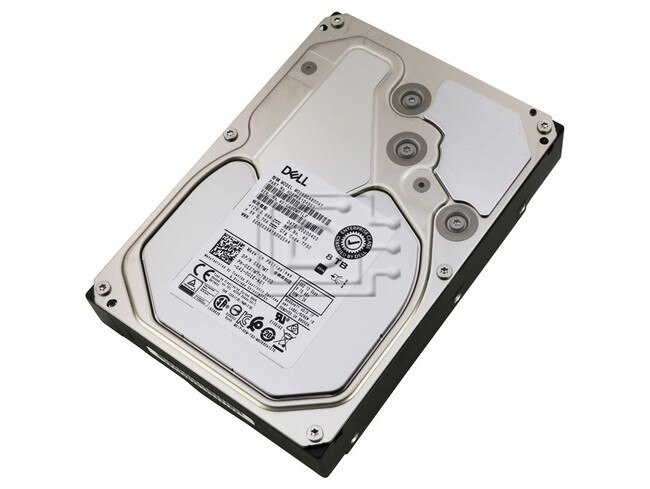

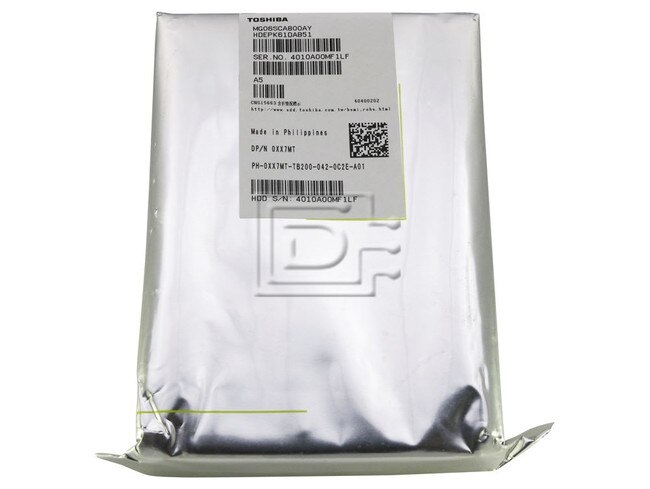

Toshiba MG06SCA800AY XX7MT 0XX7MT SAS Hard Drive Image 1 imageToshiba MG06SCA800AY XX7MT 0XX7MT SAS Hard Drive Image 2 imageToshiba MG06SCA800AY XX7MT 0XX7MT SAS Hard Drive Image 3 imageToshiba MG06SCA800AY XX7MT 0XX7MT SAS Hard Drive Image 4 image
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$399.00

Capacity:8TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-3 12Gbps
RAM:256MB
Click to see more 8TB SAS 7.2K RPM Drives

Description

Dell XX7MT / 0XX7MT / Toshiba MG06SCA800AY 8TB 3.5" LFF 12Gbps 7.2K RPM 4Kn SAS SIE MG06SCA Series Enterprise Hard Drive - Brand New

Dell XX7MT / 0XX7MT / Toshiba MG06SCA800AY 8TB / 8000GB 3.5" LFF / Large Form Factor 12.0 Gb/s 7200 RPM 4Kn MG06SCA Series Enterprise SIE / Sanitize Instant Erase SAS / Serial Attached SCSI  HDD / Hard Drive - Brand New

MG06SCA Series
The MG06SCA Enterprise Capacity HDD models provide capacities up to 10 TB and 7,200 rpm performance, in a robust design engineered for nearline business-critical workloads.

The MG06SCA series utilizes industry-standard 3.5-inch 26.1 mm height form factor and Advanced Format sector technologies for optimum capacity and data reliability. Toshiba Persistent Write Cache technology helps enhance performance while also maintaining data integrity in the event of a sudden loss of power.

Equipped with 12 Gbit/s SAS interface, the Enterprise Capacity MG06SCA models help save rack space and reduce the footprint and operational burden of business critical servers and storage systems.

512e or 4Kn Advanced Format sector technology models are available. 4Kn models (MG06SCAxxxA) offer optimum performance and compatibility with 4K-capable applications and operating environments. 512e models (MG06SCAxxxE) are broadly supported today and also help provide support for legacy applications and operating environments that require 512 B sector lengths.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Large Capacity (10 / 8 / 6 TB Models)
  • 7,200 rpm Performance
  • Dual-Port 12 Gbit/s SAS Interface
  • MTTF 2.5M hours
  • 550 total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology
  • Toshiba Persistent Write Cache Technology to help Maintain Data Integrity during Power-Loss Events
  • Sanitize Instant Erase (SIE) option model available



Applications

  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems
  • Object and File Storage Solutions



Compatibility

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SAS drives

Specifications

Toshiba MG06SCA
Enterprise Capacity HDD
512 Emulation (512e) Model#MG06SCA800AY
SPECIFICATIONS
Sector Size4Kn
Form Factor3.5-Inch
InterfaceSAS 12.0 Gbit/s
Formatted Capacity8TB / 8,000GB
PerformanceInterface Speed
  • 12.0 Gbit/s
  • 6.0 Gbit/s
  • 3.0Gbit/s
  • 1.5 Gbit/s

  • Rotation Speed
  • 7,200 RPM

  • Buffer Size
  • 256 MiB

  • Maximum Data Transfer Speed (Sustained)
  • 230 MiB/s
Supply VoltageAllowable Voltage
  • 12 V ± 10% / 5 V + 10% / -7%
  • 5 V +10/-7%
Power ConsumptionRandom Read / Write 4KB Q1
  • 9.87 W Typ

  • Active Idle (Idle-A)
  • 6.62 W Typ
Acoustics (Sound Power)Idle
  • 34 dB Typ
Environmental Limits
Ambient TemperatureOperating
  • 5° C to 55° C

  • Non-Operating
  • -40° C to 70° C
Relative HumidityOperating
  • 5 % to 90 % R.H. (No condensation)

  • Non-Operating
  • 5 % to 95 % R.H. (No condensation)
AltitudeOperating
  • -305 m ti 3,048 m

  • Non-Operating
  • -305 m ti 12,192 m
ShockOperating
  • 686 m/s2 { 70 G } ( 2 ms duration )

  • Non-Operating
  • 2,450 m/s2 { 250 G } ( 2 ms duration )
VibrationOperating
  • 7.35 m/s2 { 0.75 G } ( 5 to 300 Hz )
  • 2.45 m/s2 { 0.25 G } ( 300 to 500 Hz )

  • Non-Operating
  • 29.4 m/s { 3.0 G } ( 5- 500Hz )
Reliability
MTTF2,500,000 hours
Non-recoverable Error Rate10 error per 1016 bits read
Load / Unload600,000 times
Availability24 hours/day, 7 days/week
Rated Annual Workload (Total TB Transferred per Year, R/W)550 TB per Year
Mechanical Specifications
Width101.85 mm Max
Height26.1 mm Max
Length147.0 mm Max
Weight770 g Max
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: XX7MT 0XX7MT

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

  • Brand New
    Condition Levels Explained

    The product is brand new.

    • Warranty

    1 Year DiscTech Warranty

    4.7 Overall6966 Reviews
