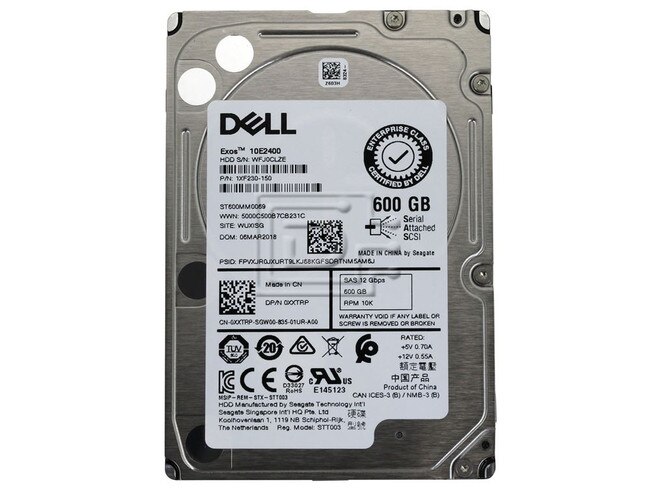

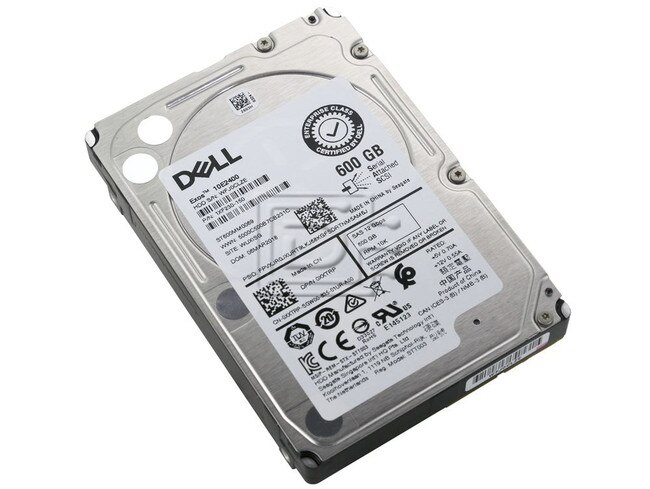

Dell XXTRP / Seagate Enterprise Performance ST600MM0069 600GB 10K 12Gb/s SAS 512N ISE Hard Disk

Seagate Part #/MPN: ST600MM0069

DiscTech Item #: SGT-ST600MM0069-RF-OE-DEL


$165.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$165.00

Enterprise Grade

Capacity: 600GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 130 to 250 MB/s

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Dell XXTRP / Seagate Enterprise Performance ST600MM0069 600GB 10K 12Gbps 2.5 inch SFF Serial SCSI / SAS 512N ISE Hard Drive - Refurbished OEM


Alt DPN: XXTRP 0XXTRP

Ideal for NAS, SAN and DAS external enterprise storage solutions.

Seagate® Enterprise Performance 10K HDD drives provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.

The Advanced Caching functionality (available on 512E/4Kn only) provides improved performance over standard HDDs in real-world workloads. This improvement is due to the addition of a solid state component that caches “hot” data for reads as well as protects write data via non-volatile cache (NVC).

Seagate Enterprise Performance 10K HDD drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI specifications, this document, and the SAS Interface Manual (part number 100293071) which describes the general interface characteristics of this drive. Seagate Enterprise Performance 10K HDD drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA hard disk drives. This allows integrators to continue to leverage existing investment in SCSI while gaining a 12Gb/s serial data transfer rate.

Performance

• 10.5K RPM spindle. Average latency = 2.9ms

• 1200MB/s maximum instantaneous data transfers.

• Adaptive seek velocity; improved seek performance

• Background processing of queue

• Firmware-controlled multisegmented cache designed to dynamically adjust segments for enhanced system performance

• Supports start and stop commands (spindle stops spinning)

    Best-fit Applications

    • Mission-critical servers and external storage arrays
    • Power- and space-constrained data centres
    • Green IT and drive-retirement cost reduction initiatives
    • Compliance or data security initiatives
    • Migration from 3.5 inch drive systems to next-generation technology

    Compatibility:

    This drive is compatible with any server that accepts small form factor (SFF) SAS 12Gbps hard drives

    Model NumberST600MM0069
    Model NameEnterprise Capacity 10K v9
    Form Factor(width)70.10mm (2.5in)
    Form Factor(height)15.00mm (0.6in)
    Formatted Capacity600 GB
    Rotational Speed10,000 rpm
    Cache64MB
    Average Latency2.9 ms
    Sustained Transfer Rate:130 to 250 MB/s
    Annualized Failure Rate (AFR)0.44%
    Operating Temperature (°C)5 to 55
    Instant Secure Erase ISEYes

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: XXTRP 0XXTRP

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    Refurbished

    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
