Dell XY986 / Seagate ST2000NX0273 / 0XY986 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS HDD

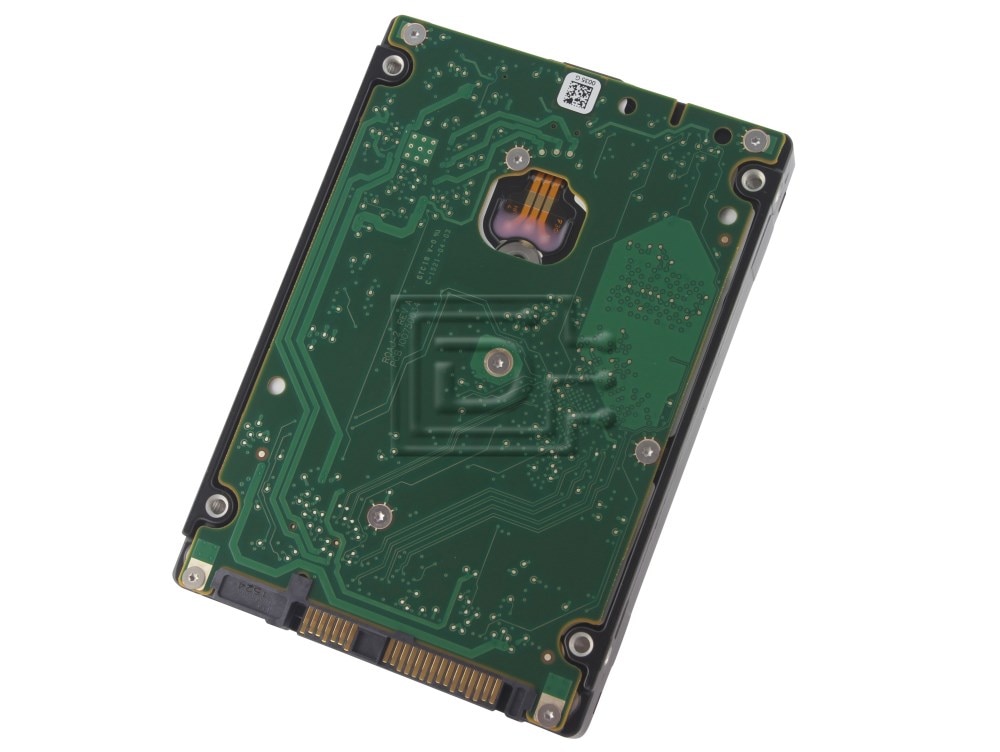

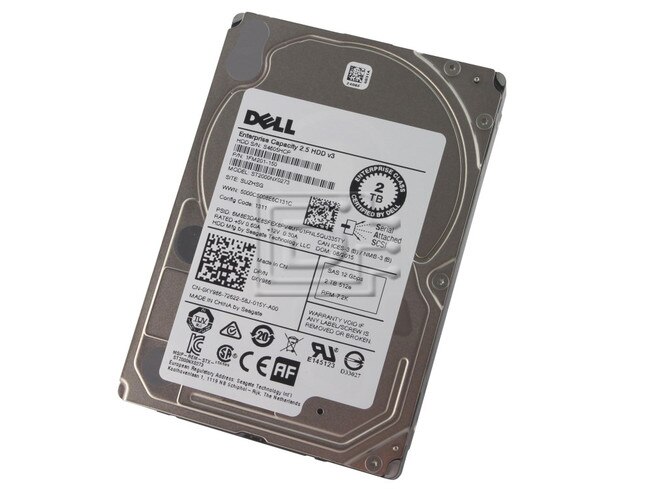

Seagate ST2000NX0273 XY986 0XY986 1FM201 1FM201-150 SAS Hard Drive Image 1 imageSeagate ST2000NX0273 XY986 0XY986 1FM201 1FM201-150 SAS Hard Drive Image 2 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$114.99

Capacity:2TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-3 12Gbps
RAM:128MB

Description

Dell XY986 / Seagate ST2000NX0273 / 0XY986 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS HDD - Refurbished OEM

Dell Part Number: XY986, 0XY986, 1FM201, 1FM201-150

Enterprise Capacity 2.5 HDD

Design Small and Deliver BIG – 2.5-Inch Nearline Drive

  • Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
  • Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
  • Choose 12Gb/s SAS for high data integrity, scalability and fast data access.
  • Third-generation, enterprise-class reliability for 24x7 environmental robustness.
  • Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
  • Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
  • Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods.



Best-Fit Applications

  • Storage-hungry business applications
  • Storage area networks (SAN) and network attached storage (NAS).
  • Maximum-capacity entry-level servers and blade servers
  • Rich media content storage
  • Enterprise backup and restore – D2D, virtual tape
  • Cloud computing



Compatibility

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Specifications

Seagate
Part NumberST2000NX0273
Dell Part NumberXY986
Specification5xx Emulation
Capacity2 TB/2,000 GB
Features
PowerChoice on demand power optionYes
Protection InformationYes
Low HalogenYes
RAID RebuildYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)1.4 million
Reliability Rating @ Full 24x7 operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10e15
Power-On Hours per Year8760
Bytes per Sector512, 520, 528
Performance
Spindle Speed (RPM)7200
Cache Buffer, Multisegmented (MB)128
Interface Access Speed (Gb/s)12.0, 6.0, 3.0
Max. Sustained Transfer Rate (MB/s)136
Average Latency (ms)4.16
Interface PortsDual
RV Tolerance (rad/s to 1800Hz)16
Power Management
Idle Power (W)3.53
Typical Operating, Random Read (W)6.02
PowerChoice Technology (Standby) (W)1.52
Power Supply Requirements+12V and +5V
Environmental
Temperature, Operating (°C)5 to 55
Vibration, Operating, 5Hz to 500Hz (Gs)0.5
Vibration, Nonoperating, 5Hz to 500Hz (Gs)3.0
Shock, Operating, 2ms (Gs)25
Shock, Nonoperating, 2ms (Gs)400
Acoustics, Typical Idle (bels)2.8
Acoustics, Typical Seel (bels)3.2
Physical
Height (in/mm)0.591/15.00
Width (in/mm)2.760/70.10
Depth (in/mm)3.955/100.45
Weight (lb/kg)0.437/0.198
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: XY986 0XY986 1FM201 1FM201-150

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

Refurbished

Warranty

1 Year DiscTech Warranty
