Dell Xyratex Compellent GVCVY / Seagate 9EF248-004 1TB SAS Hard Disk Drive

Seagate Part #/MPN: GVCVY

DiscTech Item #: XYR-GVCVY-BN-OE


$179.00
$179.00

Enterprise Grade

Capacity: 1TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 16MB

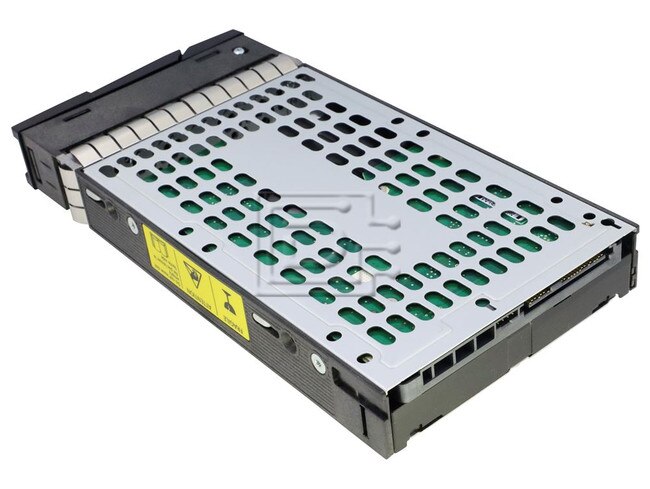

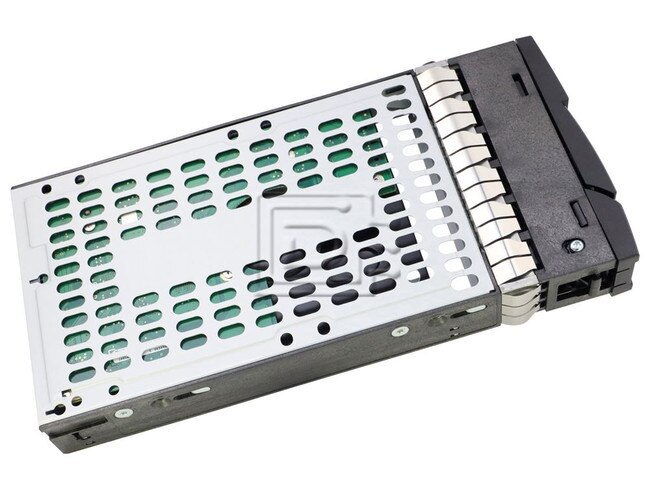

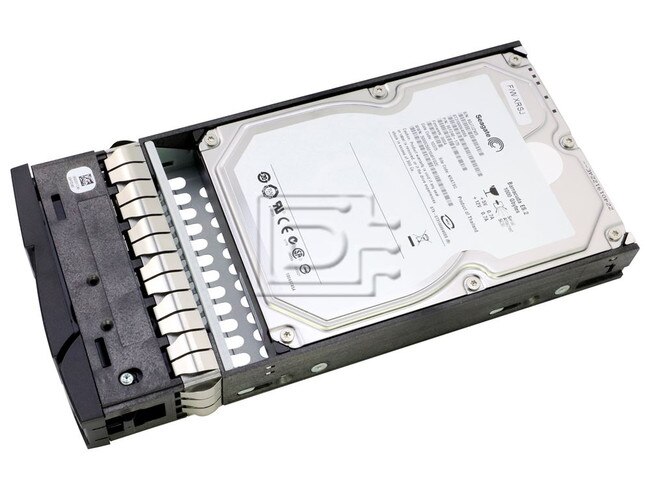

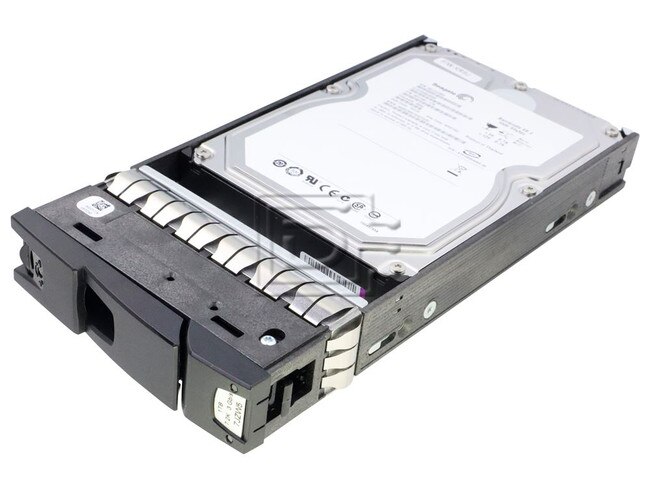

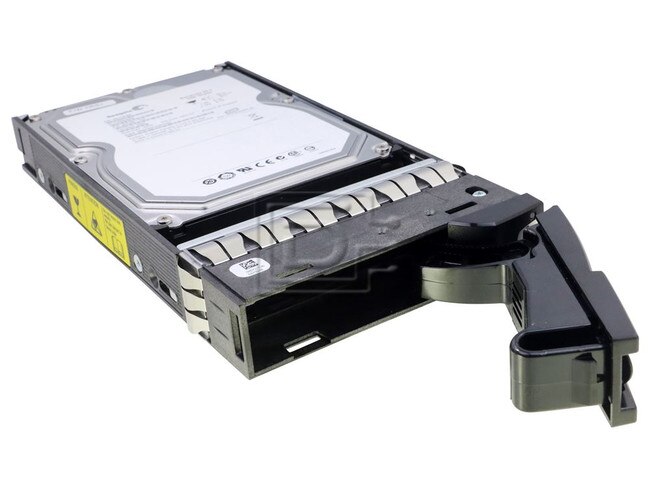

Dell Xyratex Compellent GVCVY / 0GVCVY / Seagate ST31000640SS / 9EF248-004 w/ XRSJ Firmware 1TB 3.5" 7.2K SAS Hard Drive w/ 82984-01 Tray - Brand New

Dell Xyratex Compellent GVCVY / 0GVCVY / Seagate ST31000640SS / 9EF248-004 w/ XRSJ Firmware 1TB / 1000GB 3.5" LFF 7.2K SAS / Serial Attached SCSI 3Gbps HDD / Hard Disk Drive w/ 82984-01 Tray - Brand New
Alt PNs: 0GVCVY
The Barracuda ES.2 drive is the perfect solution for high-capacity enterprise storage applications such as the migration of mission-critical transactional data, from tier 1 to tier 2 (nearline) storage, where dollars/GB and GB/watt are a primary concern. With energy-saving PowerTrim™ features, superior rotational vibration tolerance and a choice of SATA or SAS interfaces, the Barracuda ES.2 drive provides world-leading technology and value.

Capacity:  1TB


Compatibility: This 3.5" SAS Drive is compatible with the following Dell Xyratex Compellent systems supporting 3.5" hot swappable disks:
HB-1235

Specifications1000 GB / 1TB
Model NumberGVCVY 0GVCVY
InterfaceSAS 3Gb/s
Cache16 MBytes
Capacity1000 GB
PHYSICAL
Height (max)26.11 mm  (1.02 inches)
Width (max)101.6 mm  (4.00 inches)
Length (max)146.99 mm  (5.78 inches)
Weight (typical)530 grams  (>=1.168 pounds)
COMPLIANCE
European Union Restriction of Hazardous SubstancesY
PERFORMANCE
Spindle Speed7,200 rpm
Average latency4.16 msec
Random read seek time8.5 msec
Random write seek time9.5 msec
RELIABILITY
MTBF1,200,000 hours
Annual Failure Rate0.73%
ENVIRONMENT
Ambient Temperature
Temperature, Operating (°C)5 - 55
Temperature, Nonoperating (°C)-40 - 70
ACOUSTICS
Acoustics (Idle Volume)2.7 bels

Alternate MPNs: 0GVCVY

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
