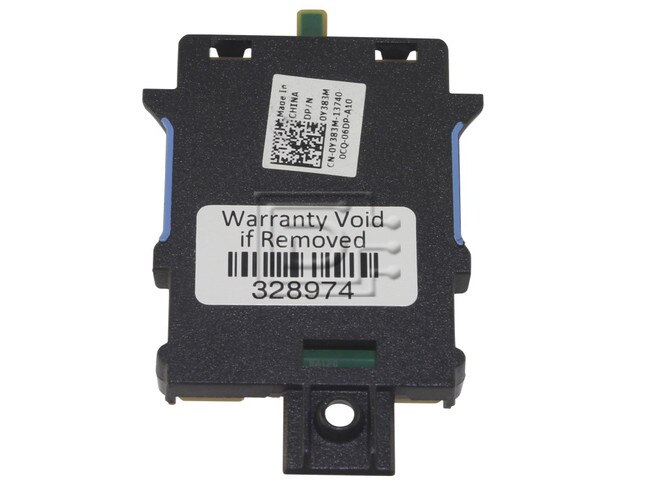

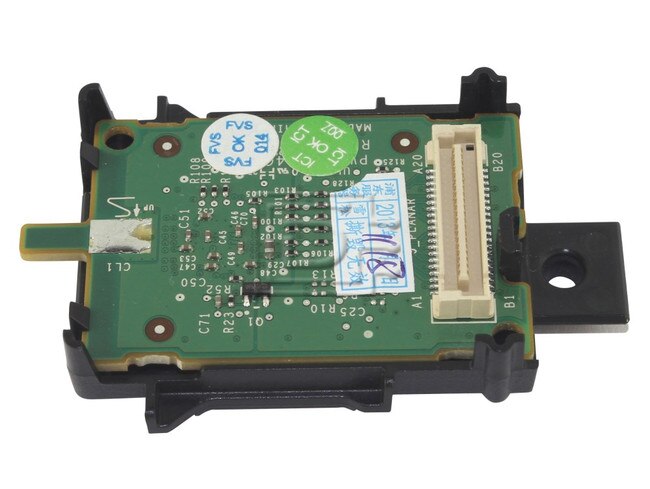

Dell Y383M / JPMJ3 / 313-8835 / N093G iDRAC 6 Express Remote Access Controller

Dell Part #/MPN: Y383M

DiscTech Item #: DEL-Y383M-NP-OE


$65.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$65.00

Enterprise Grade

Dell Y383M / JPMJ3 / 313-8835 / N093GMiDRAC 6 Express Remote Access Controller for R210 R310 T310 R410 T410 R415 R510 R515 - New Pull

  • Provides remote power management functions, such as shutdown and reset, from a management console
  • Alerts you to potential managed node issues through an e-mail message or SNMP trap
  • Features password-level security management to prevent unauthorized access to a remote system
  • Offers role-based authority to provides assignable permissions for different systems management tasks
  • Supports Intelligent Platform Management Interface (IPMI)

The Integrated Dell™ Remote Access Controller6 (iDRAC6) Express is a systems management hardware and software solution that provides remote management capabilities, crashed system recovery and power control functions. It features integrated System-on-Chip microprocessor for the remote monitor/control system using a web interface and the SM-CLP command line over a serial, Telnet/SSH connection. With integrated Dell OpenManage™ software it enables you to launch the iDRAC6 web interface from Dell OpenManage Server Administrator or IT Assistant. Additionally, you can configure the iDRAC6 to send you an e-mail or Simple Network Management Protocol (SNMP) trap alert for warnings or errors. To help you diagnose the probable cause of a system crash, iDRAC6 can log event data and capture an image of the screen when it detects that the system has crashed. Support for Microsoft Active Directory® authentication, it centralizes iDRAC6 user IDs and passwords in Active Directory using the standard schema or an extended schema. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Alternate Part Numbers: JPMJ3 0JPMJ3 313-8835 N093G 0N093G


Compatibility:

Compatible with the following servers: R210 R310 T310 R410 T410 R415 R510 R515

Alternate Part Numbers: JPMJ3 0JPMJ3

FeatureiDRAC6 ExpressiDRAC6 Enterprise
Interface & Standards Support
IPMI 2.0YesYes
Web-based GUIYesYes
SNMP & IPMI DiscoveryYesYes
WSMANYesYes
SMASH-CLP (SSH)YesYes
RACADM command-line (SSH & local)YesYes
RACADM command-line (remote)NoYes
Connectivity
Shared/failover network modesYesYes
IPv4YesYes
VLAN taggingYesYes
IPv6YesYes
Dynamic DNSYesYes
Dedicated NICNoYes
Security & Authentication
Role-based authorityYesYes
Local usersYesYes
SSL EncryptionYesYes
Active DirectoryYesYes
“Generic” LDAP supportYesYes
Two-factor authenticationYesYes
Single sign-onYesYes
PK Authentication (for SSH)NoYes
Remote Management & Remediation
Remote firmware updateYesYes
Server power controlYesYes
Serial-over-LAN (with proxy)YesYes
Serial-over-LAN (no proxy)YesYes
Power budgetingYesYes
Last crash screen captureYesYes
Boot captureYesYes
Virtual MediaNoYes
Virtual ConsoleNoYes
Virtual Console sharingNoYes
Remote Virtual Console LaunchNoYes
Remote File ShareNoYes
Virtual FlashNoNo
Monitoring
Sensor monitoring & alertingYesYes
Real-time power monitoringYesYes
Real-time power graphingYesYes
Historical power countersYesYes

Click here to view the manufacturer's item description/brochure

Alternate MPNs: JPMJ3 0JPMJ3 JPMJ3 0JPMJ3 313-8835 N093G 0N093G

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
