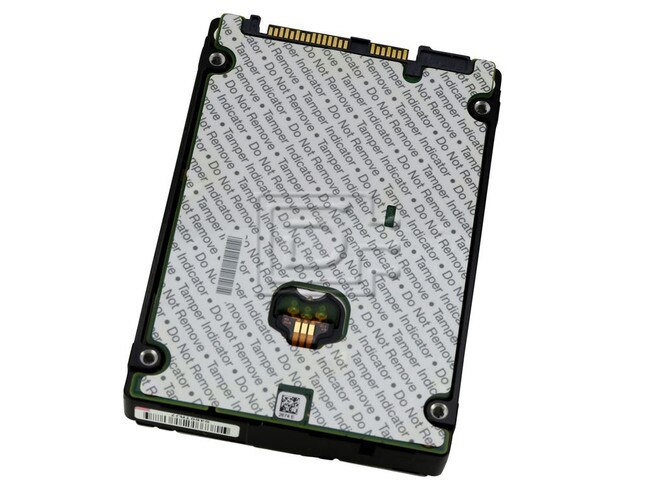

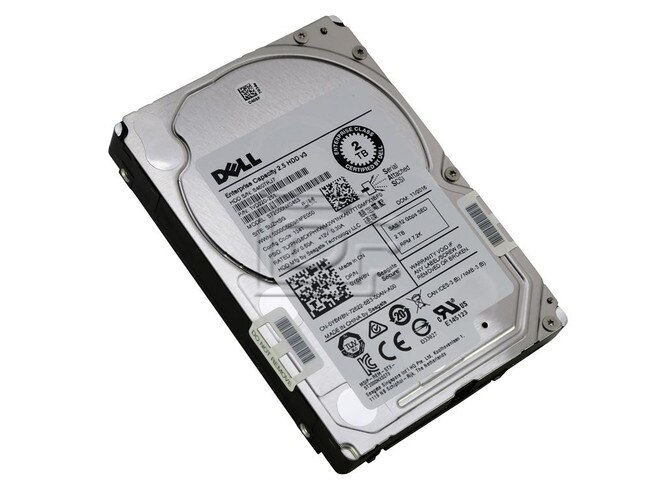

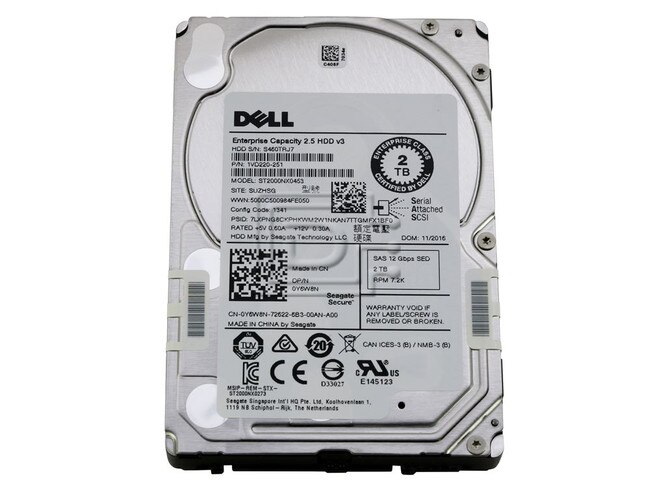

Dell Y6W8N 2TB SED SAS 12Gbps 7.2K RPM 2.5" SFF Hard Drive Seagate ST2000NX0453 PowerVault ME4
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:39Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 2TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Dell Y6W8N / Seagate ST2000NX0453 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS SED HDD ME4 - Brand New
Dell Part Number: Y6W8N, 0Y6W8N
Enterprise Capacity 2.5 HDD
Design Small and Deliver BIG – 2.5-Inch Nearline Drive
- Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
- Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
- Choose 12Gb/s SAS for high data integrity, scalability and fast data access.
- Third-generation, enterprise-class reliability for 24x7 environmental robustness.
- Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
- Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
- Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods.
Best-Fit Applications
- Storage-hungry business applications
- Storage area networks (SAN) and network attached storage (NAS).
- Maximum-capacity entry-level servers and blade servers
- Rich media content storage
- Enterprise backup and restore – D2D, virtual tape
- Cloud computing
Compatibility
This drive is designed to work in the Dell ME4 series arrays. This includes the ME4012, ME4024, ME4084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.
Specifications
| Seagate | |
|---|---|
| Part Number | ST2000NX0453 |
| Dell Part Number | Y6W8N |
| Specification | 5xx Emulation |
| Capacity | 2 TB/2,000 GB |
| Features | |
| PowerChoice on demand power option | Yes |
| Protection Information | Yes |
| Low Halogen | Yes |
| RAID Rebuild | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.4 million |
| Reliability Rating @ Full 24x7 operation (AFR) | 0.63% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10e15 |
| Encryption | SED |
| Bytes per Sector | 512, 520, 528 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Cache Buffer, Multisegmented (MB) | 128 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate (MB/s) | 136 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| RV Tolerance (rad/s to 1800Hz) | 16 |
| Power Management | |
| Idle Power (W) | 3.53 |
| Typical Operating, Random Read (W) | 6.02 |
| PowerChoice Technology (Standby) (W) | 1.52 |
| Power Supply Requirements | +12V and +5V |
| Environmental | |
| Temperature, Operating (°C) | 5 to 55 |
| Vibration, Operating, 5Hz to 500Hz (Gs) | 0.5 |
| Vibration, Nonoperating, 5Hz to 500Hz (Gs) | 3.0 |
| Shock, Operating, 2ms (Gs) | 25 |
| Shock, Nonoperating, 2ms (Gs) | 400 |
| Acoustics, Typical Idle (bels) | 2.8 |
| Acoustics, Typical Seel (bels) | 3.2 |
| Physical | |
| Height (in/mm) | 0.591/15.00 |
| Width (in/mm) | 2.760/70.10 |
| Depth (in/mm) | 3.955/100.45 |
| Weight (lb/kg) | 0.437/0.198 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: Y6W8N 0Y6W8N
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
