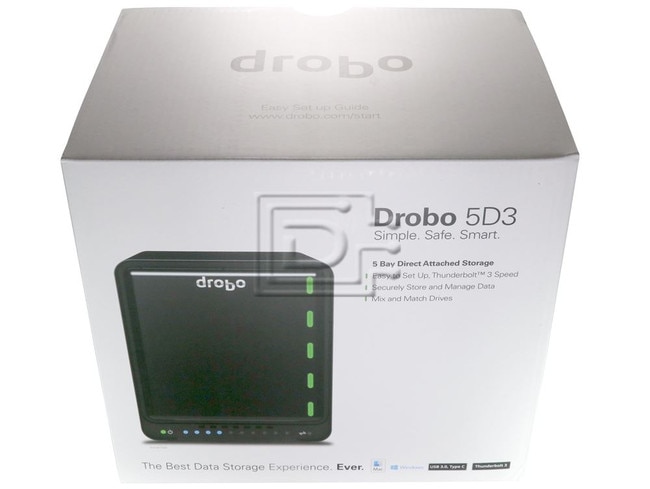

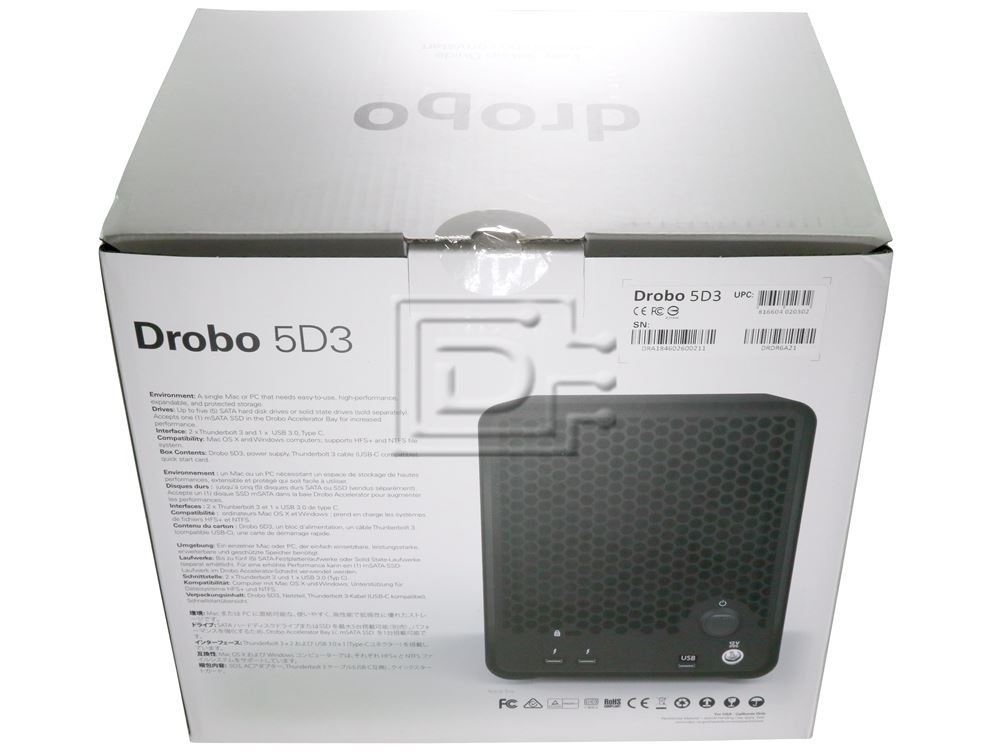

Drobo 5D3 DRDR6A21 Direct Attached Storage Array

DROBO Part #/MPN: DRDR6A21

DiscTech Item #: DRO-DRDR6A21-BN-1Y


$729.00
  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$729.00

Interface Types: SATA, SATA 1.8in Mini-SATA / MSATA, USB 3.0 3.1 3.2, USB Type C, Thunderbolt

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Thunderbolt 3 - 40Gbps

Bays/Ports/Slots: 5

Wattage/VA: 120W

Voltage: 110-240V Multi

Drobo 5D3 DRDR6A21 5-Bay Thunderbolt3 / USB 3.0, Type C DAS Storage Array - Diskless - Brand New

Drobo 5D3 DRDR6A21 5-Bay Thunderbolt3 / USB 3.0, Type C DAS / Direct Attached Storage Array - Diskless - Brand New

Drobo 5D3 5-bay storage array, Thunderbolt3/USB 3.0-Type C

Lightning Fast Storage for Your Creative Workflow
The Drobo 5D3 is the 3rd generation 5 Bay Direct Attached Storage reimagined for media professionals, content creators, and small businesses. Lightning fast Thunderbolt™ 3 technology delivers the speed, and Drobo’s fully automated BeyondRAID™ functionality provides the simplicity for the best storage experience on the planet.

The 5D3 is easy to use, expandable, flexible and protected – exactly what you would expect from a Drobo. You can safely edit, store and view photos and videos for your 4K/5K workflows, as well as back up your personal and business data.

Data Protection and Expandability Made Simple
Built on award-winning BeyondRAID™ technology with single- or dual-drive redundancy, Drobo 5D3 protects your data without any user interaction, even in the event of multiple drive failures.

Drives can be added or hot-swapped and updated in real time for storage expansion with zero downtime. If you’re running low on space, the lights on the front tell you what to do. Just add a drive in an empty bay or remove a smaller drive and replace it with a larger one.

Power of Thunderbolt 3 and Flexibility of USB Type-C
Thunderbolt 3 technology provides performance that’s twice as fast as the previous generation, Drobo 5D. This optimizes your performance when transferring large volumes of data.

Drobo 5D3 is equipped with dual Thunderbolt 3 ports for daisy chaining. Connect up to six Thunderbolt devices and/or a non-Thunderbolt monitor at the end of the chain. Supports one 5K monitor display or two 4K monitors. By having 5D3 arrays in a chain, you can have up to 300TB of usable capacity and achieve throughput by enabling the performance of Thunderbolt 3.

Drobo is the only 5 bay direct attached storage array that offers Thunderbolt 3 and USB 3.0 Type-C. This latest generation also offers high-performance connectivity and is backward compatible with any computer running supported versions of Mac OS X or Windows.

Enhanced Time Machine Support
Drobo is compatible with Apple’s Time Machine, which will consume the capacity of an external storage system. By utilizing the Drobo Dashboard, you can simply allocate capacity limits for backups and data storage.

Capacity AND Performance
Drobo 5D3 includes a built-in Accelerator Bay, with an mSATA card holder (mSATA card not included). Our patented Accelerator Cache technology keeps a copy of your most frequently accessed data to deliver blazing-fast speeds. The accelerator cache can dramatically speed up loading large photo libraries and other I/O intensive operations, smoothing out workflows allowing you to optimize productivity

Power Protecting Your Critical Data
Drobo doesn’t just protect you from a drive failure, but also from potential data loss after a power outage. Often found only in arrays that cost tens of thousands of dollars, Drobo 5D3 includes a battery that protects all data in memory, or cache, that is, data on its way to the drives.

During a sudden power loss, the internal battery keeps the Drobo alive long enough for the data to be written to nonvolatile storage. The battery recharges itself and lasts for the life of the product.

Designed for You
Drobo devices have always been space efficient and the Drobo 5D3 is no exception. It is designed to provide high capacity, without taking up a lot of your valuable desk space. It is compact because of Drobo’s unique carrier-less drive bay design, allowing drives to be installed very close to each other. Includes Thunderbolt 3 cable.

*Laptops and computers with Thunderbolt 2 ports will require a Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter.

Drobo 5D3
Connectivty
  • 2 x Thunderbolt 3 ports; second port for daisy chaining Thunderbolt devices, including 5K and dual 4K displays (Mac OS X only)
  • 1 x USB 3.0, Type-C port
  • Drives and Expansion
  • Up to five (5) 3.5″ SATA II/III hard disk drives or solid state drives (sold separately).
  • Drobo Accelerator Bay for increased performance with one (1) mSATA solid state drive (card sold separately).
  • Drives of any manufacturer, capacity, spindle speed, and/or cache can be used. No carriers or tools required. Click here for drive recommendations
  • Expandable by adding drives or hot-swapping drives with larger ones. Use the Capacity Calculator to estimate available storage in various configurations.
  • BeyondRAID Features
  • Thin Provisioning
  • Instant Expansion
  • Mixed Drive Size Utilization
  • Automatic Protection Levels
  • Single – or Dual-Disk Redundancy
  • Virtual Hot Spare
  • Data Aware
  • Drive Re-ordering
  • Management
  • Drive bay indicator lights, capacity gauge, status lights
  • Drobo Dashboard version 3.1.1 or later
  • Operating System Support
  • Apple® Macintosh® macOS 10.11 and higher
  • Microsoft® Windows® 10
  • Microsoft® Windows® 8
  • Microsoft® Windows® 7
  • File System Options
  • Apple® macOS: HFS+
  • Microsoft® Windows: NTFS
  • Hardware Features
  • Carrier-less Drive Bays
  • Power Fail Protection with Internal Battery
  • Metal Chassis and Cover
  • Kensington Lock Port for Security (lock not included)
  • Additional Software Features
  • Hot Data Caching
  • DroboApps
  • myDrobo compatible
  • Maximum System Capacity: 64TB
  • Drive Spin Down
  • Dim Lights
  • OS X Time Machine Support
  • OS X / macOS Time Machine Support
  • Cloud access
  • Size and Weight
  • Desktop Form Factor
  • Width: 5.9 in (150.3 mm)
  • Height: 7.3 in (185.4 mm)
  • Depth: 10.3 in (262.3 mm)
  • Weight: 8.5 lb (3.9 kg) without hard drives, power supply, or packaging
  • Power and Cooling
    • External Power Supply
      • AC Input – 100-240VAC~2A, 50-60Hz
      • DC Output – 12V, 10A, 120W max
    • Fixed, 120mm variable speed cooling fan
    • 15W of power to slow charge a Thunderbolt 3 Laptop
    Box Contents
  • Drobo 5D3
  • 3.3 ft (1 m) Thunderbolt 3 cable
  • 6 ft (1.8 m) power cord with power supply
  • Quick Start Card

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 9.5 lb

    Warranty: 1 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
