EMC 005050062 / Hitachi 0F19459 / 0F14688 4TB SATA Hard Drive
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 4TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 256MB |
Description

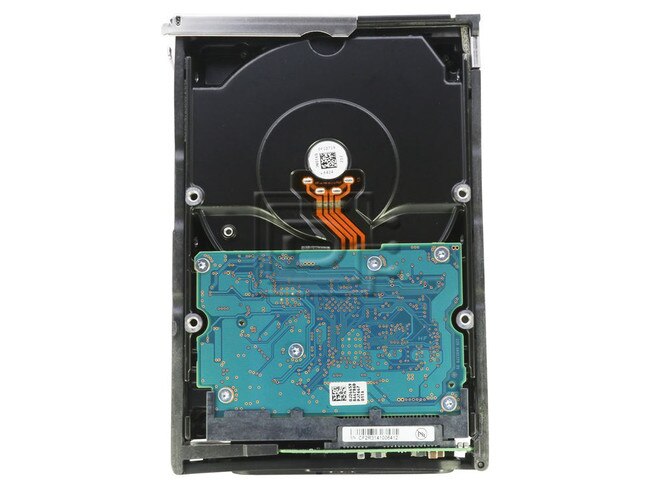

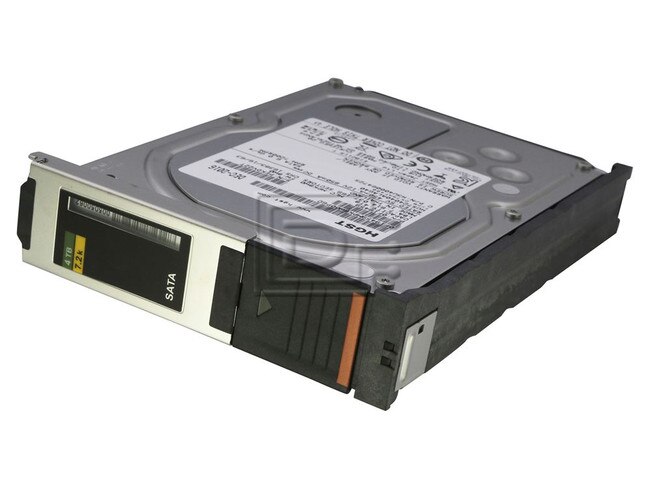

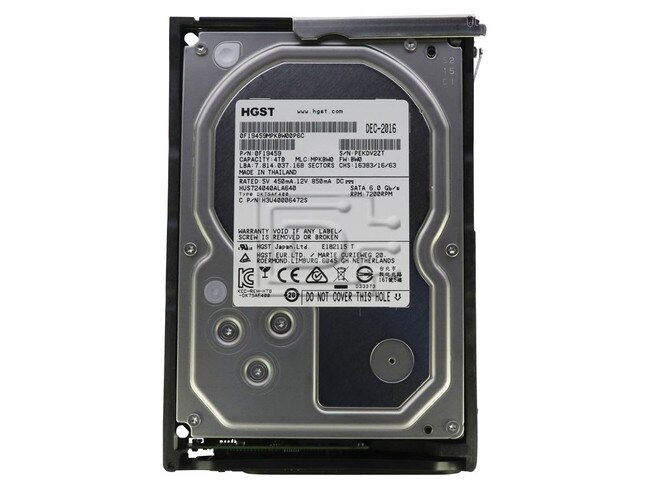

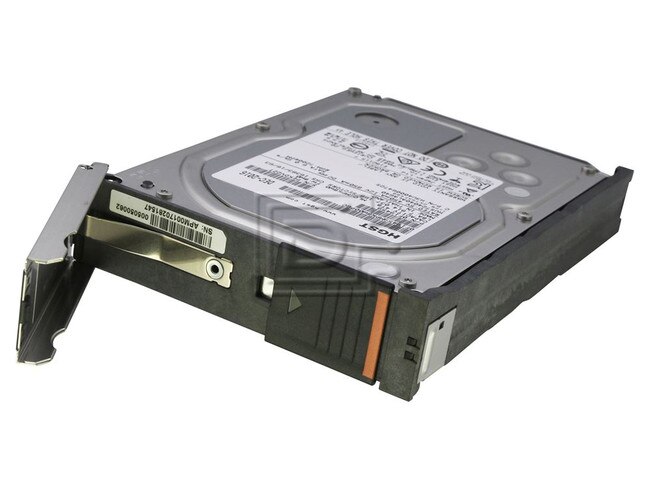

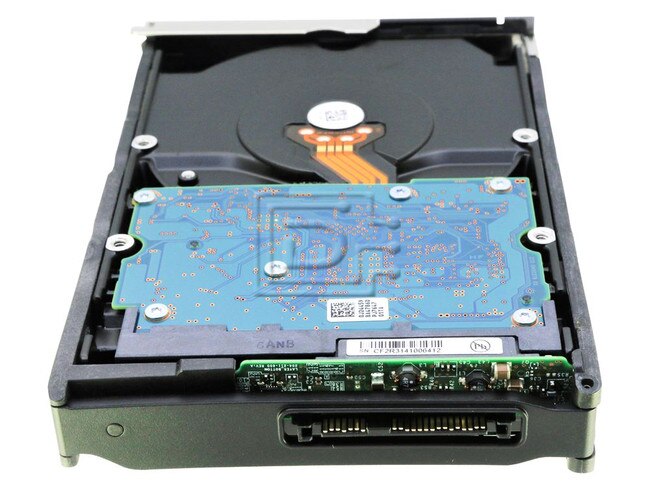

EMC 005050062 / Hitachi Ultrastar 7K4000 HGST 0F19459 / HUS724040ALA640 4TB 3.5" 6Gbps 7.2K RPM Enterprise SATA Hard Drive w/ 100-564-424 04 tray - Brand New
EMC 005050062 / Hitachi Ultrastar 7K4000 HGST 0F19459 / HUS724040ALA640 4TB / 4000GB 3.5" 6Gbps 7.2K RPM Enterprise SATA HDD / Hard Disk Drive w/ 100-564-424 04 tray - Brand New
Compatibility
This drive is compatible with any system that accepts 3.5" SATA 4TB 7.2K Drives.
Designed for:
Dell EMC Data Domain DS60 Expansion Shelf
Dell EMC Data Domain DPDS60 Expansion Shelf
Specifications
| EMC 005050062 Specifications | |
|---|---|
| Model | HUS724040ALA640 |
| Part Number | 0F19459 |
| Configuration | |
| Interface | SATA 6Gb/s |
| Capacity (GB) at 512 bytes/sector | 4TB |
| Form factor | 3.5-inch |
| Sector size (bytes) | 512n |
| Max. areal density (Gbits/sq. in) | 475 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 7200 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 181 |
| Seek time (read, ms, typical) | 8.0 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 10^15 |
| Load/Unload cycles (at 40° C) | 600,000 |
| Availability (hrs/day x days/wk) | 24x7 |
| MTBF1 (M hours) | 2.0 |
| Annualized Failure Rate1 (AFR) | 0.44% |
| Acoustics | |
| Idle (Bels, typical) | 2.9 |
| Power | |
| Requirement | +5 VDC (+/-5%) +12VDC (+10%/-8%) |
| Startup current (A, max) | 1.2 (+5V), 2.0 (+12V) |
| Read/write (W) | 11.4 |
| Idle (W, avg) | 6.9 |
| Unload idle (W) | 5.7 |
| Physical size | |
| z-height (mm, max) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
| Weight (g, typical) | 690 |
| Environmental (operating) | |
| Ambient temperature | 5o to 60o C |
| Shock (half-sine wave 2 ms, G) | 70 |
| Vibration (G RMS, 5 to 500 Hz) | 0.67 (XYZ) |
| Environmental (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 1ms, G) | 300 |
| Vibration (G RMS, 5 to 500 Hz) | 1.04 (XYZ) |
ROHS Compliant
Alternate MPNs: 5050062 0F19459 HUS724040ALA640
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
