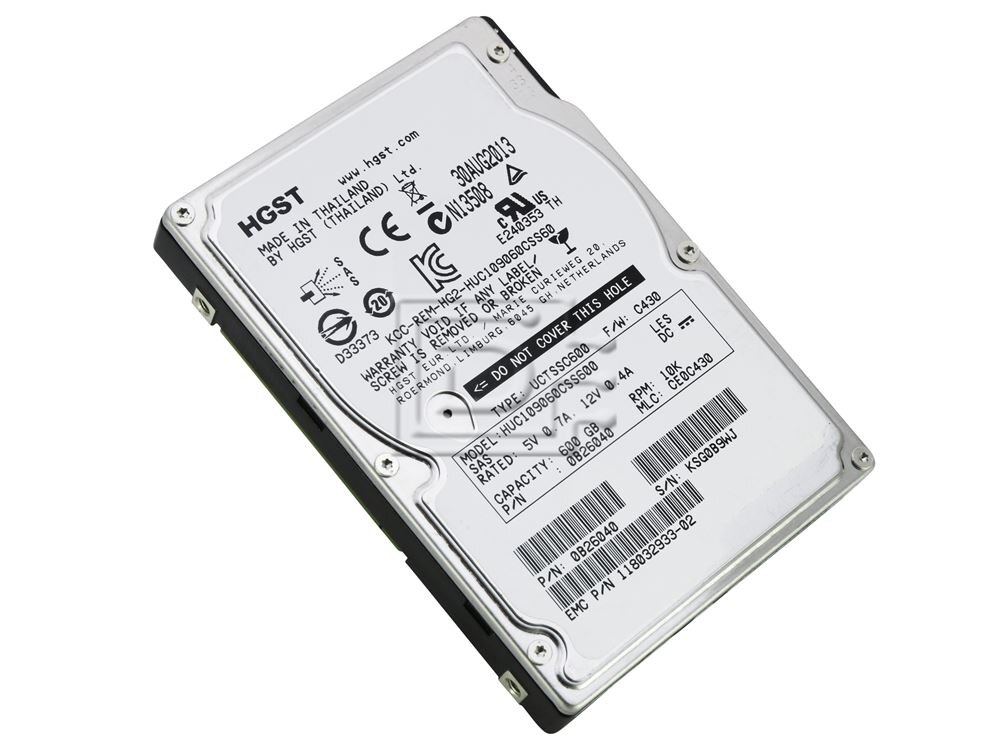

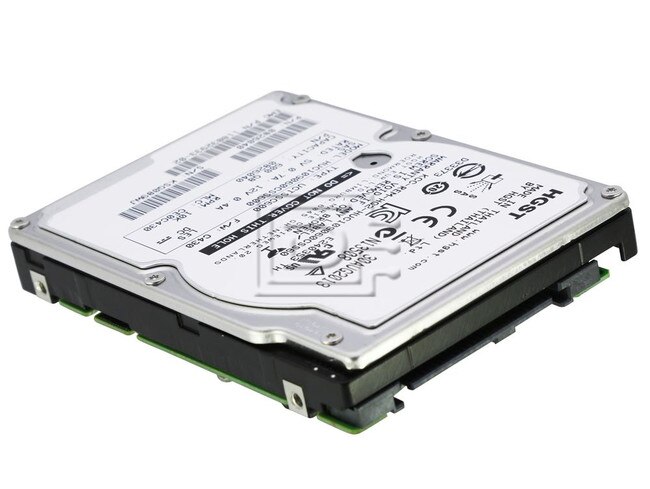

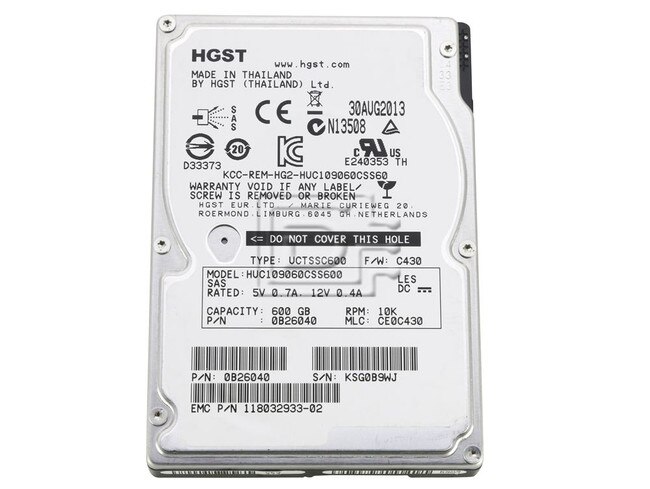

EMC 118032933-02 / HGST Ultrastar C10K900 0B26040 / HUC109060CSS600 600GB 10K 6Gbps SFF SAS HDD

Hitachi Part #/MPN: 0B26040

DiscTech Item #: HIT-0B26040-RF-OE-EMC


Enterprise Grade

Capacity: 600GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 520

Sustained Throughput: 198 - 117

Average Seek Time: 3.8 / 4.2

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

EMC 118032933-02 / HGST Ultrastar C10K900 0B26040 / HUC109060CSS600 600GB 10K 6Gbps SFF SAS HDD - Refurbished

EMC 118032933-02 / HGST Ultrastar C10K900 0B26040 / HUC109060CSS600 600GB 10,000 RPM 6Gbps 520 byte 2.5" SFF SAS / Serial Attached SCSI Hard Disk Drive - Refurbished

HGST Quality and Service

HGST’s Ultrastar C10K900 extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data.

HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today’s demanding computing needs.

Model NumberHUC109060CSS600
Model NameUltrastar C10K900
InterfaceSAS 6Gb/s
Capacity (GB)600
Recording zones40
Data heads (physical)4
Data disks2
Max. areal density (Gbits/sq. in.)494
Data buffer (MB)64
Rotational speed (RPM)10,000
Latency average (ms)<3.0
Media transfer rate (Mbits/s, max)2105
Interface transfer rate (MB/s, max)600
Sustained transfer rate (MB/s, typical)198 - 117
Seek time (read, ms, typical)3.8 / 4.2
Requirement+5 VDC (+/-5%), +12 VDC (+/-5%)
Operating, (W, typical)5.8
Low power idle (W)3.0
Power consump. efficiency index (W/GB)0.0058
Physical Size
z-height (mm)14.8
Dimensions (width x depth, mm)70.1 x 100.6
Weight (g, max)204
Environment (operating)
Ambient temperature5o to 55o C
Shock (half-sine wave 2ms, G)60
Environment (non-operating)
Ambient temperature-40o to 70o C
Shock (half-sine wave, 2ms, G)>300
Vibration, random (G RMS, 5 to 500 Hz)1.5, all axes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUC109060CSS600 118032933-02

Weight: 1 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
