EMC CLARRiiON CX-2G10-300 Fiber Fibre Channel Hard Disk

EMC Part #/MPN: CX-2G10-300

DiscTech Item #: EMC-CX-2G10-300-RF-OE


Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 520

Average Seek Time: 4.5 / 5.0

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 8MB

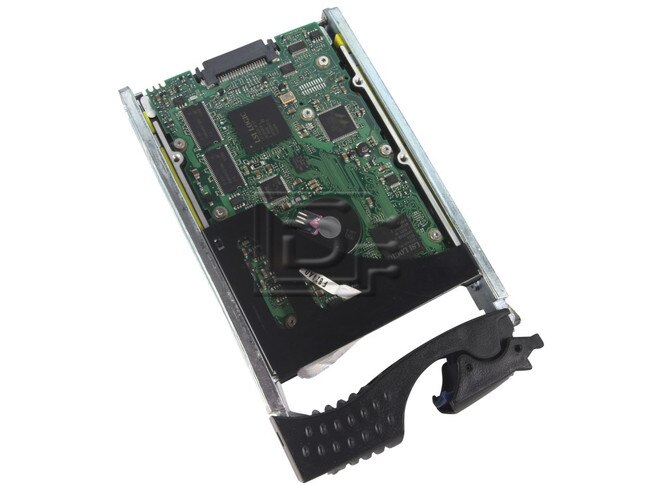

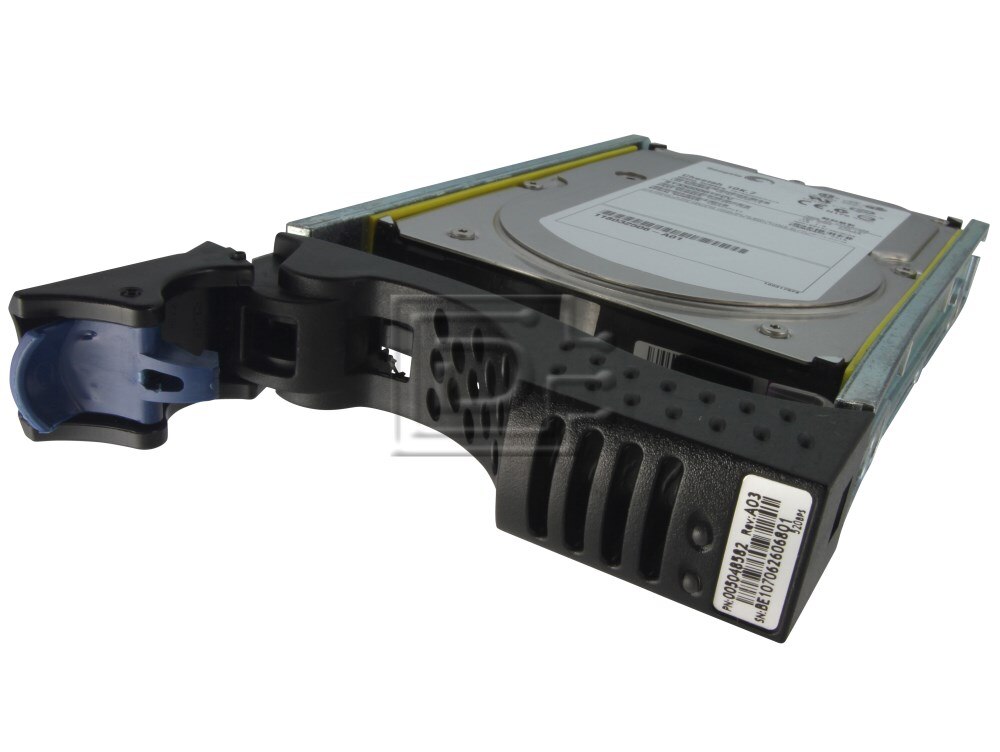

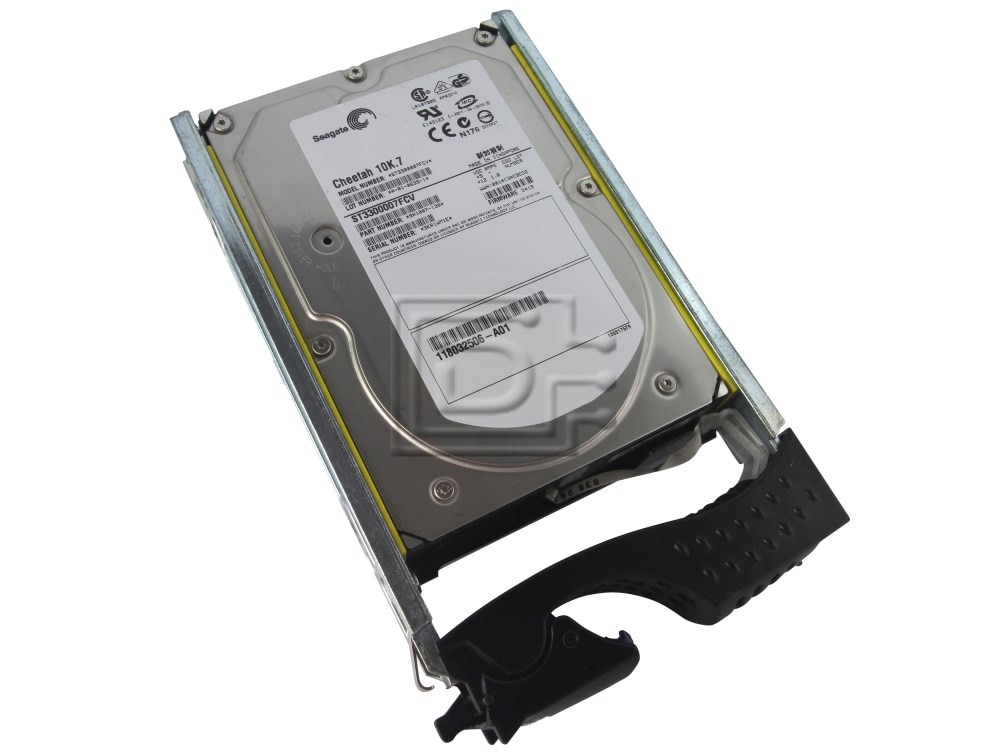

EMC CLARRiiON CX-2G10-300 300GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive (drive & tray) - Refurbished

The EMC CLARiiON CX-2G10-300 is a 2Gb/sec 300GB 10,000 rpm Fibre Channel Drive and is used to add additional storage capacity to your existing EMC CLARiiON CX series storage array.

P/N: 005048564 005045382 005048633


This drive is compatible with the EMC CLARiiON CX series storage arrays.

Model NumberCX-2G10-300
InterfaceFiber Channel 2.0Gb/s
Capacity300 GB
Height (max)26.1 mm  (1.028 inches)
Width (max)101.6 mm  (4.000 inches)
Length (max)146.99 mm  (5.787 inches)
Weight (typical)635 grams  (1.40 pounds)
Spindle Speed10,000 rpm
Average latency3 msec
Random read seek time4.5 msec
Random write seek time5.0 msec

Alternate MPNs: 005048564 005045382 005048633

Weight: 3 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
