EMC Unity D3FC-VS12FX-200 / D3-VS12FX-200 / 005051577 / 005051581 200GB SAS WI 520 SSD

EMC Part #/MPN: D3FC-VS12FX-200

DiscTech Item #: EMC-D3FC-VS12FX-200-BN-OE


Enterprise Grade

Capacity: 200GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1100/765

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Compatible Systems: Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

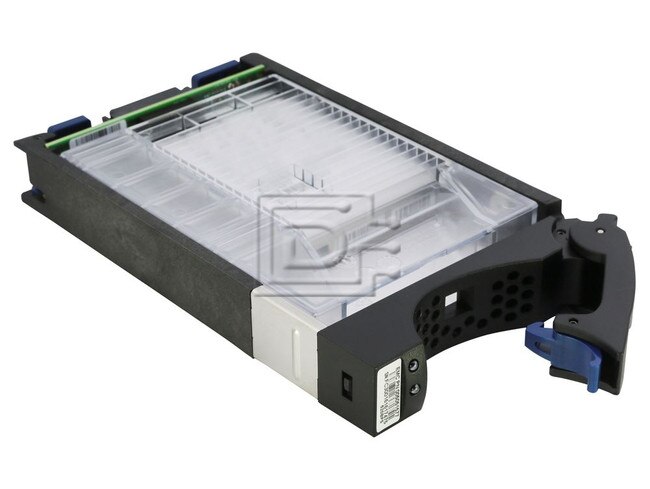

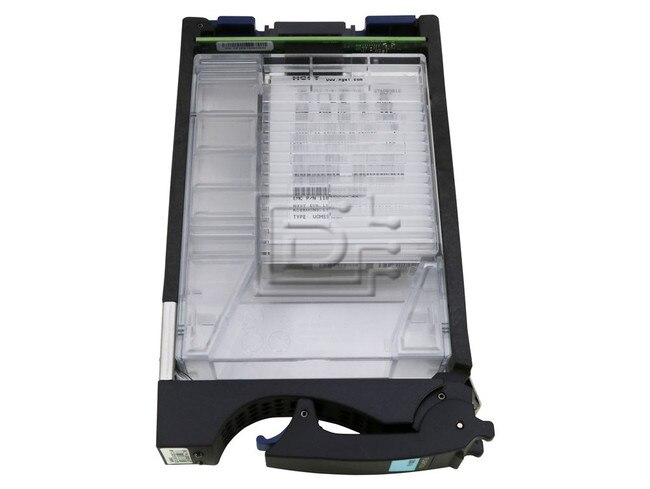

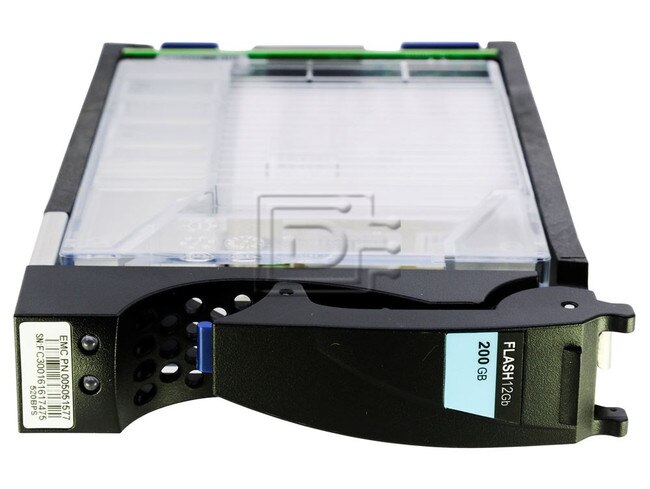

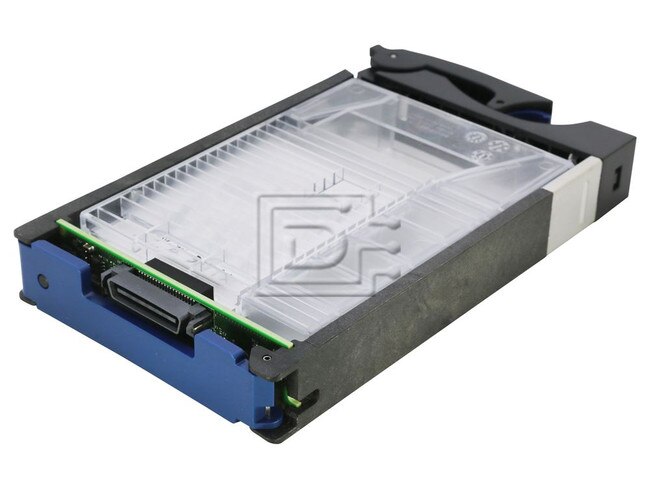

EMC Unity D3FC-VS12FX-200 / D3-VS12FX-200 / 005051577 / 005051581 / 118033289-02 HGST 0B32072 200GB 3.5" 12Gbps 520 SAS Write Intensive Solid State Drive w/ 520BPS Tray - Brand New

EMC Unity D3FC-VS12FX-200 / D3-VS12FX-200 / 005051577 / 005051581 / 118033289-02 HGST Ultrastar SSD800MH.B HUSMH8020BSS204 / 0B32072 200GB 3.5" 12Gbps 520 SAS WI / Write Intensive 25 DWPD SSD / Solid State Drive w/ 520BPS Tray - Brand New

Ultrastar SSD800MMH.B

Maximum Performance, Reliability and Endurance
The Ultrastar SSD800MH.B delivers high sequential throughput, up to 1100MB/s read and 765MB/s write (12Gb/s SAS). It also delivers up to 130,000 read and 110,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD800MH.B family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.
The Ultrastar SSD800MH.B family combines enterprise-grade MLC NAND Flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance and sustained performance over the life of the SSD. The Ultrastar SSD800MH.B family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hour meantime-between-failure (MTBF). The 800GB capacity model endures up to 36.5 Petabytes (PB) of random writes over the life of the drive—the equivalent of writing 20 Terabytes (TB) per day for five years

HGST Enterprise Storage ExperienceHGST leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar® SSD800MH.B solid-state drive (SSD) family. The synergistic relationship between HGST’s throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.

HGST Quality and Service
HGST’s Ultrastar SSD800MH.B family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs.


  • MLC NAND Flash for ultra-high performance and endurance
  • Mainstream endurance 25DW/D for 5 years
  • Best IOPS/Watt for reduced TCO
  • 12Gb/s SAS interface for maximum throughput
  • Advanced power loss data management technology
  • Self-encrypting models conform to TCG’s Enterprise specification


Applications / Environments

  • Ultra-high performance tier-0 enterprise storage
  • Enterprise-class servers and high performance computing
  • Space and/or power constrained environments
  • Online Transaction Processing (OLTP)
  • Financial and e-commerce
  • Database analytics



This 3.5" SAS / SATA Kit is compatible with the following Dell EMC 15-Slot Unity Storage systems supporting 3.5" hot swappable disks including:

Unity 300Unity 400Unity 500Unity 600

EMC Unity Kit
Model NumberD3FC-VS12FX-200
Part Number005051577 / 005051581
InterfaceSAS 12Gb/s
Form factor3.5-inches
Flash memory technologyMulti Level Cell (MLC)
Sector size support520
Read throughput (max MB/s, sequential 64K)1100
Write throughput (max MB/s, sequential 64K)765
Read IOPS (max IOPS, random 4K)130,000
Write IOPS (max IOPS, random 4k)110,000
Error rate (non-recoverable, bits read)1 in 10^17
MTBF(M hours)2.5
Annual failure rate(AFR)0.35%
Availability (hrs/day x days/wk)24x7
Endurance (max PB, random write)9.1
Requirement+5 VDC (+/-5%)
+12 VDC (+/-10%)
Operating (W, typical)9.0 and 11.0
Idle, (W)2.2
Physical size
z-Height (mm)15.0
Dimensions (width x depth, mm)70.1 x 100.6
Weight (max, g)187
Environmental (operating)
Case temperature0° to 70° C
Shock (half-sine wave)1000G(0.5ms)
Vibration, random (G RMS)2.16, all axis (5 to 700 Hz)

ROHS Compliant

Alternate MPNs: 5051577 D3-VS12FX-200 005051577 005051581 118033289-02 0B32072

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New
