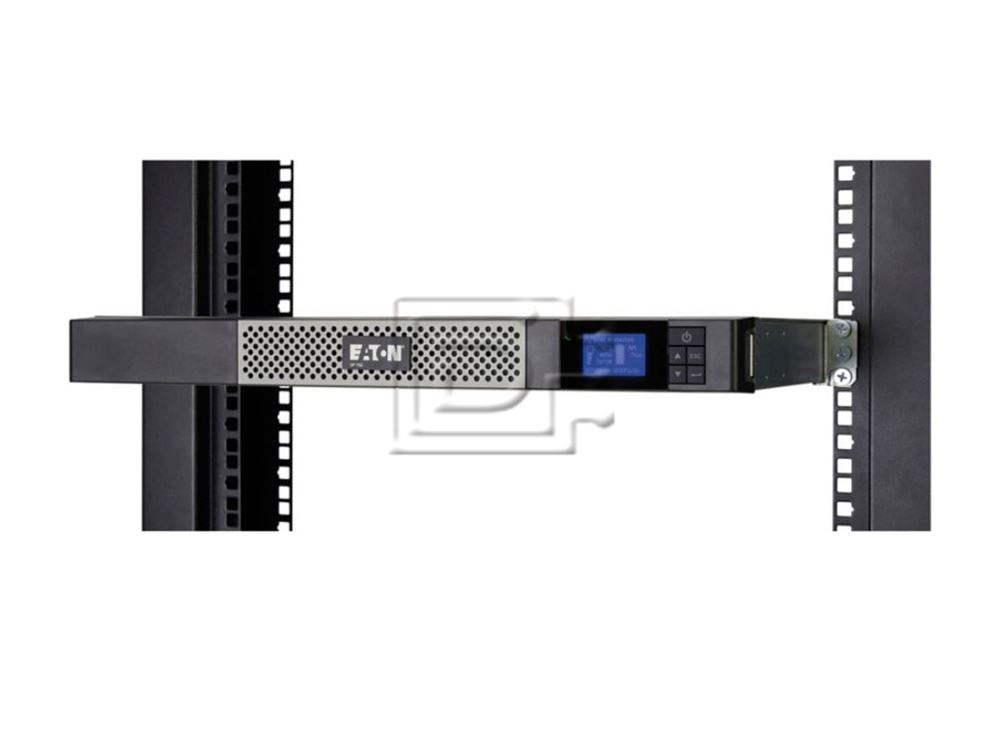

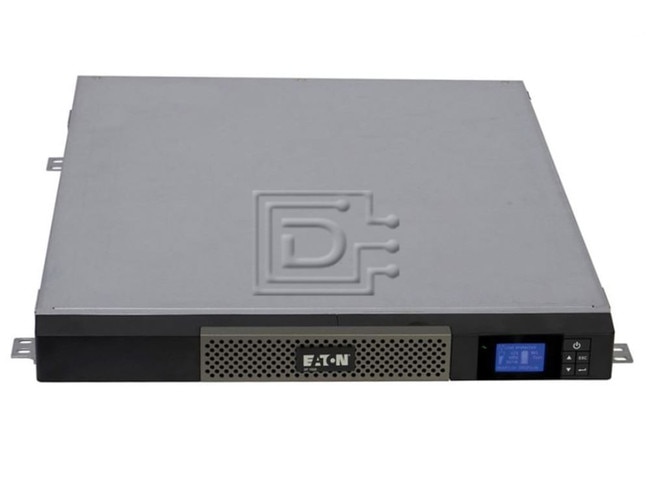

Eaton 5P 5P1550GR 1550 VA 1100 Watts AC 208V/230V 6 Outlet 1U Rack / Wall Mountable UPS
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:21Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
$895.99
| Voltage: | 220-240V |
Description
Eaton 5P 5P1550GR 1550 VA 1100 Watts AC 208V/230V 6 Outlet 1U Rack / Wall Mountable UPS - Brand New
Eaton 5P 5P1550GR 1550 VA 1100 Watts AC 208V/230V 6 Outlet 1U Rack / Wall Mountable UPS - Brand New
Eaton 5P UPS, 1U, 1550 VA, 1100 W, C14 input, Outputs: (6) C13, 230V, true sine wave, network card optional
Why the 5P?
- Remotely control On/Off the various connected devices
- Fully remotely manageable with optional, cyber-secured card
- Seamless integration with the leading virtualization platforms
- Premium protection for servers, network equipment and storage
- Compact 1U and 2U models offer a variety of footprint options to ensure a proper fit for almost any application
- Two-post, four-post, tower and wall-mount options allow for quick installation and ease of use
Specifications
| Specification | Details |
|---|---|
| Product Name | Eaton 5P UPS |
| Catalog Number | 5P1550GR |
| UPC | 743172043085 |
| Product Length/Depth | 21.8 in |
| Product Height | 1.7 in |
| Product Width | 17.4 in |
| Product Weight | 42.7 lb |
| Warranty | 3 year on electronics, 3 year on batteries with registration |
| Compliances | FCC Part 15 Class A Subpart B Sections 15.107b, 15.109b RoHS Compliant CE Marked |
| Certifications | UL 1778 UL 497A cUL Listed cULus Listed IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B |
| Specification | Details |
| Runtime Graph | View runtime graph |
| Battery Management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Battery Replacement | User replaceable |
| Battery Type | Sealed, lead-acid |
| Extended Battery Capability | None; See Eaton 5PX UPS for extended runtimes options |

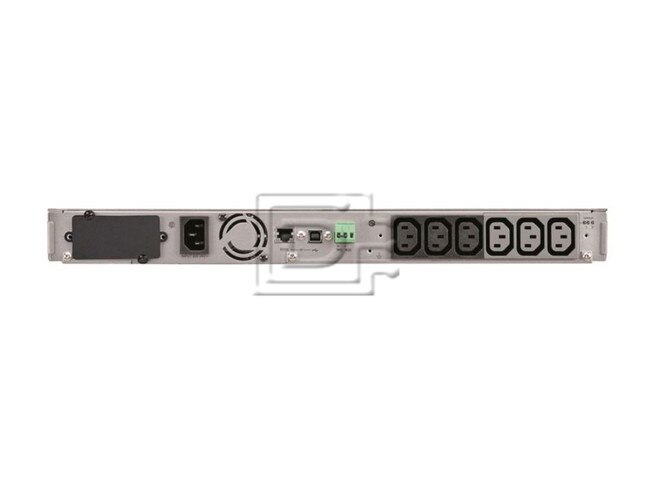

| Receptacle | (6) C13 |
| Topology | Line-interactive |
| Wattage | 1100 W |
| VA Rating | 1550 VA |
| Output Waveform | Sine wave |
| Voltage | 230V |
| Output Power Factor | 0.71 |
| Output Nominal Voltage | 230V default (200/208/220/230/240V) |
| Output Voltage Range | 184-256 Vac |
| Output Frequency | 50/60 Hz |
| Feed Type | 1 |
| Input Connection | C14 |
| Input Nominal Voltage | 230V default (200/208/220/230/240V) |
| Input Voltage Range | 160-294 V (adjustable to 150 V-294 V) |
| Nominal Frequency | 50-60 Hz |
| Input Frequency Range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
| Input Power Factor | 1 |
| Communication | RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
| Expansion Slots | One slot; Gigabit Network Card (Network-M2) is optional |
| Software Compatibility | Eaton Intelligent Power Manager |

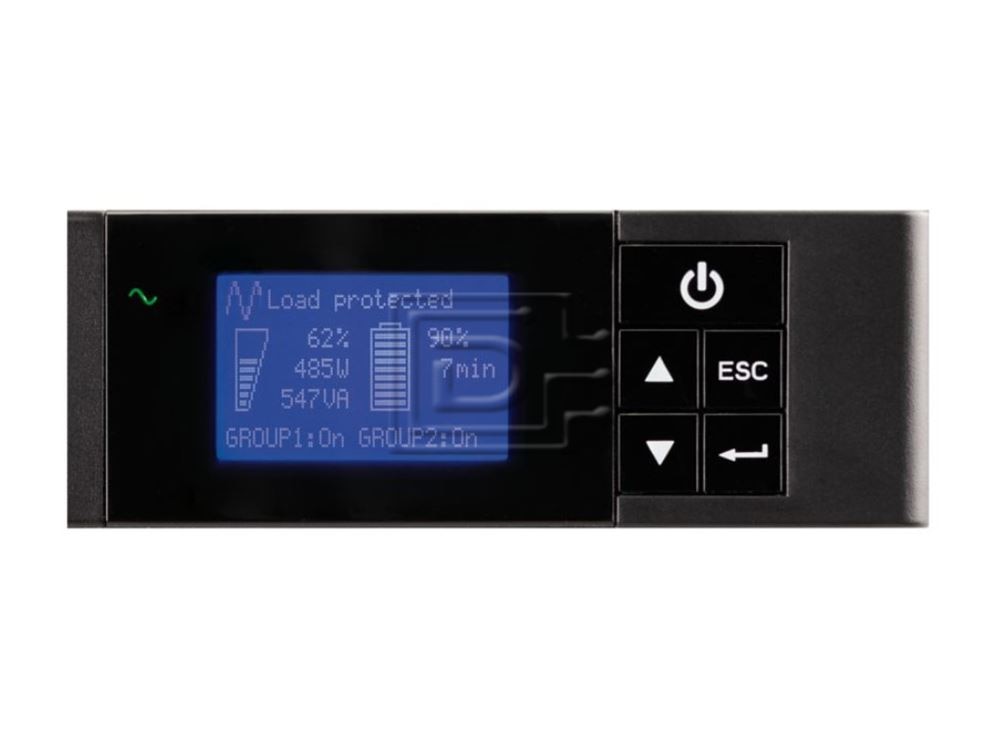

| User Interface | LCD graphical display |
| SPECIAL FEATURES | ROO/RPO: Rear terminal block connector for remote on/off and power off |
| FORM FACTOR | Rack |
| RACK SIZE | 1U |
| EFFICIENCY AT MAX Load | 98% |
Click here to view the manufacturer's item description/brochure
Weight: 106 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
